8060SRC20.01

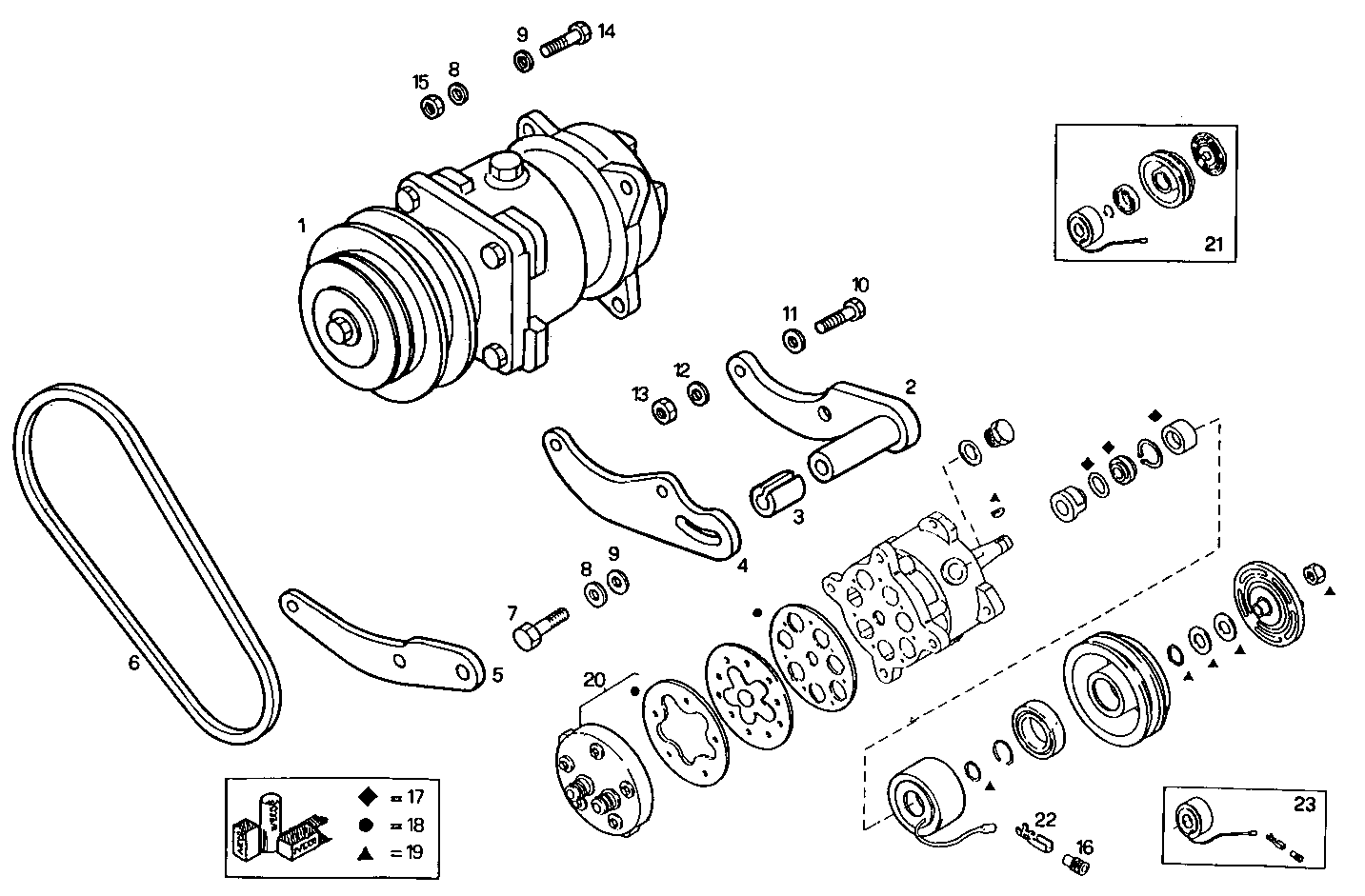

A81000001 CONDITIONING COMPRESSOR
| Item | Part number | Description |
|---|---|---|
| 1 | 98462948 | AIR COND.COMPRESS. |
| 2 | 9843876 | SUPPORT |
| 3 | 98433179 | SPACING BAR |
| 4 | 4835674 | RETAINER |
| 5 | 4835675 | RETAINER |
| 6 | 98465813 | V-BELT L=975 MM |
| 7 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 17095104 | WASHER Ø10X21X2 MM |
| 10 | 15502321 | SCREW |
| 11 | 17095304 | WASHER Ø12X24 MM |
| 12 | 17091074 | WASHER Ø12X24X2,8 MM |
| 13 | 17038621 | NUT M12 |
| 14 | 11307024 | SCREW M10X1,25X40 MM |
| 15 | 17038221 | HEXAGON NUT M10 |
| 16 | 4861936 | RUBBER BUSH YELLOW |
| 17 | 93161547 | KIT-SEAL.GASKETS |
| 18 | 93161548 | KIT-SEAL.GASKETS |
| 19 | 93161549 | KIT-AIR CONDITION |
| 20 | 93192364 | HEADPIECE |
| 21 | 93192365 | SOLENOID ASSY |
| 22 | 98435370 | TERMINAL SEZ 0,5-1,5 MMQ |
| 23 | 93192576 | SOLENOID |
