8060SRC21.10

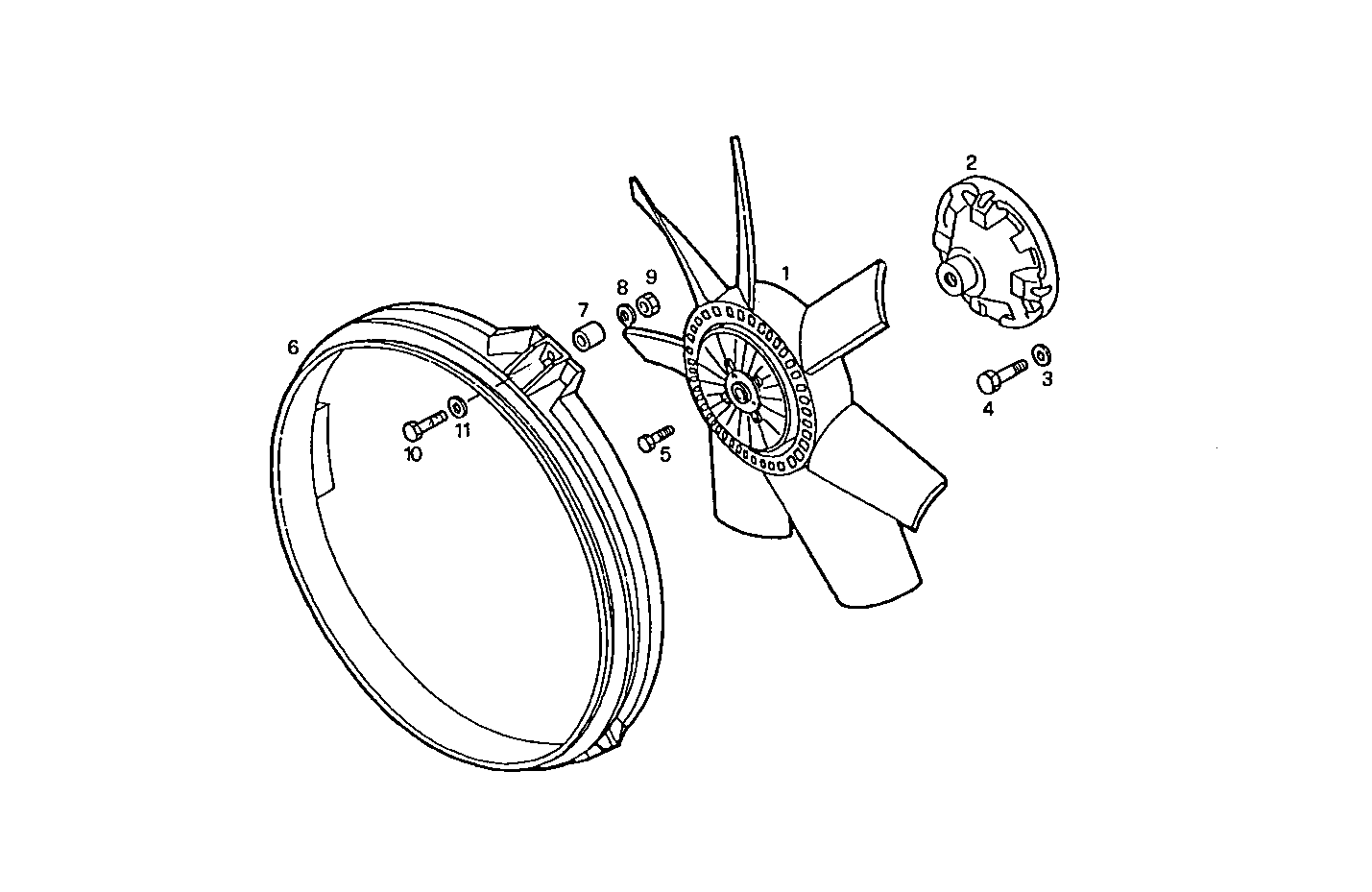

A08100001 VISCOSTATIC PULLER FAN - on water pump
| Item | Part number | Description |
|---|---|---|
| 1 | 98468660 | BLOWER Ø530 MM 7 BLADES |
| 2 | 98419726 | HUB |
| 3 | 17094914 | WASHER 8x16 |
| 4 | 16043721 | HEXAGON BOLT M8X28 MM |
| 5 | 4779122 | HEXAGON BOLT |
| 6 | 98425330 | AIR HOOD Ø530 MM |
| 7 | 4800841 | SPACING BAR |
| 8 | 12647104 | WASHER |
| 9 | 17038531 | HEXAGON NUT M12X1,5 |
| 10 | 16605924 | SCREW M8X40 MM |
| 11 | 17089574 | WASHER Ø8X16 MM |
