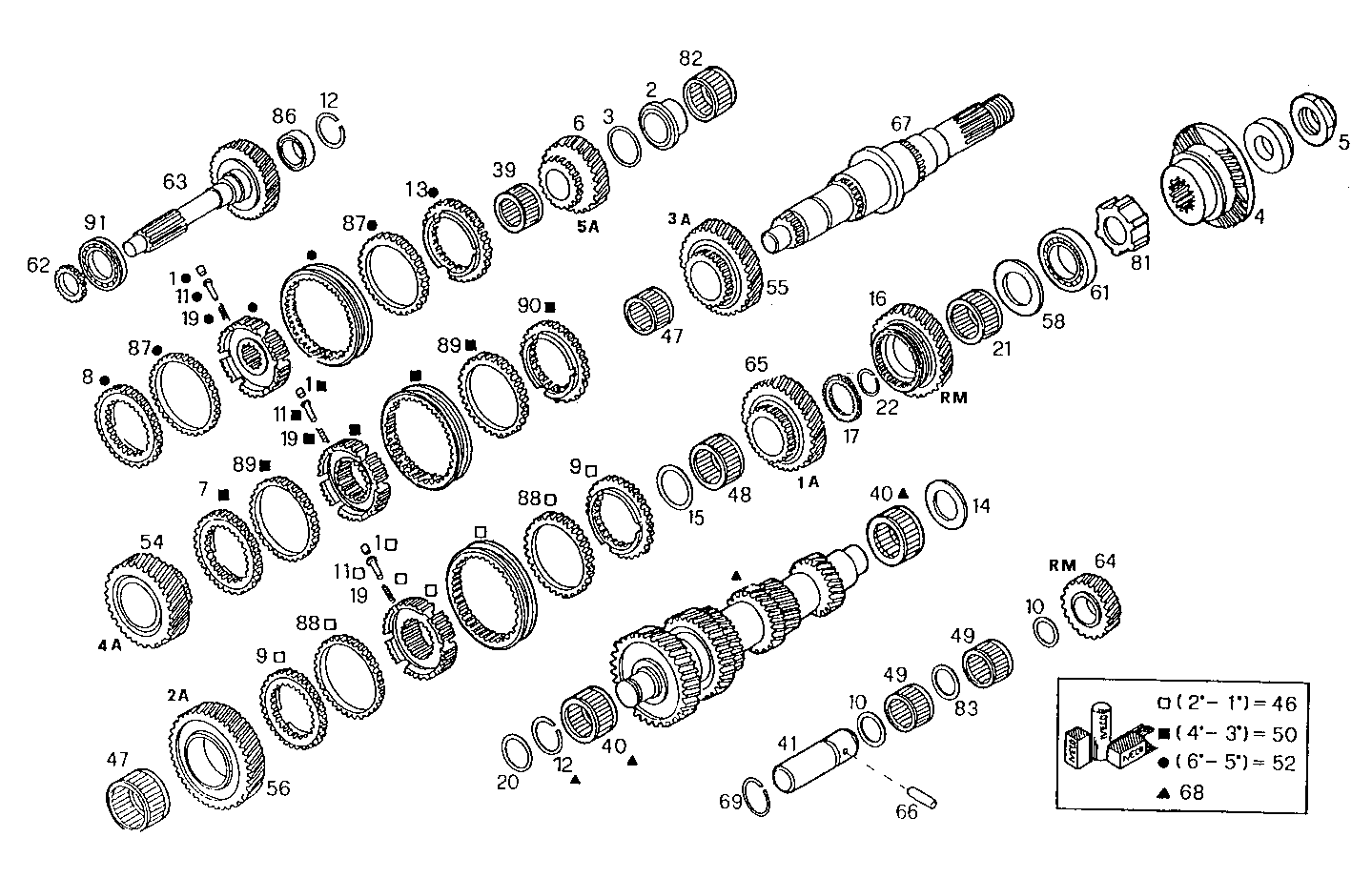

| Item |
Part number |
Description |
|
1 |
8856938 |
PARALLEL ROLLER |
|
2 |
8869115 |
PLUG-IN SLEEVE |
|
3 |
8859309 |
SET OF SHIMS KIT |
|
4 |
8859400 |
SHIFT SLEEVE |
|
5 |
8860553 |
HEXAGON NUT |
|
6 |
8859353 |
SPLITTER GEAR 5TH SPEED |
|
7 |
8861583 |
SYNCHRONIZER |
|
8 |
8861640 |
SYNCHRONIZER Ø40X80 MM SP=32 MM |
|
9 |
8860499 |
SYNCHRONIZER |
|
10 |
8860343 |
STOP WASHER |
|
11 |
8860354 |
CONTROL PISTON |
|
12 |
8860774 |
SHIM KIT |
|
13 |
8861580 |
SYNCHRONIZER |
|
14 |
8862210 |
SPACING BAR |
|
15 |
8861702 |
SET OF SHIMS SP=2,95-3,15 MM |
|
16 |
8859465 |
REVERSE GEAR 1ST SPEED |
|
17 |
8859469 |
GEAR BOX HUB |
|
19 |
8860357 |
SPRING |
|
20 |
8861871 |
SET OF SHIMS SP=2,5-3,8 MM |
|
21 |
1905253 |
ROLLER CAGE Ø60X68 MM SP=34 MM |
|
22 |
8860775 |
REVERSE GEAR |
|
39 |
1905264 |
ROLLER CAGE Ø46X54 MM SP=33 MM |
|
40 |
1905261 |
DRIVE BEARING |
|
41 |
8861569 |
RETURN SHAFT REVERSE |
|
46 |
8860511 |
KIT-SYNCHRONIZER |
|
47 |
1905263 |
ROLLER CAGE Ø72X80 MM SP=40 MM |
|
48 |
1905262 |
ROLLER CAGE Ø74X66 MM SP=35,8 MM |
|
49 |
1905254 |
ROLLER CAGE Ø60X68 MM SP=34 MM |
|
50 |
8859905 |
KIT-SYNCHRONIZER 4TH SPEED |
|
52 |
8861647 |
KIT-SYNCHRONIZER Ø40X80 MM SP=32 MM |
|
54 |
8863093 |
SPLITTER GEAR 4TH SPEED |
|
55 |
8863092 |
SPLITTER GEAR 3RD SPEED |
|
56 |
8863091 |
SPLITTER GEAR 2ND SPEED |
|
58 |
8859502 |
STOP WASHER |
|
61 |
1905260 |
DRIVE BEARING Ø50X110X27 MM |
|
62 |
8863079 |
FASTENING RING |
|
63 |
8863078 |
INPUT SHAFT 5TH SPEED |
|
64 |
8859095 |
REVERSE GEAR Ø40X80 MM SP=32 MM |
|
65 |
8859466 |
SPLITTER GEAR 1ST SPEED |
|
66 |
17259070 |
DOWEL PIN |
|
67 |
8869117 |
MAIN SHAFT ASSY |
|
68 |
99808066 |
COUNTERSHAFT ASSY |
|
69 |
17282481 |
O-RING Ø26,64 MM SP=2,62 MM |
|
81 |
8859221 |
WORM |
|
82 |
1905241 |
ROLLER CAGE Ø74X66 MM SP=36 MM |
|
83 |
8862479 |
SPACING BAR |
|
86 |
1905271 |
ROLLER CAGE Ø28X48 MM SP=31 MM |
|
87 |
8867446 |
SYNCHRONIZER |
|
88 |
8867115 |
SYNCHRONIZER 2ND SPEED |
|
89 |
8867447 |
SYNCHRONIZER 4TH SPEED |
|
91 |
1905397 |
GEARBOX BEARINGS Ø65X120 MM SP=23 MM |
