8060SRC21.20

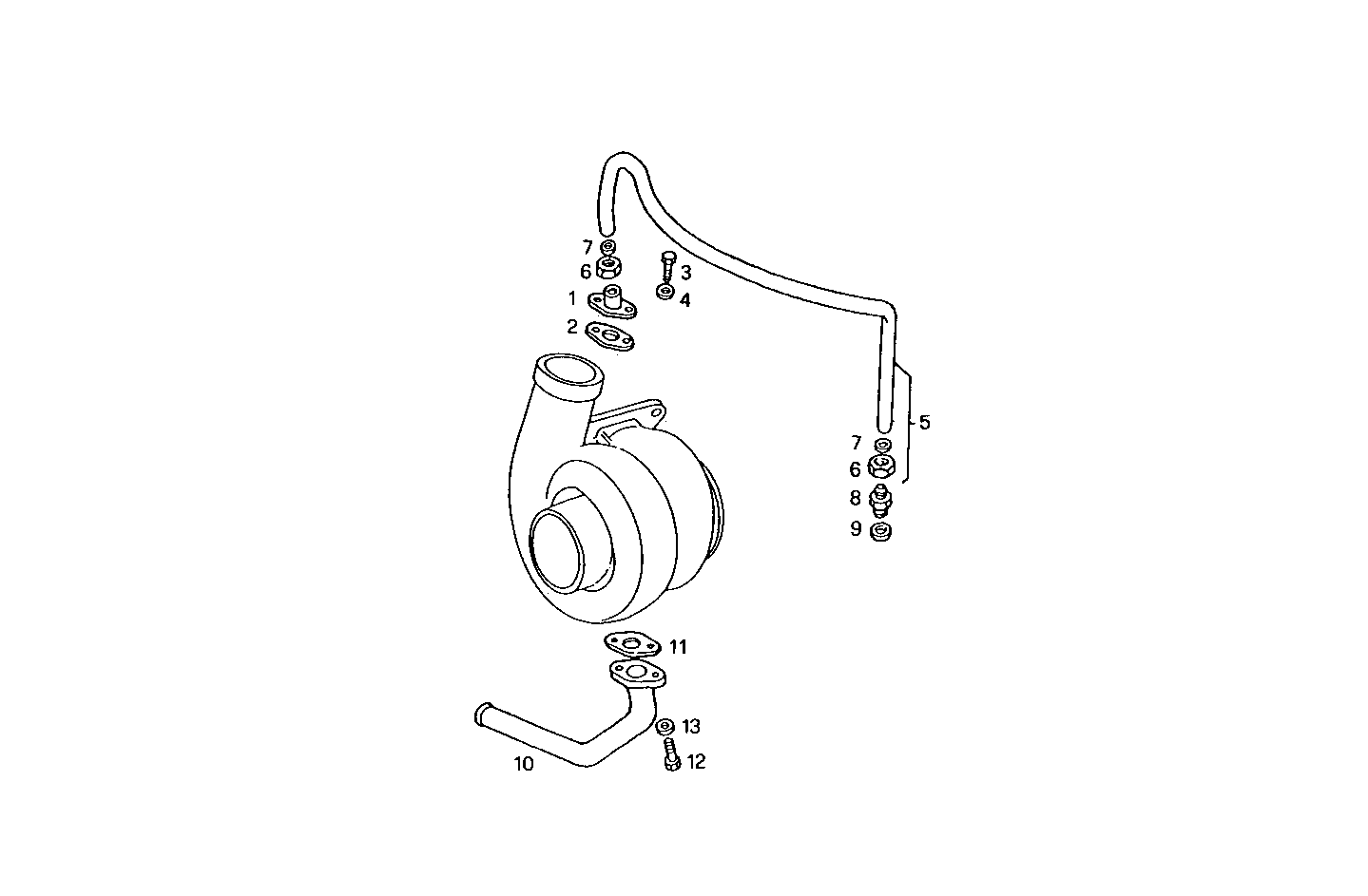

2400.137/02 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 4764795 | THREADED UNION |
| 2 | 98415922 | FLAT ENGINE GASKET |
| 3 | 16043524 | SCREW M8X22 MM |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 4848514 | OIL LINE ASSY |
| 6 | 16506911 | NUT M18X1,5 |
| 7 | 16507611 | WASHER Ø12 MM |
| 8 | 16500311 | PIPE SOCKET M16X1,5/M18X1,5 |
| 9 | 16508260 | WASHER Ø16X20 MM |
| 10 | 97496004 | OIL LINE ASSY |
| 11 | 98415923 | FLAT ENGINE GASKET |
| 12 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 13 | 17089574 | WASHER Ø8X16 MM |
