8060SRC22.10

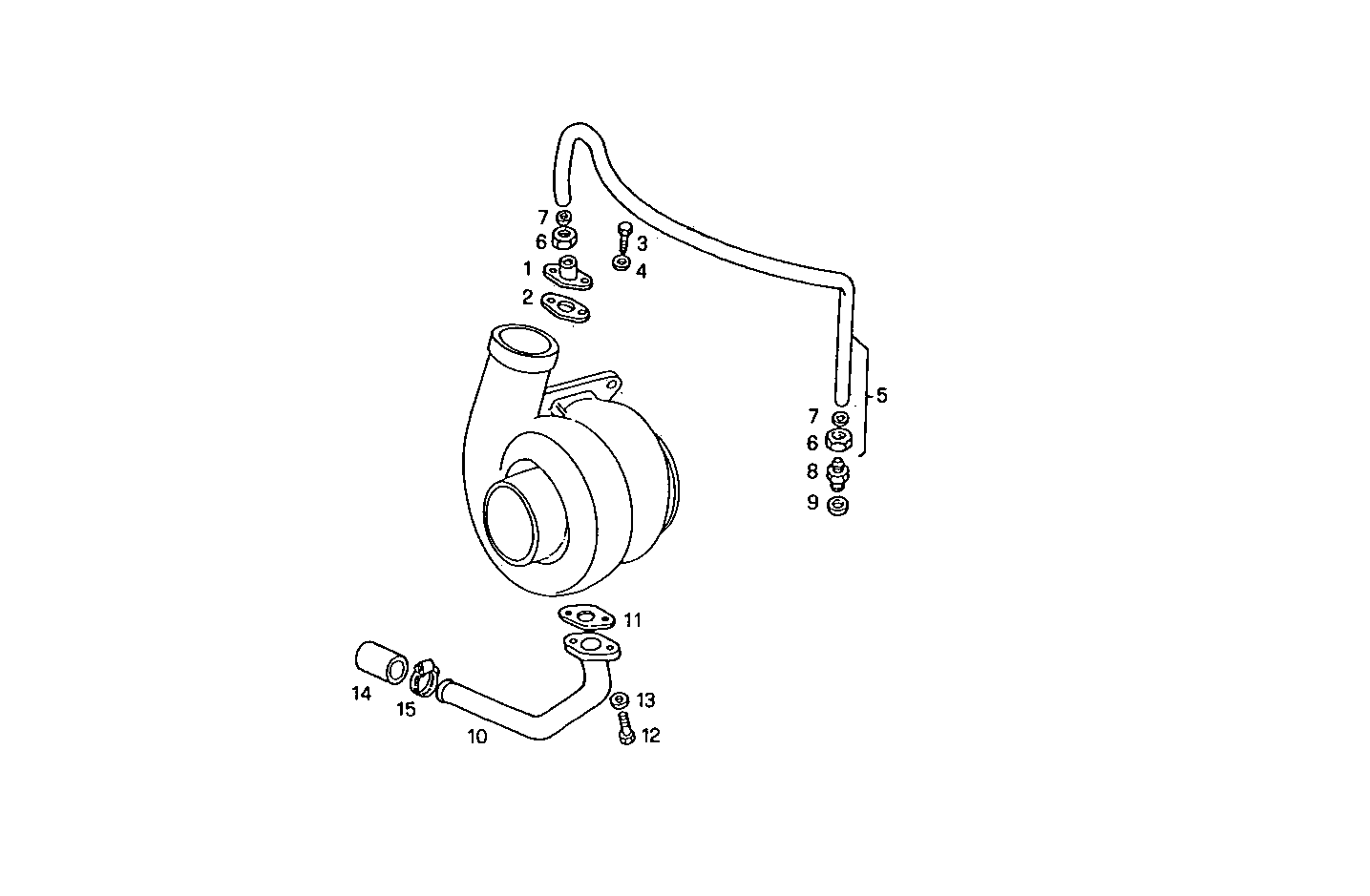

2420.111/02 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4764795 | THREADED UNION |
| 2 | 98415922 | FLAT ENGINE GASKET |
| 3 | 16043521 | SCREW M8X22 |
| 4 | 17089474 | SPRING WASHER �8X16 MM SP=1,4 MM |
| 5 | 4848514 | OIL LINE ASSY |
| 6 | 16506911 | NUT M18X1,5 |
| 7 | 16507611 | WASHER �12 MM |
| 8 | 16500311 | PIPE SOCKET M16X1,5/M18X1,5 |
| 9 | 16508260 | WASHER �16X20 MM |
| 10 | 4848517 | OIL LINE |
| 11 | 98415923 | FLAT ENGINE GASKET |
| 12 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 13 | 17089574 | WASHER �8X16 MM |
| 14 | 98425459 | RUBBER SLEEVE �22 MM |
| 15 | 17764592 | CLIP �20/32 MM |
