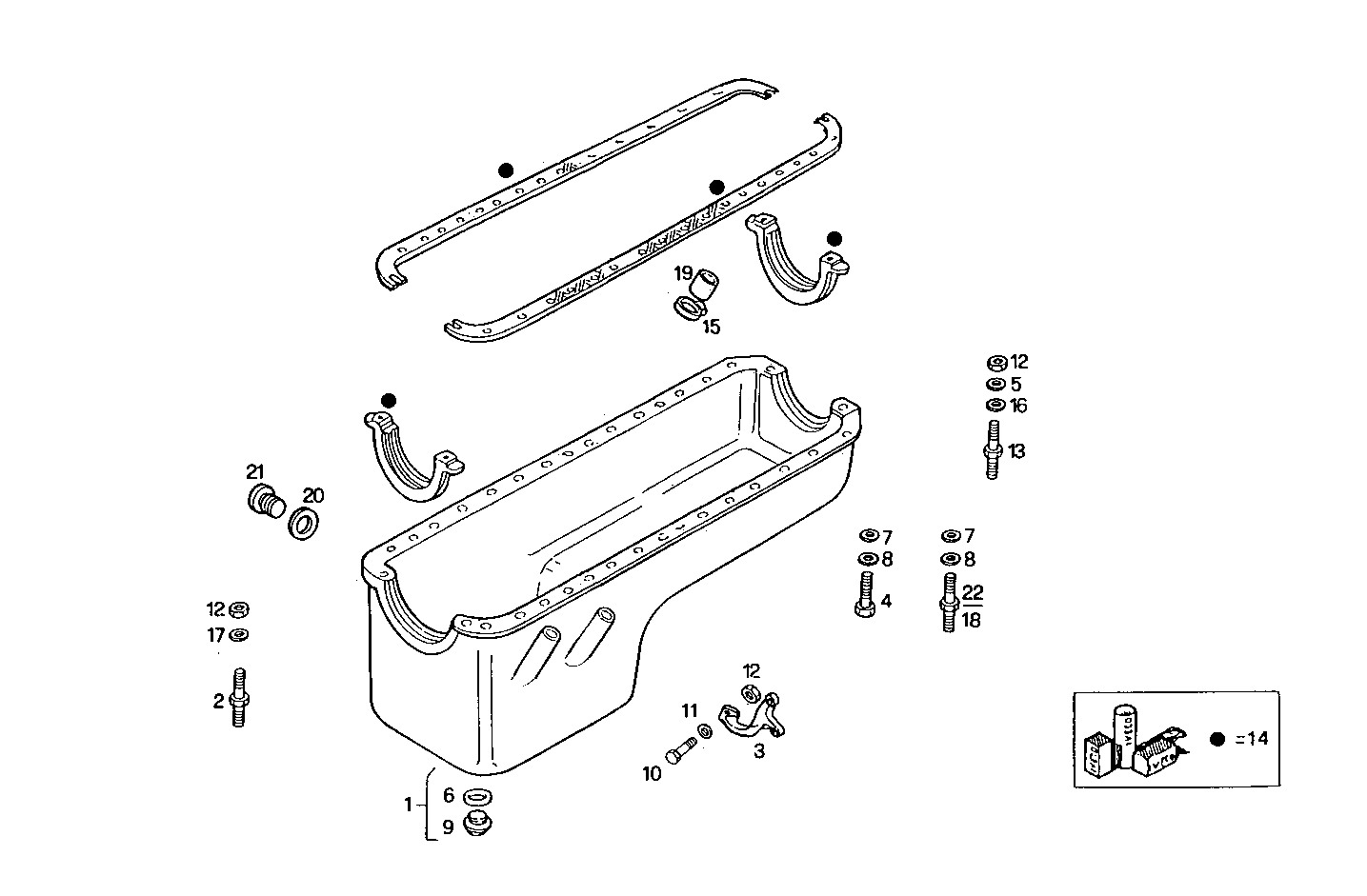

| Item |
Part number |
Description |
|
1 |
4848303 |
OIL SUMP ASSY |
|
2 |
98424203 |
HEXAGON BOLT M10X1,25X42 |
|
3 |
98425848 |
RETAINER |
|
4 |
10923024 |
HEXAGON BOLT M10X1,25X20 MM |
|
5 |
10516679 |
WASHER Ø8X14,8X2 MM |
|
6 |
17282180 |
O-RING Ø21,8 MM SP=2,6 MM |
|
7 |
17095014 |
WASHER Ø10X18 MM |
|
8 |
10516879 |
WASHER Ø10X18X2 MM |
|
9 |
4847102 |
THREADED PLUG |
|
10 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
11 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
12 |
17037931 |
HEXAGON NUT M8X1,25 |
|
13 |
98474195 |
STUD M10X1,25 - M8X37,5 MM |
|
14 |
1907811 |
KIT-OILSUMP GASKET |
|
15 |
17764792 |
HOSE CLIP Ø32-50 MM |
|
16 |
17094914 |
WASHER 8x16 |
|
17 |
98415215 |
WASHER Ø10X20X2,3 MM |
|
18 |
98457751 |
STUD M10X1,25 - M8X61,5 MM |
|
19 |
4849356 |
PLUG |
|
20 |
10296160 |
SEAL GASKET Ø12X18 MM SP=1 MM |
|
21 |
11903211 |
LOCK PLUG M12X1,25 |
|
22 |
98457750 |
STUD M10X1,25 - M8X86,5 MM |
