8060SRC22.11

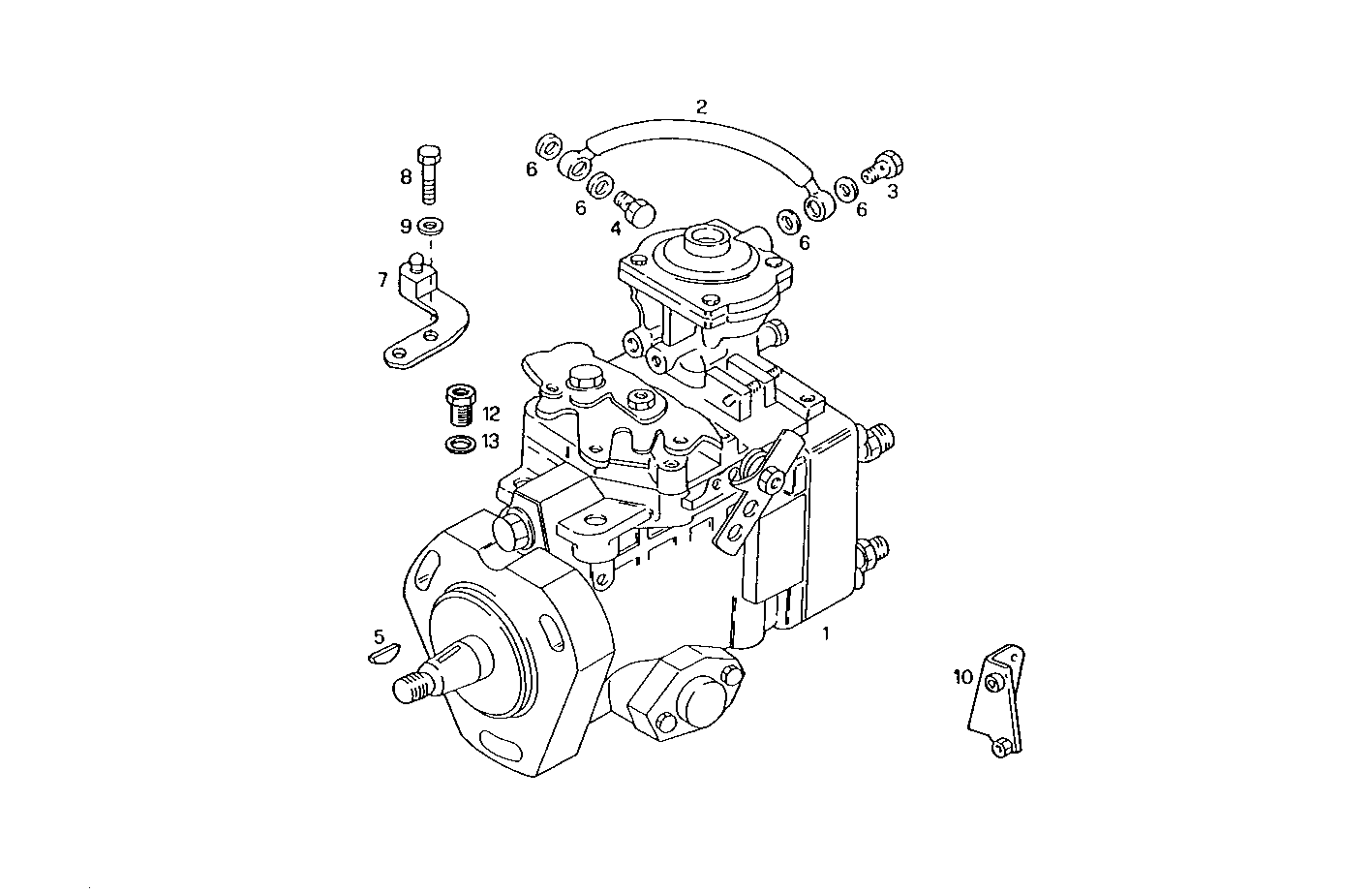

1400.243 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 98488691 | DISTRIB.INJ.PUMP ASSY |
| 2 | 4848476 | FUEL LINE |
| 3 | 4753761 | SCREW CONNECTOR |
| 4 | 4833907 | SCREW CONNECTOR |
| 5 | 10205820 | KEY 4X6,5 MM |
| 6 | 10262760 | SEAL GASKET Ø8,2 MM |
| 7 | 98445678 | LEVER |
| 8 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 9 | 17798174 | SPRING WASHER Ø6,1X11,8 MM |
| 10 | 98481249 | RETAINER |
| 12 | 4802434 | THREADED UNION M12X1,5 |
| 13 | 99489017 | SEAL GASKET Ø12X20 MM SP=1,5 MM |
