8060SRC22.11

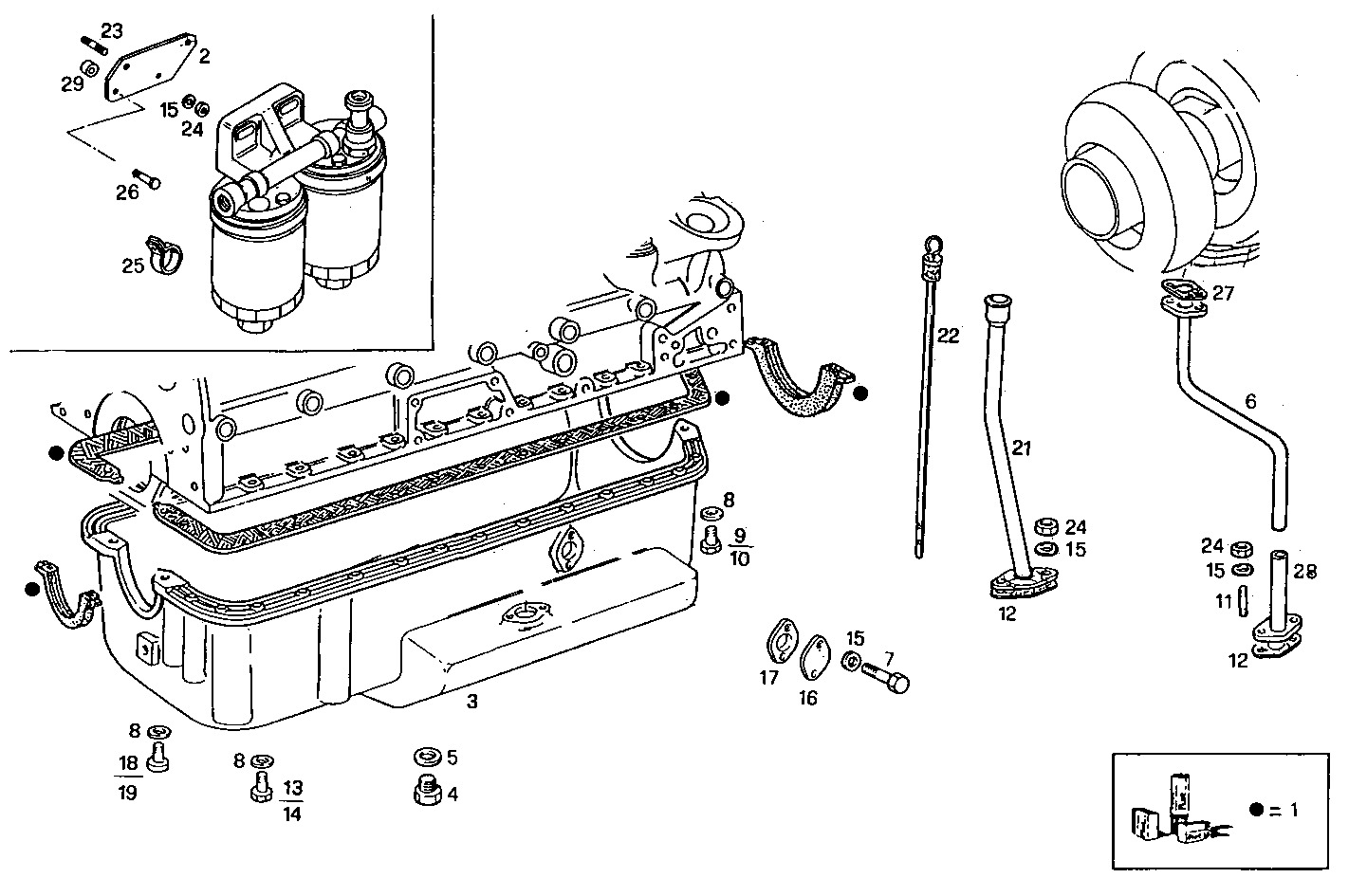

A01010008/01 OIL SUMP - max longitudinal inclination 17°

Iveco/FPT OIL SUMP

Item Part number Description
1 1907561 KIT-OILSUMP GASKET
2 8014733 RETAINER
3 8018048 OIL SUMP ASSY
4 16992411 THREADED PLUG M16X1,5
5 4858609 WASHER Ø16X22 MM SP=1,5 MM
6 8016390 OIL LINE
7 16605424 SCREW M8X16 MM (8.8)
8 17095004 WASHER Ø10X18X2 MM
9 10923621 HEXAGON BOLT M10X1,25X35 MM
10 99475400 SCREW M10X1,25X50
11 16744621 STUD
12 98418621 GASKET
13 14308121 SOCKET-HEAD SCREW
14 99475402 SCREW M10X1,25X70
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 4798805 COVER
17 98482697 GASKET
18 99475403 SCREW M10X1,25X130
19 99475401 SCREW M10X1,25X60
20 8100228 CLIP
21 8106663 OIL LINE
22 8104382 OIL DIPSTICK
23 16746624 STUD M8X20 MM (8.8)
24 17037931 HEXAGON NUT M8X1,25
25 17316390 CLIP
26 16607924 HEXAGON BOLT M10X1,5X40 MM
27 98415923 FLAT ENGINE GASKET
28 8016389 OIL LINE
29 8109399 SPACING BAR
