8060SRC22.11

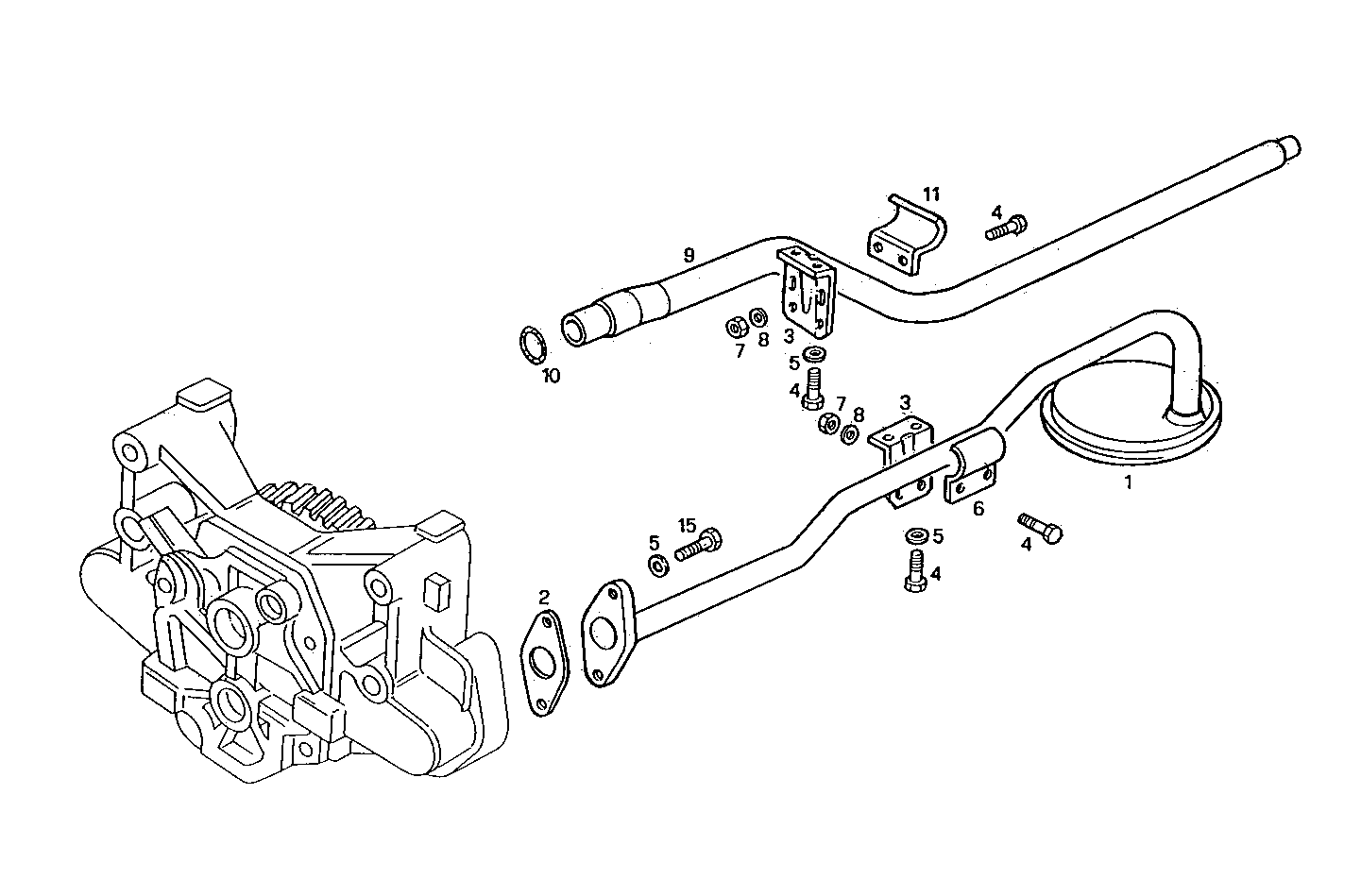

A01010008/02 OIL SUMP - max longitudinal inclination 17°
| Item | Part number | Description |
|---|---|---|
| 1 | 98465155 | SUCTION STRAINER |
| 2 | 4852561 | FLAT ENGINE GASKET |
| 3 | 4775923 | FASTENING BRACKET |
| 4 | 16605424 | SCREW M8X16 MM (8.8) |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 98470418 | RETAINER |
| 7 | 17157021 | NUT M8X1,25 |
| 8 | 17094914 | WASHER 8x16 |
| 9 | 4817902 | OIL LINE |
| 10 | 17282181 | O-RING Ø21,8 MM SP=2,6 MM |
| 11 | 4777690 | CLIP |
