8060SRC22.11

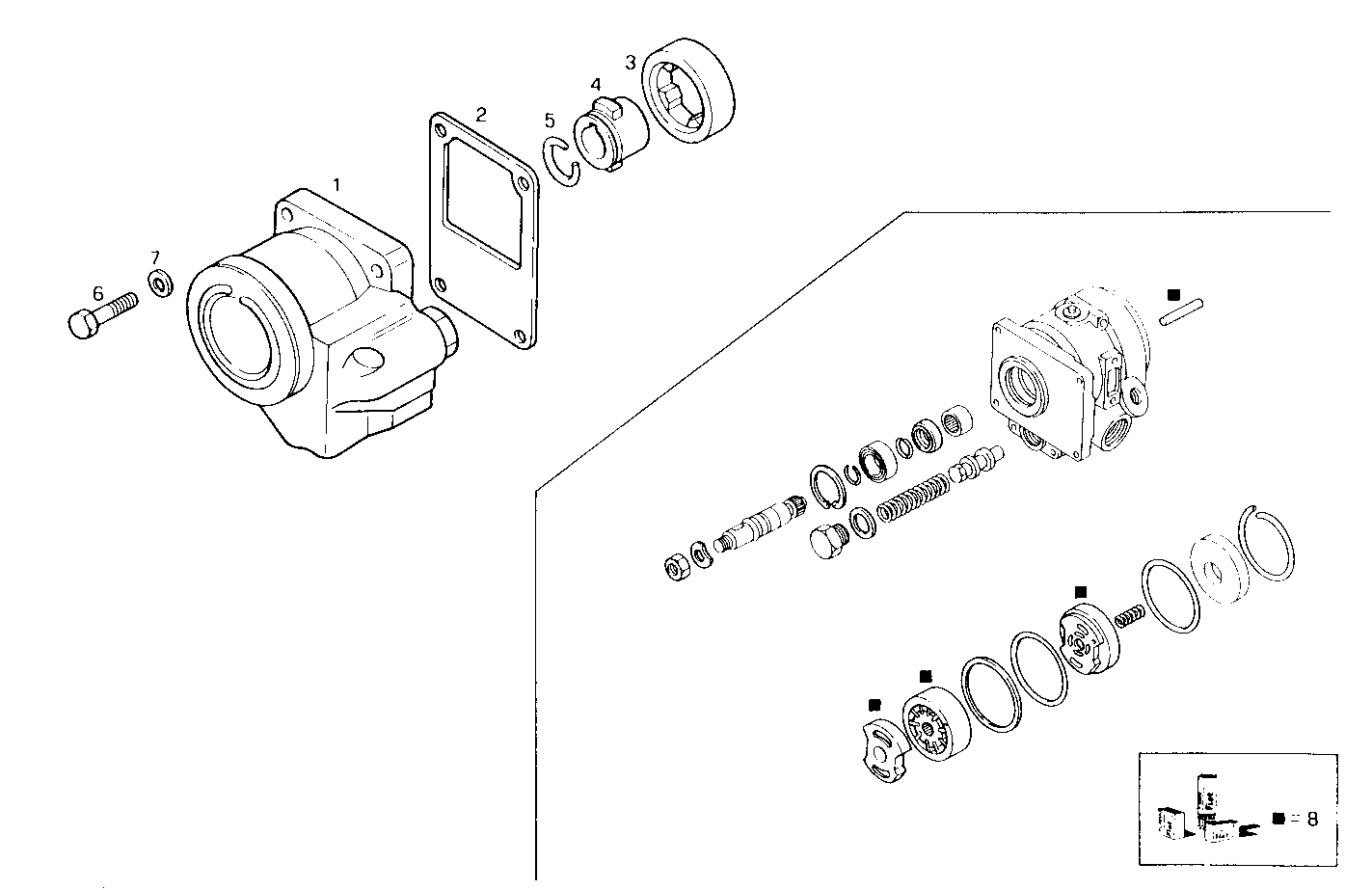

A09150001 HYDRAULIC PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 4853321 | HYDRAULIC PUMP ASSY |
| 2 | 500378759 | FLAT ENGINE GASKET ASSY |
| 3 | 4621358 | RING |
| 4 | 4630543 | HUB |
| 5 | 17082776 | SPRING LOCKWASHER Ø23,7 MM |
| 6 | 16603824 | SCREW M6X25 |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 93161396 | KIT-HYDROST.PUMP |
