8060SRC22.20

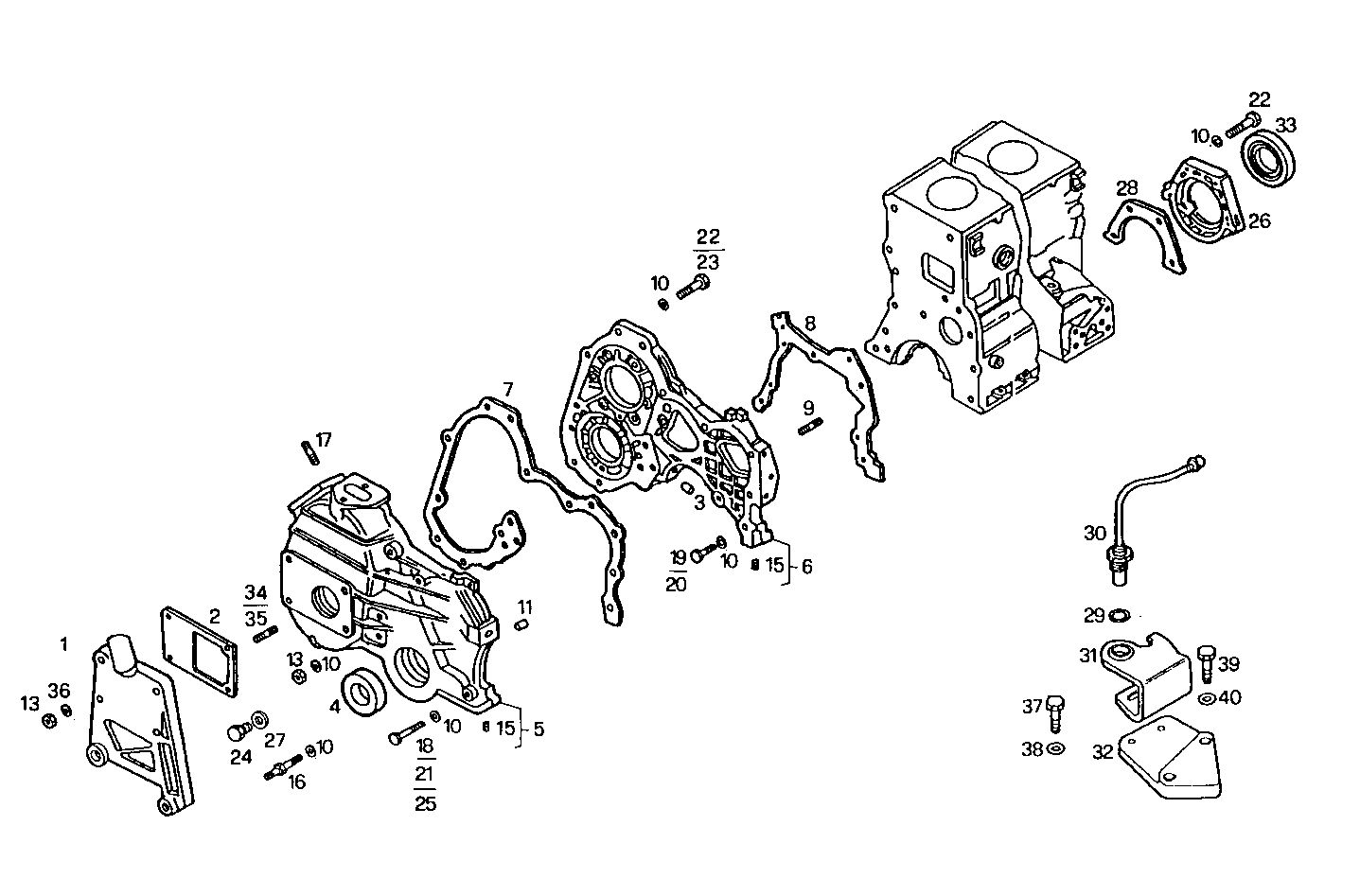

0430.122 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 500372866 COVER
2 500388720 GASKET
3 4605220 OIL NOZZLE
4 99469265 SHAFT SEAL CORCOS
5 500373219 FRONT C.CASE COVER ASSY
6 500321670 TIMINGGEAR HOUSIN ASSY REAR
7 98424045 FLAT ENGINE GASKET
8 98424046 FLAT ENGINE GASKET
9 16746824 STUD M8X30 MM (8.8)
10 17094904 WASHER Ø8X16X1,6 MM
11 17275410 DOWEL PIN Ø8 MM
13 17037931 HEXAGON NUT M8X1,25
15 13526170 THREADED INSERT M10X1,25X20 MM
16 4848315 HEXAGON BOLT L=79 MM
17 16729324 STUD M8X12X20 MM
18 16044924 SCREW M8X1,25X85 MM
19 16605734 HEXAGON BOLT M8X30 MM
20 16043524 SCREW M8X22 MM
21 16606124 HEXAGON BOLT M8X50 MM
22 16605824 HEXAGON BOLT M8X35 MM
23 16606524 HEXAGON BOLT M8X70 MM
24 4847769 THREADED PLUG
25 16606224 HEXAGON BOLT M8X55 MM
26 98489586 REAR C.CASE COVER
27 10257460 SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...]
28 4849994 FLAT ENGINE GASKET
29 4860432 RING
30 4861291 TRANSMITTER
31 4843857 SUPPORT
32 4854020 SUPPORT
33 99457401 SHAFT SEAL CORCOS
34 16729424 STUD M8X1,25X25
35 16729524 STUD M8X1,25X30
36 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
37 11306921 SCREW M10X1,25X30
38 17095104 WASHER Ø10X21X2 MM
39 16603624 HEXAGON BOLT M6X16 MM (8.8)
40 17088474 WASHER Ø6X12 MM
