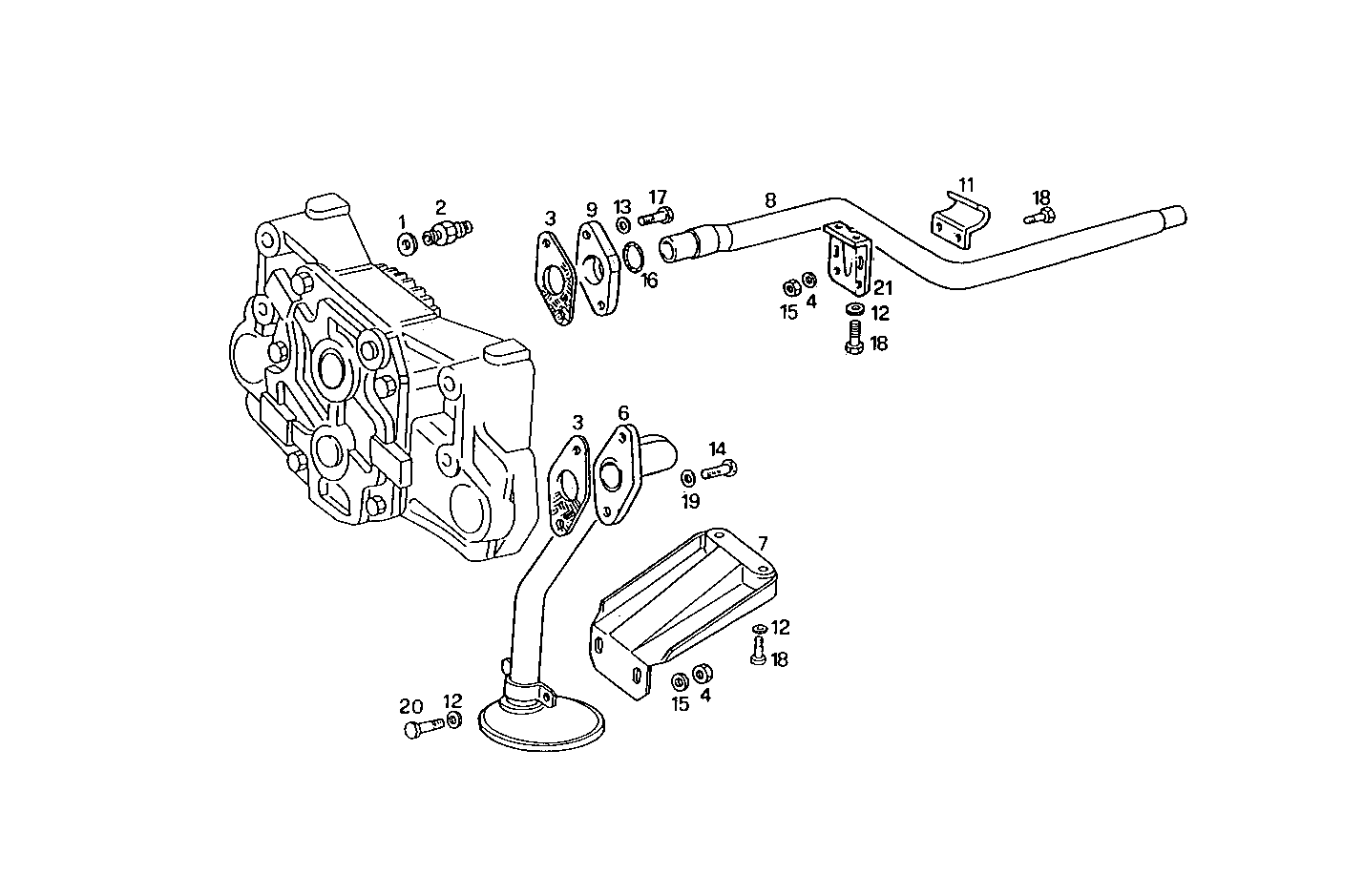

| Item |
Part number |
Description |
|
1 |
561293 |
O-RING |
|
2 |
4785501 |
SCREW CONNECTOR M10X1,25 |
|
3 |
4852561 |
FLAT ENGINE GASKET |
|
4 |
17094914 |
WASHER 8x16 |
|
6 |
97496019 |
SUCTION STRAINER |
|
7 |
4739213 |
RETAINER |
|
8 |
4807308 |
DELIVERY LINE |
|
9 |
4773265 |
FLANGED SOCKET |
|
11 |
4777690 |
CLIP |
|
12 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
13 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
14 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
15 |
17157021 |
NUT M8X1,25 |
|
16 |
17282181 |
O-RING Ø21,8 MM SP=2,6 MM |
|
17 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
18 |
16605424 |
SCREW M8X16 MM (8.8) |
|
19 |
17089471 |
SPRING WASHER Ø16X8 MM SP=1,4 MM |
|
20 |
16043524 |
SCREW M8X22 MM |
|
21 |
4775923 |
FASTENING BRACKET |
