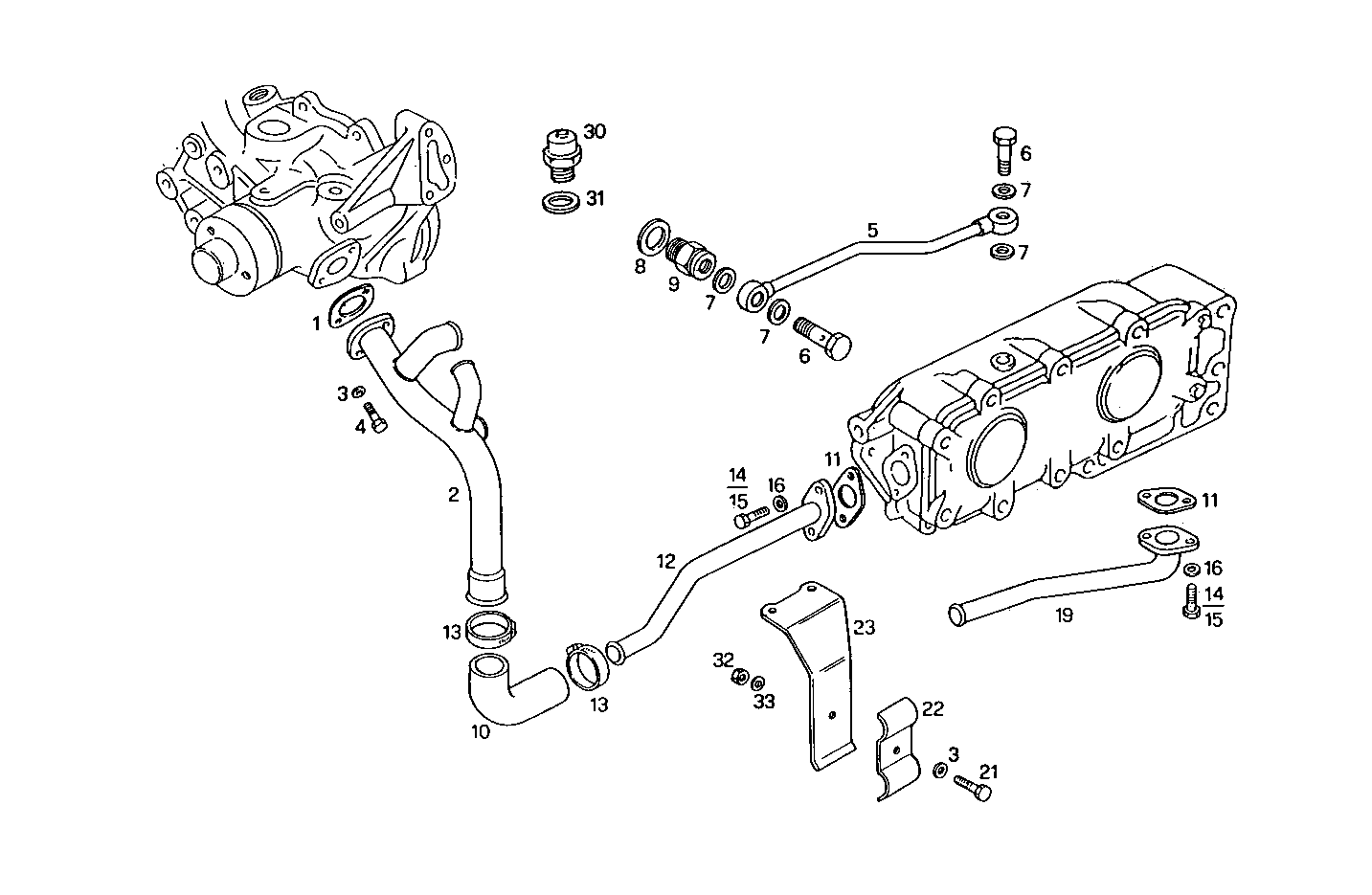

| Item |
Part number |
Description |
|
1 |
4852556 |
FLAT ENGINE GASKET |
|
2 |
97496022 |
WATER PIPE |
|
3 |
17095101 |
WASHER Ø10X18 MM |
|
4 |
98401723 |
HEXAGON BOLT M8X1,25X12 MM |
|
5 |
98445356 |
WATER PIPE |
|
6 |
4864080 |
SCREW CONNECTOR M10X1,25 |
|
7 |
4858606 |
GASKET Ø10X14X1 MM |
|
8 |
16508460 |
WASHER 22x27x1,5 |
|
9 |
98445134 |
THREADED UNION SP=7 MM |
|
10 |
97496016 |
WATER HOSE |
|
11 |
4779623 |
FLAT ENGINE GASKET |
|
12 |
97496010 |
WATER PIPE |
|
13 |
17764892 |
PIPE CLIP Ø40-60 MM |
|
14 |
16606424 |
HEXAGON BOLT M8X65 MM |
|
15 |
16043724 |
HEXAGON BOLT M8X28 MM (8.8) |
|
16 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
19 |
97496008 |
WATER PIPE |
|
21 |
15970324 |
SCREW |
|
22 |
98418962 |
PIPE CLIP |
|
23 |
4801127 |
RETAINER |
|
24 |
17094914 |
WASHER 8x16 |
|
25 |
17038221 |
HEXAGON NUT M10 |
|
30 |
98453557 |
THERMOSWITCH ASSY |
|
31 |
10280060 |
WASHER Ø14X20 MM SP=1,5 MM |
|
33 |
17090174 |
SPRING WASHER Ø10X20 MM |
