8060SRC22.20

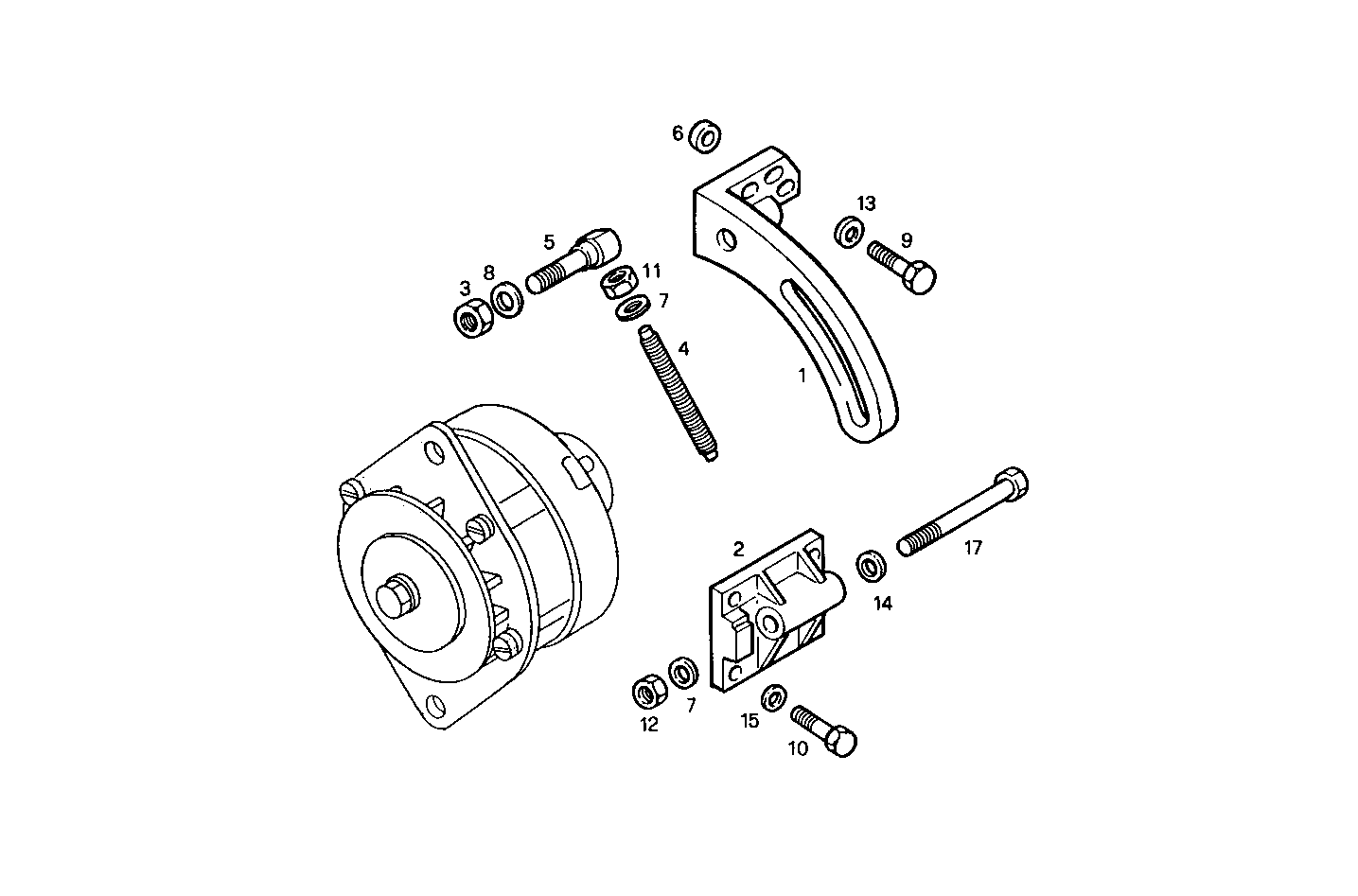

4010.066 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 97496006 | BELT TENSIONER |
| 2 | 4752922 | SUPPORT |
| 3 | 17157521 | NUT M12X1,25 |
| 4 | 4853921 | ADJUSTING SCREW |
| 5 | 4862246 | ADJUSTING SCREW |
| 6 | 12646721 | WASHER Ø8X20 MM |
| 7 | 12646901 | WASHER Ø12X28 MM |
| 8 | 12646921 | WASHER Ø12X28 MM |
| 9 | 16605524 | HEXAGON BOLT M8X20 MM |
| 10 | 16605724 | SCREW M8X1,25X30 |
| 11 | 16979731 | NUT M10X1,25 |
| 12 | 17038621 | NUT M12 |
| 13 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 14 | 17091174 | SPRING WASHER Ø12X24 MM |
| 15 | 17094904 | WASHER Ø8X16X1,6 MM |
| 17 | 4604245 | HEXAGON BOLT |
