8060SRC23.00

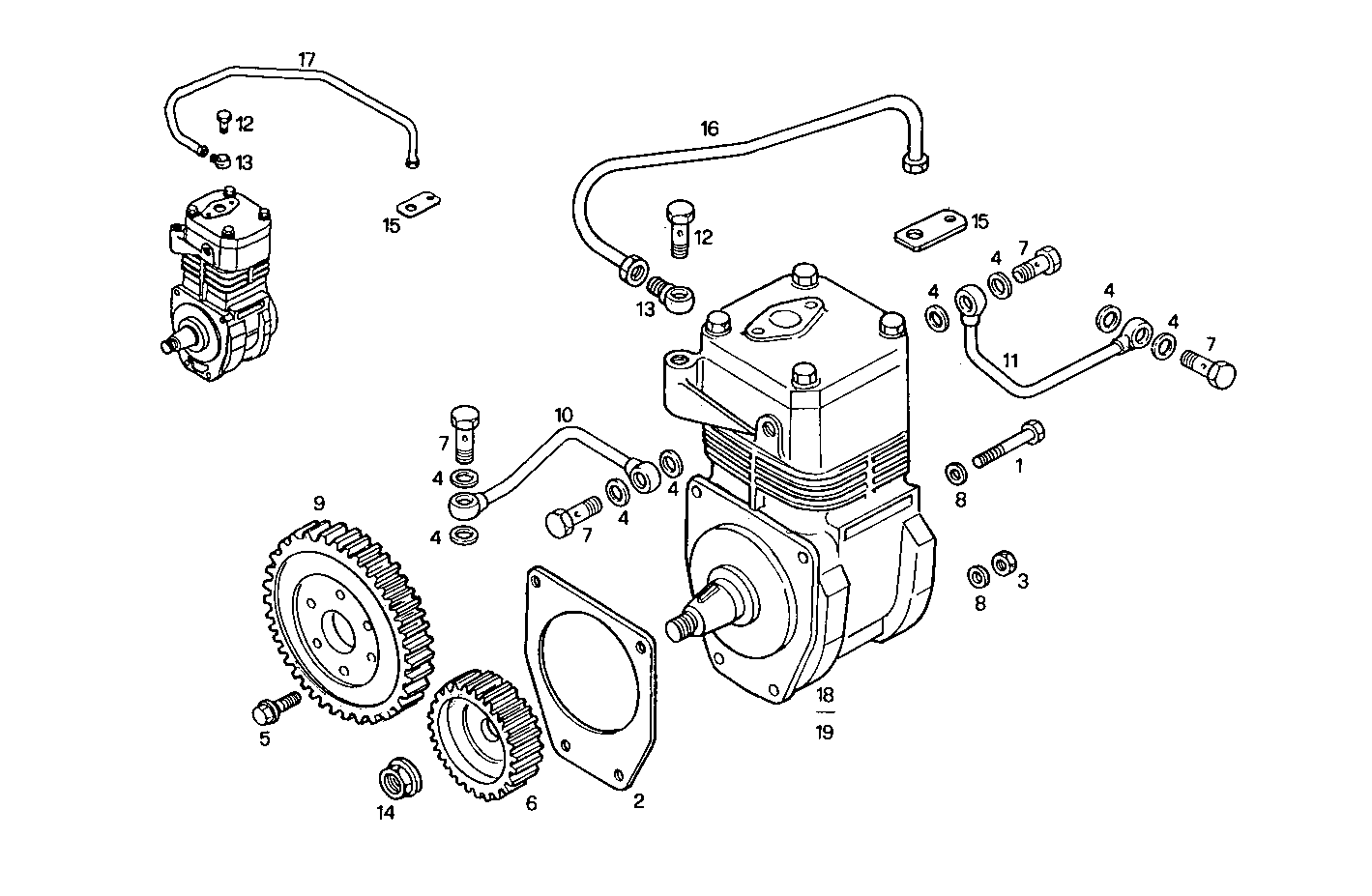

3800.010 AIR COMPRESSOR

Iveco/FPT AIR COMPRESSOR

Item Part number Description
1 15971421 HEXAGON BOLT M10X1,25X80 MM
2 99445563 FLAT ENGINE GASKET
3 17038221 HEXAGON NUT M10
4 4858609 WASHER Ø16X22 MM SP=1,5 MM
5 98413884 HEXAGON BOLT M10X1,25X26 MM
6 98416784 COMP. DRIVE GEAR
7 4864084 BANJO BOLT M16X1,5
8 17095004 WASHER Ø10X18X2 MM
9 98420180 TIMING INTERM.GEA
10 98437262 WATER PIPE
11 98439130 WATER PIPE
12 98454664 BANJO BOLT [up to 810887]
13 98454675 SWIVEL COUPLING [up to 810887]
14 98413776 NUT
15 98464423 CONNECTING PLATE
16 98474658 WATER PIPE FOR WABCO [up to 810887]
17 98474659 WATER PIPE FOR BENDIX [up to 810887]
18 99436216 AIR COMPRESSOR ASSY WABCO
19 98464999 AIR COMPRESSOR ASSY BENDIX
