8060SRC23.10

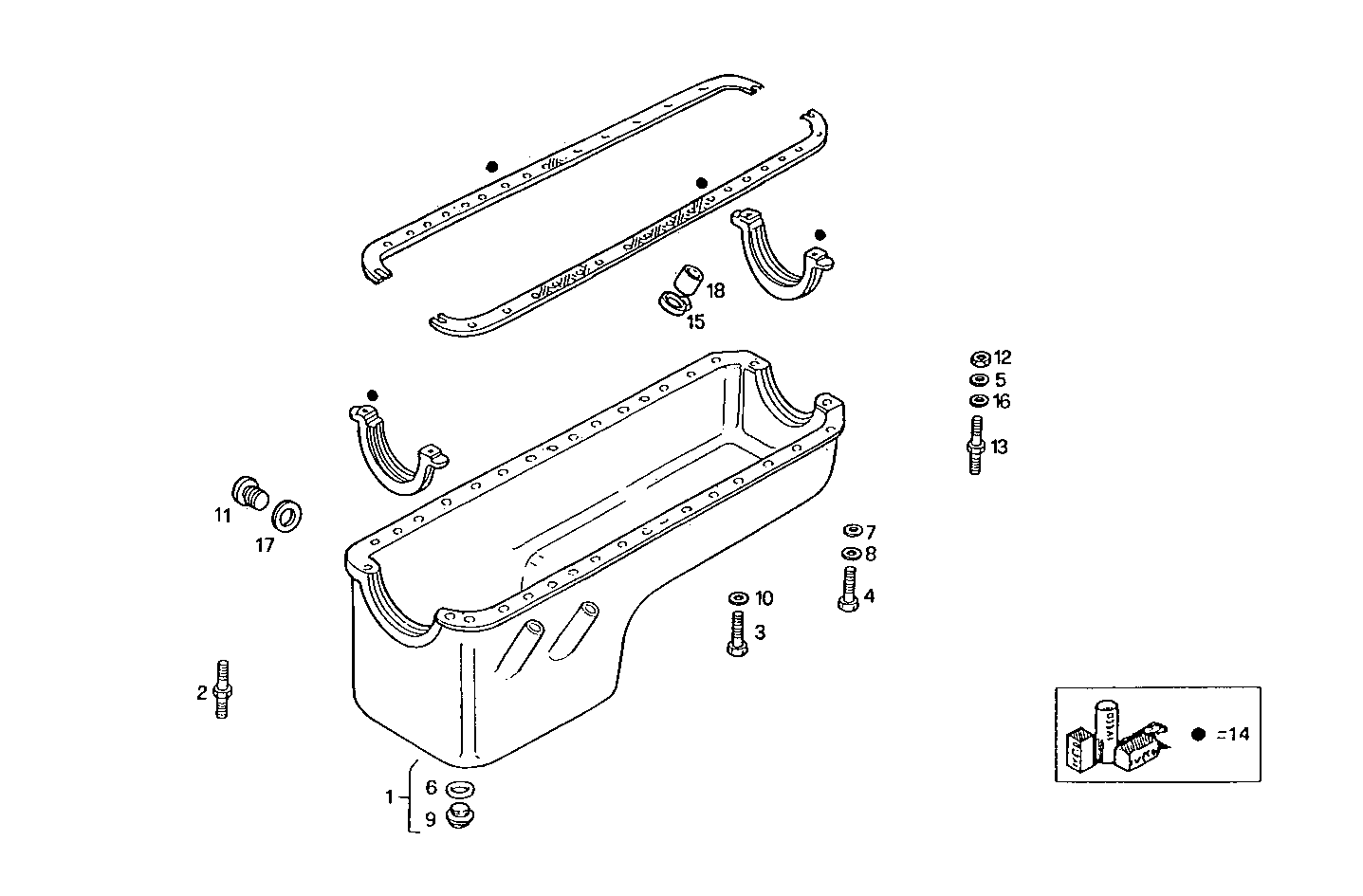

0420.106 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 4819237 OIL SUMP ASSY
2 98424203 HEXAGON BOLT M10X1,25X42
3 10929842 SCREW
4 10923024 HEXAGON BOLT M10X1,25X20 MM
5 10516679 WASHER Ø8X14,8X2 MM
6 17282180 O-RING Ø21,8 MM SP=2,6 MM
7 17095014 WASHER Ø10X18 MM
8 10516879 WASHER Ø10X18X2 MM
9 4847102 THREADED PLUG
10 17798374 SPRING WASHER Ø10,2X18,1 MM
11 11903211 LOCK PLUG M12X1,25
12 17037931 HEXAGON NUT M8X1,25
13 98474195 STUD M10X1,25 - M8X37,5 MM
14 1907739 KIT-OILSUMP GASKET
15 17764792 HOSE CLIP Ø32-50 MM
16 17094914 WASHER 8x16
17 10296160 SEAL GASKET Ø12X18 MM SP=1 MM
18 4849356 PLUG
