8060SRC23.10

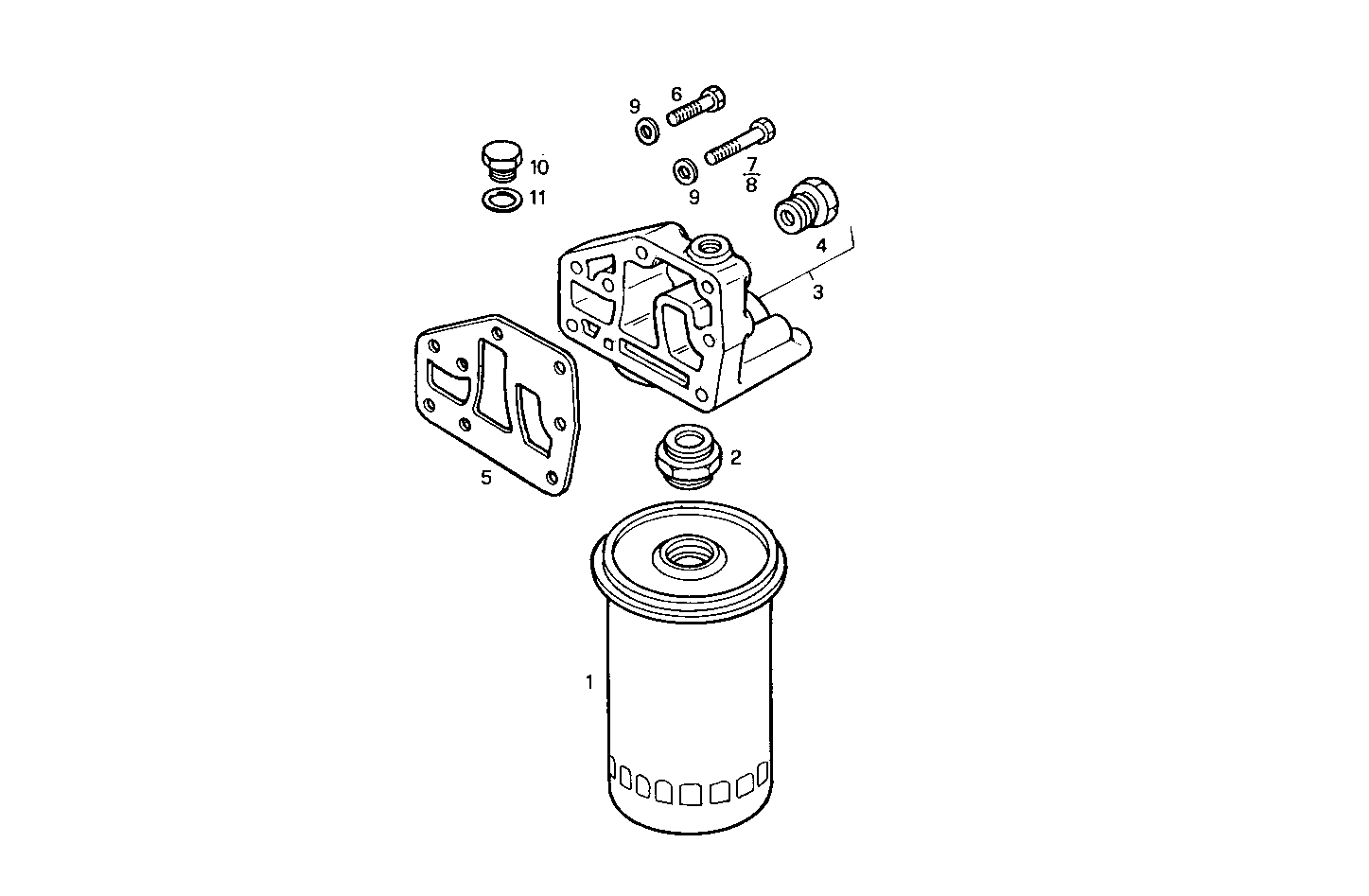

3020.040 OIL FILTERS
| Item | Part number | Description |
|---|---|---|
| 1 | 1903629 | OIL FILTER CARTRIDGE |
| 2 | 61315507 | THREADED UNION |
| 3 | 98415834 | OIL FILTER SUPPORT ASSY |
| 4 | 98415832 | PIPE SOCKET |
| 5 | 4850949 | FLAT ENGINE GASKET |
| 6 | 11307024 | SCREW M10X1,25X40 MM |
| 7 | 15971724 | HEXAGON BOLT M10X1,25X95 MM |
| 8 | 15972024 | HEXAGON BOLT M10X1,25X110 |
| 9 | 12626001 | WASHER Ø10X21X2 MM |
| 10 | 16992311 | LOCK PLUG M14X1,5 |
| 11 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
