8060SRC23.10

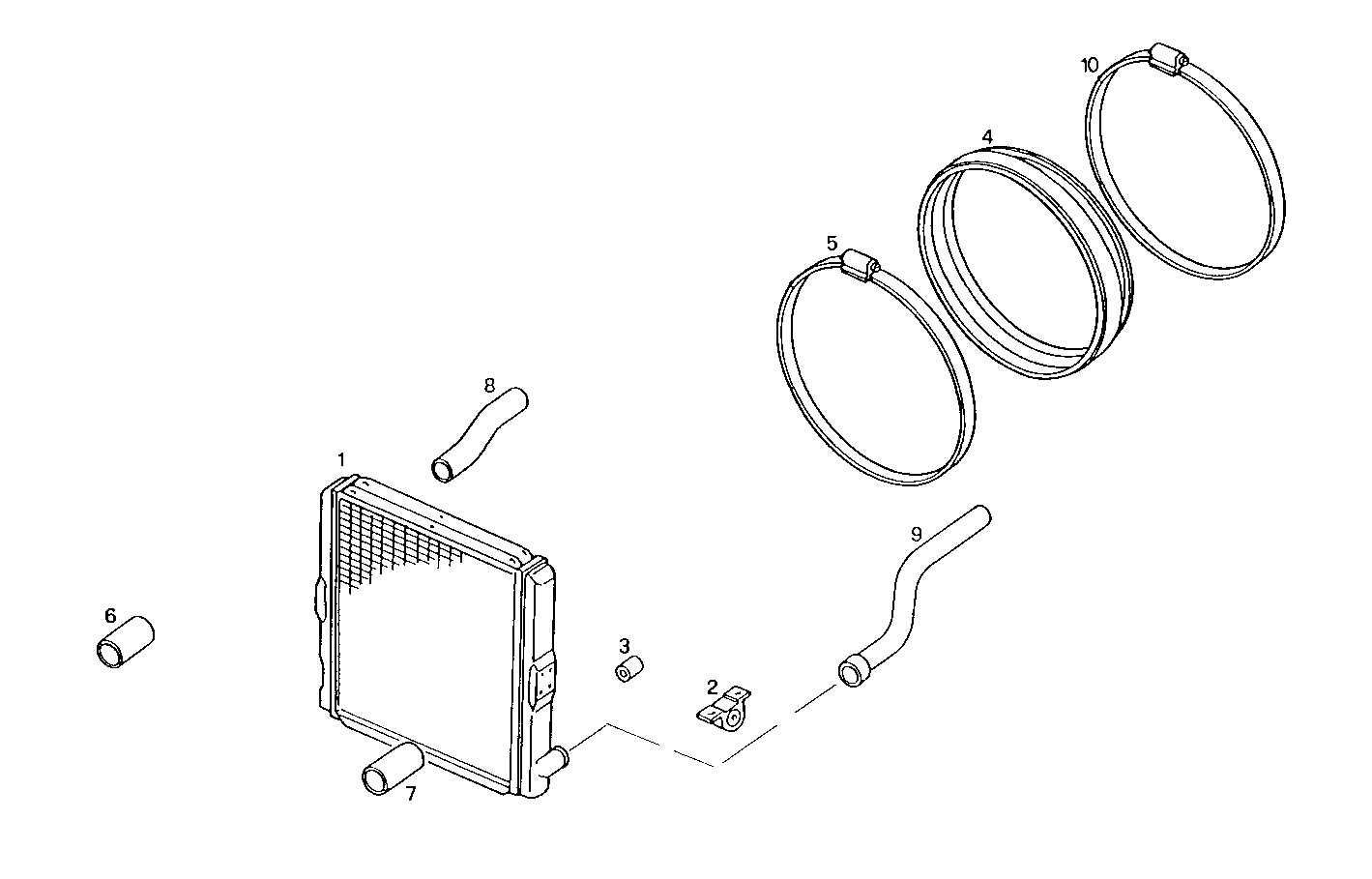

A22000006 RADIATOR FOR SETTING TILL MAX POWER - loose
| Item | Part number | Description |
|---|---|---|
| 1 | 4849404 | WATER RADIATOR |
| 2 | 98415194 | RUBBER PAD |
| 3 | 98415197 | RUBBER PAD |
| 4 | 98466026 | RUBBER GASKET |
| 5 | 18091892 | CLIP Ø570-590 MM |
| 6 | 4852526 | RUBBER SLEEVE |
| 7 | 99445944 | RUBBER SLEEVE Ø50 MM |
| 8 | 98464627 | WATER HOSE |
| 9 | 500300518 | RUBBER SLEEVE |
| 10 | 18091592 | CLIP Ø540-560 MM |
