8060SRC23.20

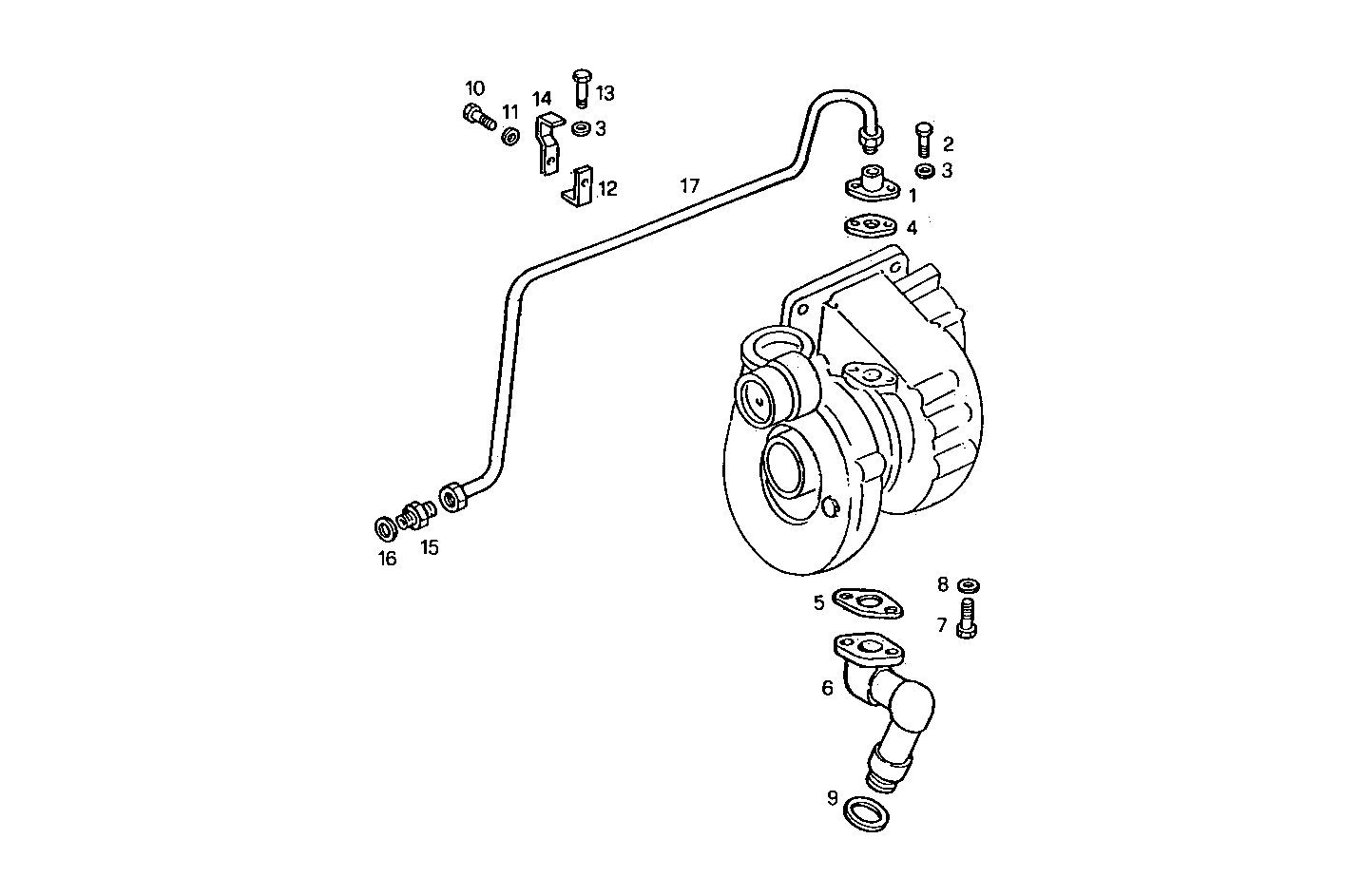

2420.175/02 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 4764795 THREADED UNION
2 16043524 SCREW M8X22 MM
3 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
4 98415922 FLAT ENGINE GASKET
5 98415923 FLAT ENGINE GASKET
6 98413929 OIL LINE
7 16605624 HEXAGON BOLT M8X25 MM (8.8)
8 17089574 WASHER Ø8X16 MM
9 17288581 O-RING Ø23,3 MM SP=3,5 MM
10 16603424 SCREW M6X10
11 17088471 SPRING WASHER Ø6X12 MM SP=1,2 MM
12 4834297 RETAINER
13 16043324 HEXAGON BOLT M8X18 MM
14 4834188 RETAINER
15 4834851 PIPE SOCKET
16 16508260 WASHER Ø16X20 MM
17 4834182 OIL LINE
