8060SRC23.20

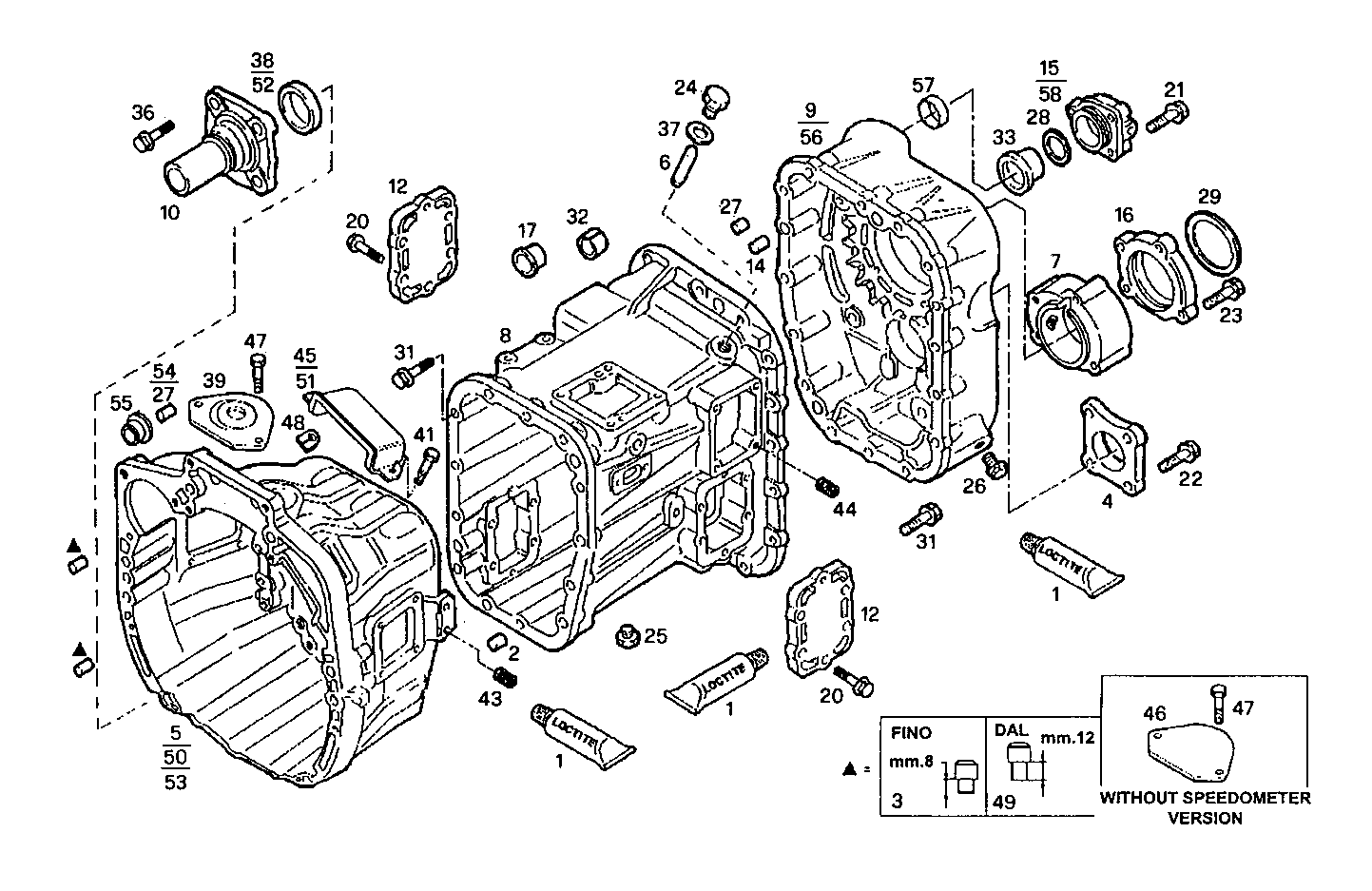

A27560001/03 TRANSMISSION GROUP - 2870.9 - left hand drive

Iveco/FPT TRANSMISSION GROUP - 2870.9

Item Part number Description
1 1905685 ADHESIVE/STICKER LOCTITE
2 4647524 DOWEL PIN
3 8813445 DOWEL PIN
4 8858971 COVER
5 1907845 CLUTCH HOUSING ASSY [up to 2B94]
6 8859205 SCREEN
7 8859215 REAR G.BOX COVER
8 8859235 TRANSMISSION CASE
9 8859236 TRANSMISSION CASE [up to 1F99]
10 8859335 FRONT G.BOX COVER
12 8859471 SIDE G.BOX COVER
14 8860543 DOWEL PIN
15 8861990 CYLINDER [up to 1F99]
16 8861992 REAR G.BOX COVER
17 8863152 BUSH
20 16587224 HEXAGON BOLT M10X30 MM
21 16587824 HEXAGON BOLT M10X1,5X60 MM
22 16588024 HEXAGON BOLT M12X30 MM
23 16593124 HEXAGON BOLT M10X100 MM
24 16992411 THREADED PLUG M16X1,5
25 16996511 THREADED PLUG M22X1,5
26 16998511 THREADED PLUG M22X1,5
27 17275410 DOWEL PIN Ø8 MM
28 17280981 O-RING
29 40100490 SHAFT SEAL
31 16592724 HEXAGON BOLT M10X65 MM
32 8859425 BUSH
33 40101723 SHAFT SEAL Ø25X38 MM SP=15 MM
36 16587124 HEXAGON BOLT M10X25 MM
37 16508260 WASHER Ø16X20 MM
38 40100511 SHAFT SEAL Ø48X65 MM SP=10 MM [up to 23N93]
39 4852908 COVER
41 16585724 HEXAGON BOLT M6X16 MM
43 17849770 THREADED INSERT M8X16 MM
44 17849870 THREADED INSERT M10X20 MM
45 98485046 COVER [up to 2B94]
46 98485047 COVER
47 16586224 HEXAGON BOLT M8X1,25X16 MM
48 4852907 INSULATING RING
49 8867613 DOWEL PIN
50 8867832 CLUTCH HOUSING ASSY
51 500302877 COVER [from 3B94]
52 40101843 SHAFT SEAL Ø48X65 MM SP=10 MM
53 8868770 CLUTCH HOUSING ASSY [from 5B97]
54 8868506 DOWEL PIN
56 8869296 TRANSMISSION CASE [from 2F99]
57 8869079 GUIDE BUSH Ø25X28 MM SP=12,5 MM [from 2F99]
58 8869077 CYLINDER [from 2F99]
