8060SRM25.10

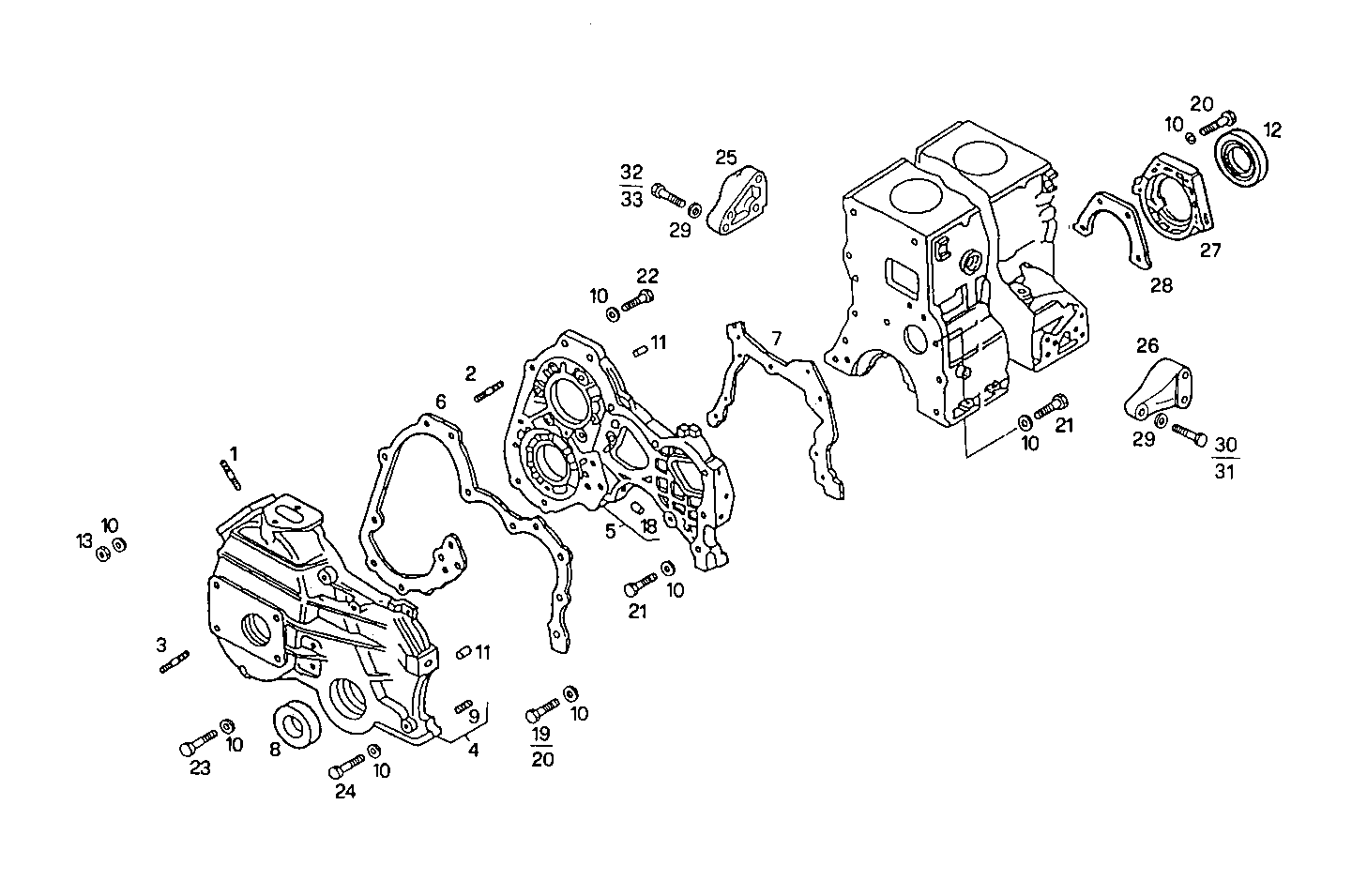

0430.119/01 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 13516821 STUD M8X12X20 MM
2 16746824 STUD M8X30 MM (8.8)
3 13541124 STUD M6X20 MM
4 4846460 FRONT C.CASE COVER ASSY
5 500321670 TIMINGGEAR HOUSIN ASSY REAR
6 98424045 FLAT ENGINE GASKET
7 98424046 FLAT ENGINE GASKET
8 99469265 SHAFT SEAL CORCOS
9 13526170 THREADED INSERT M10X1,25X20 MM
10 17094914 WASHER 8x16
11 10839610 DOWEL PIN Ø8 MM
12 99457401 SHAFT SEAL CORCOS
13 17037931 HEXAGON NUT M8X1,25
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 4605220 OIL NOZZLE
19 16606124 HEXAGON BOLT M8X50 MM
20 16605824 HEXAGON BOLT M8X35 MM
21 16043521 SCREW M8X22
22 16605734 HEXAGON BOLT M8X30 MM
23 16044921 HEXAGON BOLT M8X1,25X85 MM
24 16606524 HEXAGON BOLT M8X70 MM
25 4853971 BRACKET RIGHT
26 4852463 SUPPORT LEFT
27 98489586 REAR C.CASE COVER
28 4849994 FLAT ENGINE GASKET
29 17095304 WASHER Ø12X24 MM
30 16610924 HEXAGON BOLT M12X90 MM
31 15540821 HEXAGON BOLT M12X1,25X50 MM
32 16611224 HEXAGON BOLT M12X120 MM
33 16610724 SCREW M12X1,75X70 MM
