8060SRM25.10

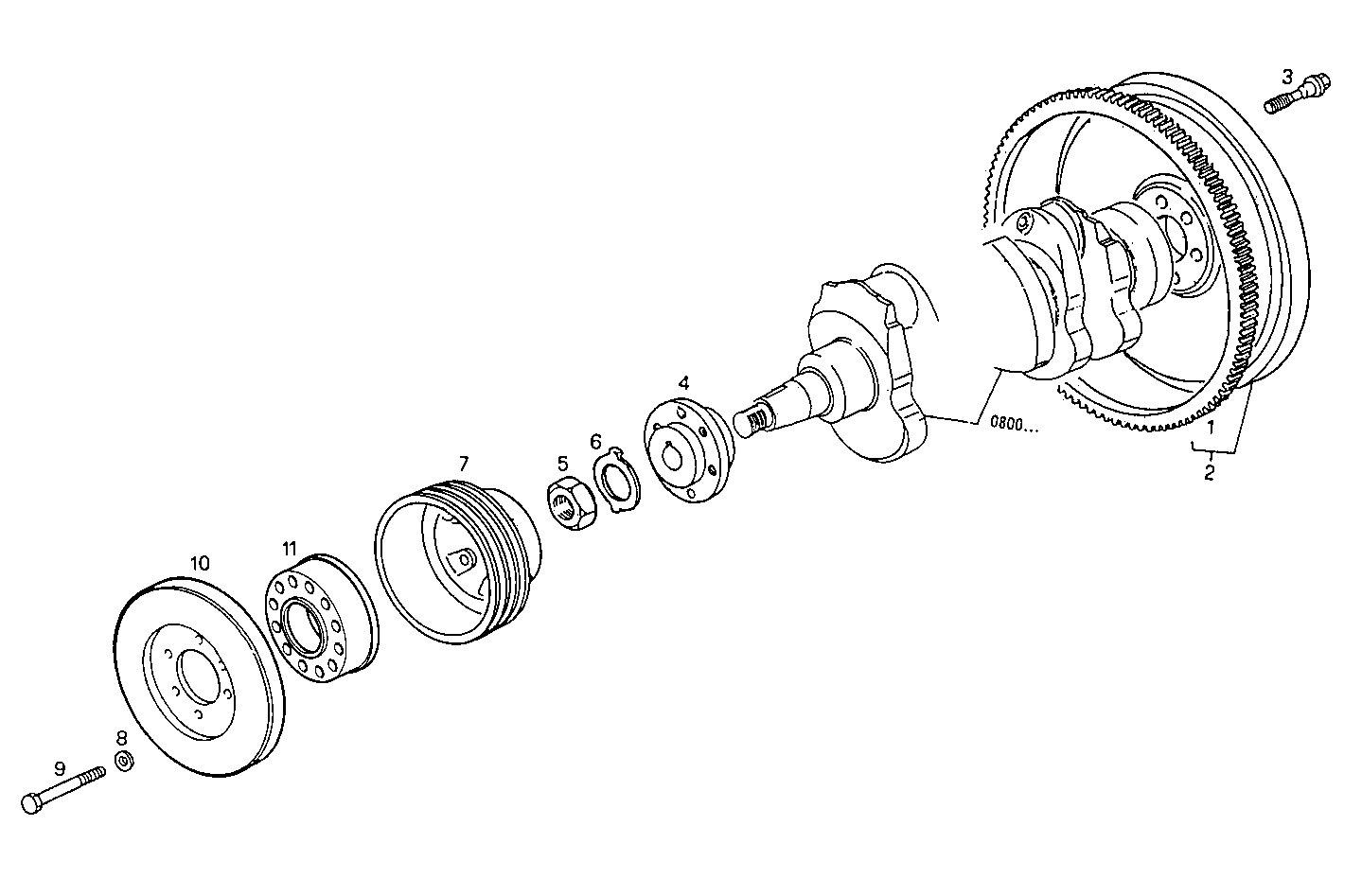

0830.110 ENGINE FLYWHEEL - DAMPER
| Item | Part number | Description |
|---|---|---|
| 1 | 4704106 | RING GEAR |
| 2 | 500338559 | FLYWHEEL ASSY |
| 3 | 4779122 | HEXAGON BOLT |
| 4 | 4655847 | HUB |
| 5 | 4600189 | NUT |
| 6 | 4600190 | LOCKING PLATE |
| 7 | 8018890 | PULLEY |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 15971621 | HEXAGON BOLT M10X1,25X90 MM |
| 10 | 4829151 | VIBRATION DAMPER CINOTTO |
| 11 | 8018891 | SPACING BAR |
