8060SRM25.10

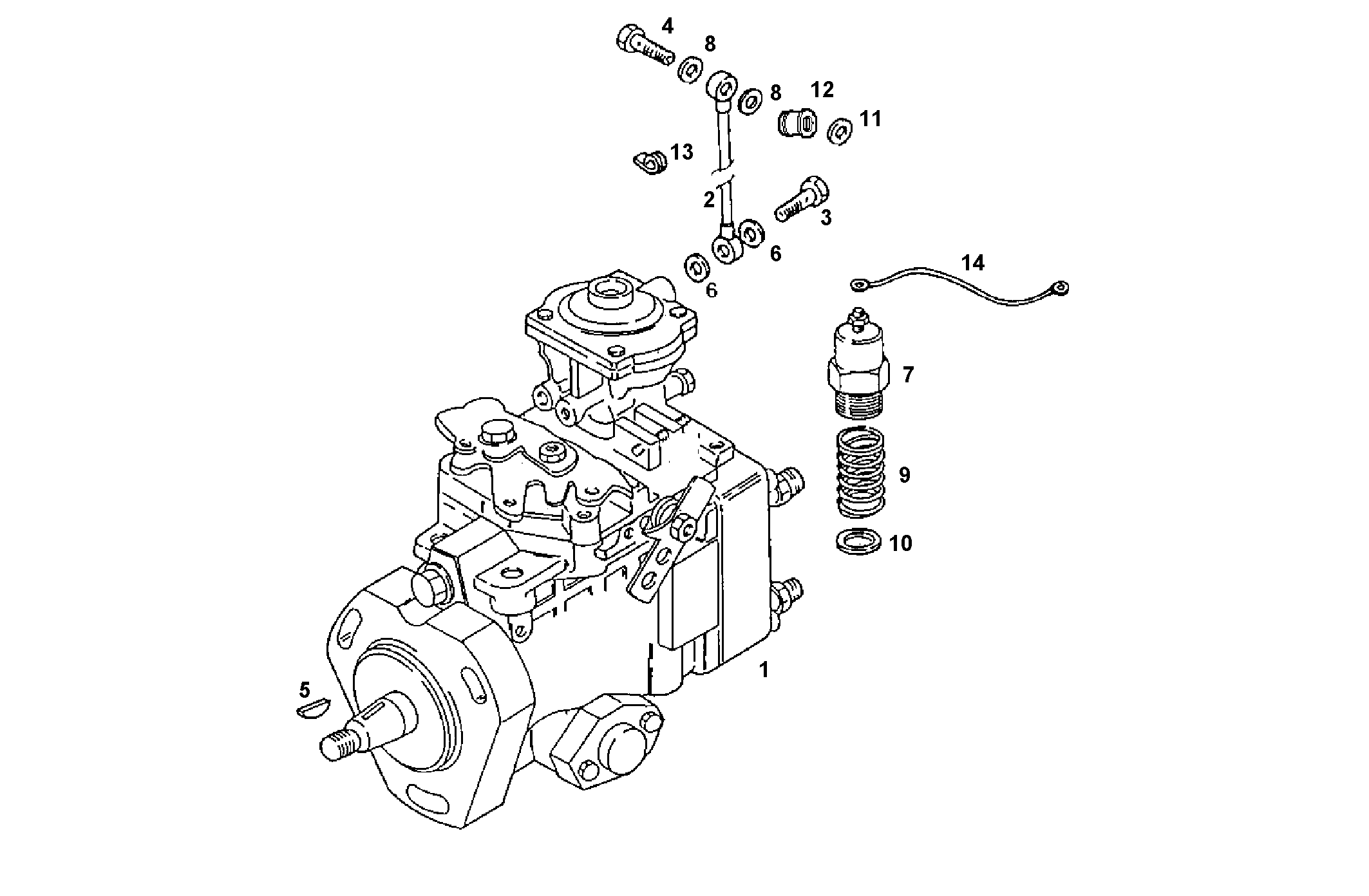

1400.190 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8029099 | DISTRIB.INJ.PUMP ASSY |
| 2 | 8029474 | FUEL LINE |
| 3 | 4753761 | SCREW CONNECTOR |
| 4 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 5 | 17221020 | KEY M12X110 MM |
| 6 | 4858605 | WASHER Ø8X12 MM |
| 7 | 8032964 | ELECTROVALVE |
| 8 | 4858606 | GASKET Ø10X14X1 MM |
| 9 | 8032965 | SPRING |
| 10 | 4852642 | GASKET |
| 11 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 12 | 4935727 | PIPE SOCKET |
| 13 | 17316490 | CLIP |
| 14 | 8023458 | ENGINE HARNESS |
