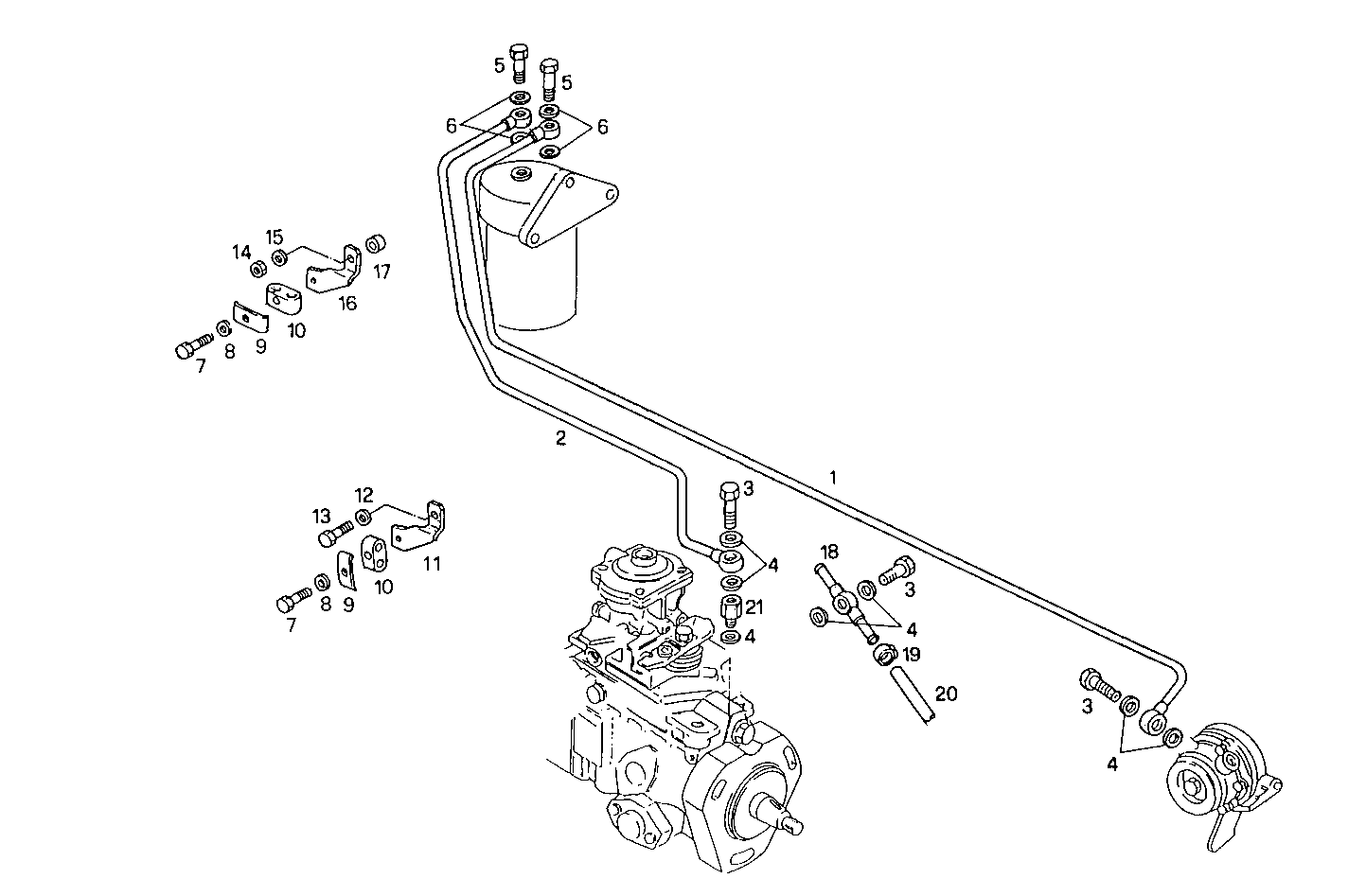

| Item |
Part number |
Description |
|
1 |
8029051 |
FUEL LINE |
|
2 |
8029052 |
FUEL LINE |
|
3 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
4 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
5 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
6 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
7 |
16602324 |
HEXAGON BOLT M5X25 MM |
|
8 |
17800274 |
SPRING WASHER Ø5X11 MM |
|
9 |
4659218 |
CLIP |
|
10 |
4659217 |
DOWEL |
|
11 |
8029352 |
RETAINER |
|
12 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
13 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
14 |
17037931 |
HEXAGON NUT M8X1,25 |
|
15 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
16 |
500334222 |
FASTENING BRACKET Ø56,52 MM SP=5,33 MM |
|
17 |
8104719 |
SPACING BAR |
|
18 |
4775496 |
PIPE SOCKET 1C |
|
19 |
18088392 |
CLIP Ø16/25 MM |
|
20 |
8006636 |
RUBBER SLEEVE |
|
21 |
4802434 |
THREADED UNION M12X1,5 |
|
22 |
8034095 |
PIPE SOCKET D [from 01-09-02] |
