8060SRM25.10

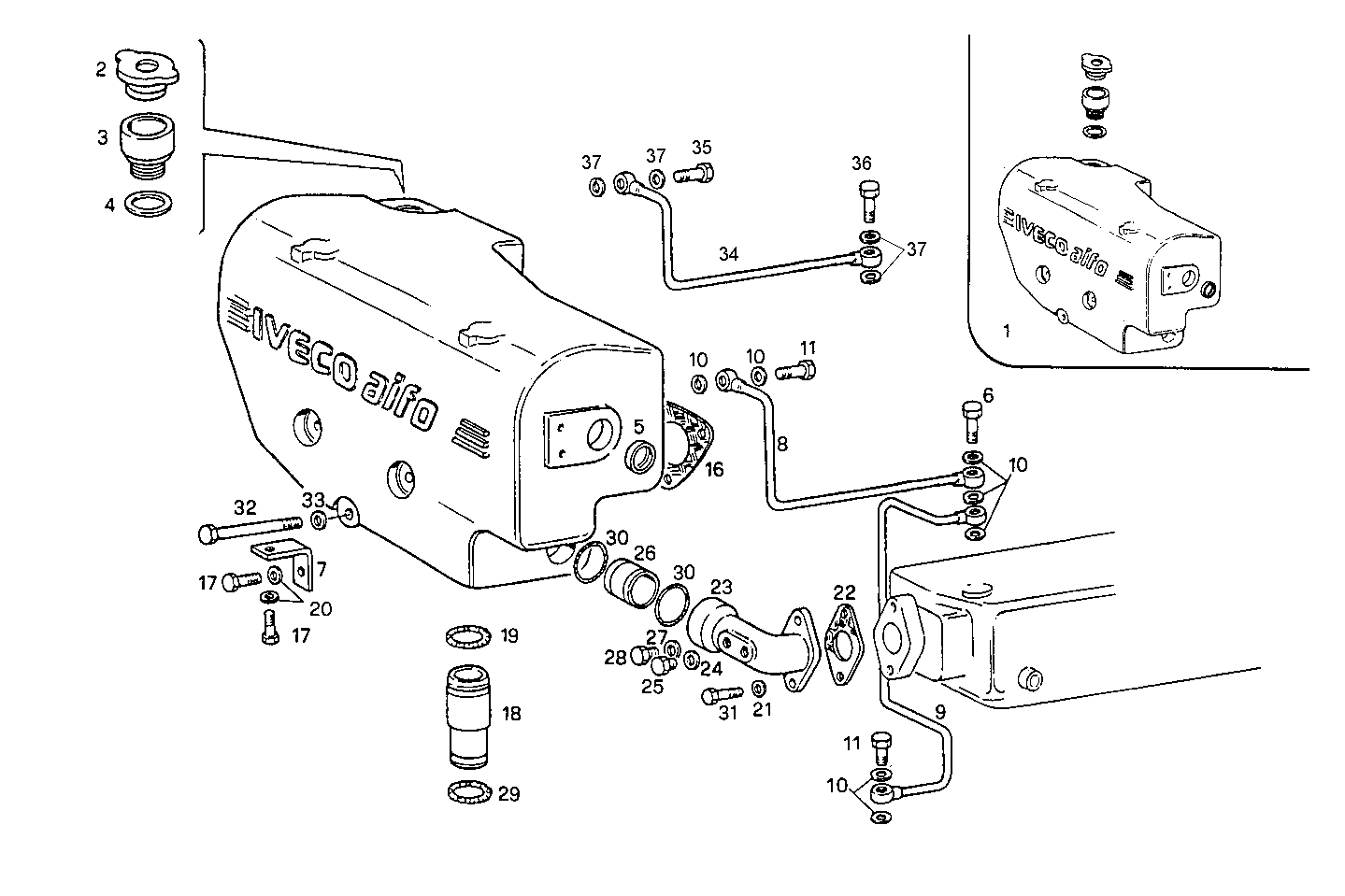

3210.217/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8007139 WATER EXPANSION TANK ASSY
2 4930462 PLUG
3 8102030 FILLER NECK
4 10265360 SEAL GASKET Ø40X48 MM SP=1,5 MM
5 14282770 LOCK PLUG Ø36 MM
6 8012607 SCREW CONNECTOR
7 8007133 RETAINER
8 8011617 WATER PIPE
9 8011618 WATER PIPE
10 98474306 WASHER Ø12X20 MM SP=1,9 MM
11 4927823 SCREW CONNECTOR
16 4851926 FLAT ENGINE GASKET
17 16043321 HEXAGON BOLT M8X18 MM
18 98415712 PIPE SOCKET [from 657424]
19 98458442 O-RING Ø24,99 MM SP=3,53 MM [from 657424]
20 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
21 17094914 WASHER 8x16
22 8009640 GASKET
23 8007096 WATER PIPE
24 4858608 SEAL GASKET dia.14x19,5x1,5
25 16992340 THREADED PLUG M14X1,5
26 8007092 FLEXIBLE COUPLING
27 4858609 WASHER Ø16X22 MM SP=1,5 MM
28 16992440 THREADED PLUG M16X1,5
29 98458443 O-RING DIA 2.62X25.07 [from 657424]
30 17289581 O-RING Ø40,87X3,53 MM
31 16605624 HEXAGON BOLT M8X25 MM (8.8)
32 15972621 HEXAGON BOLT M10X1,25X140 MM
33 17095004 WASHER Ø10X18X2 MM
34 8019571 WATER PIPE
35 4864080 SCREW CONNECTOR M10X1,25
36 8009696 SCREW CONNECTOR M12X1,5X25
37 98474305 WASHER Ø10X17 MM SP=2,3
