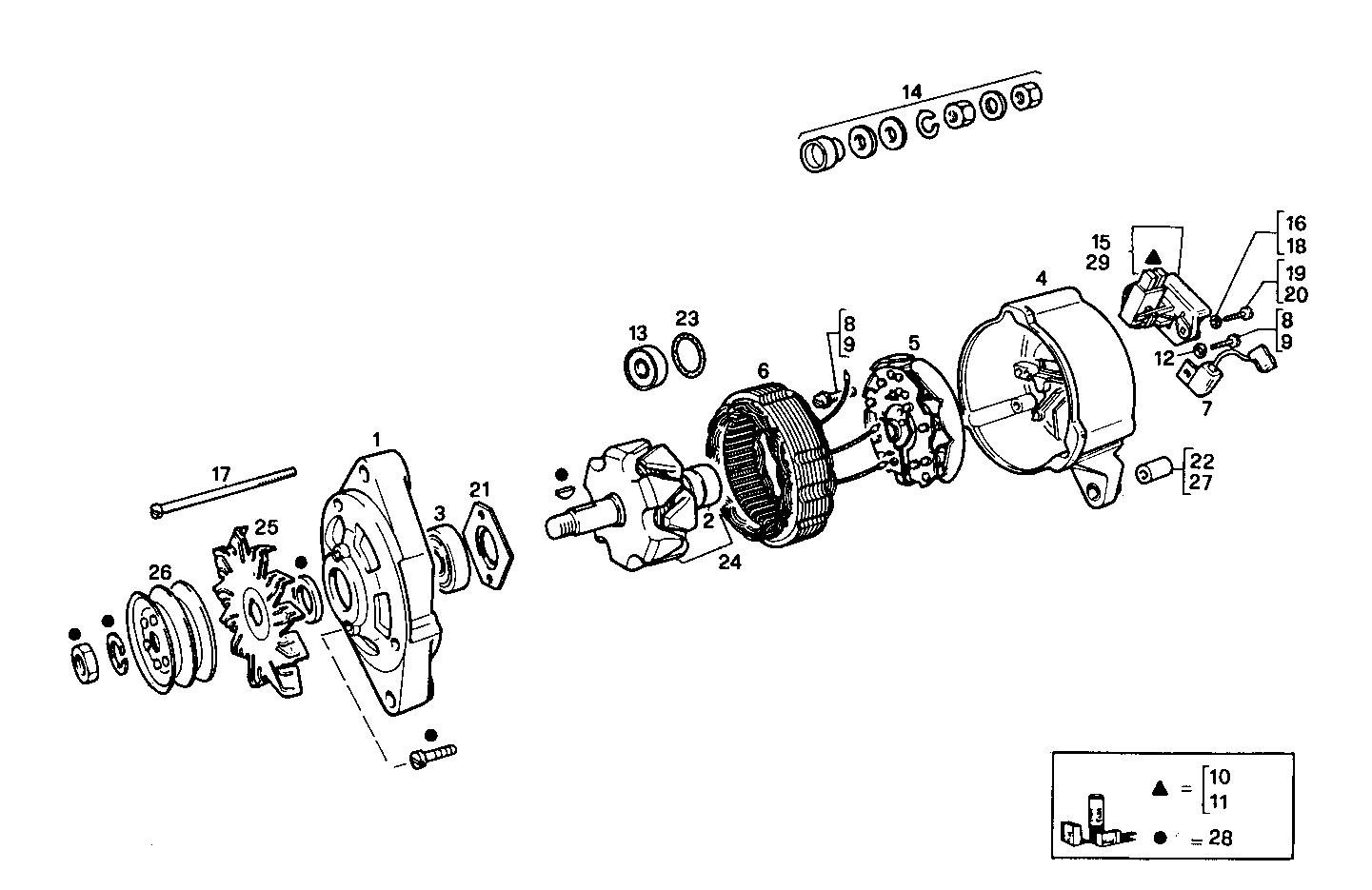

| Item |
Part number |
Description |
|
1 |
9940037 |
SUPPORT |
|
2 |
9960174 |
RING |
|
3 |
9927840 |
COMMUTATOR BEARING |
|
4 |
9936537 |
SUPPORT |
|
5 |
9937529 |
RECTIFIER |
|
6 |
9960119 |
STATOR |
|
7 |
79022480 |
CONDENSER |
|
8 |
9939293 |
SCREW [up to ...] |
|
9 |
79075883 |
SCREW |
|
10 |
42491787 |
CARBON BRUSHES [up to ...] |
|
11 |
9937700 |
KIT-GENERATOR [from ...] |
|
12 |
9960179 |
WASHER |
|
13 |
9960113 |
DRIVE BEARING |
|
14 |
9927837 |
KIT-GENERATOR |
|
15 |
9938171 |
VOLTAGE REGULATOR ASSY [up to ...] |
|
16 |
9960178 |
WASHER [up to ...] |
|
17 |
9957963 |
SCREW |
|
18 |
42483342 |
WASHER |
|
19 |
79022481 |
SCREW [up to ...] |
|
20 |
10389311 |
CYLIND-HEAD SCREW M5X10 MM (4.8) [from ...] |
|
21 |
79022468 |
PLATE |
|
22 |
42490292 |
BUSH [up to ...] |
|
23 |
79025494 |
O-RING |
|
24 |
9938344 |
ROTOR |
|
25 |
4470778 |
GENERATOR FAN BOSCH |
|
26 |
4765727 |
PULLEY |
|
27 |
9960120 |
BUSH |
|
28 |
9960180 |
KIT-GENERATOR |
|
29 |
9962566 |
VOLTAGE REGULATOR [from ...] |
