8060SRM25.11

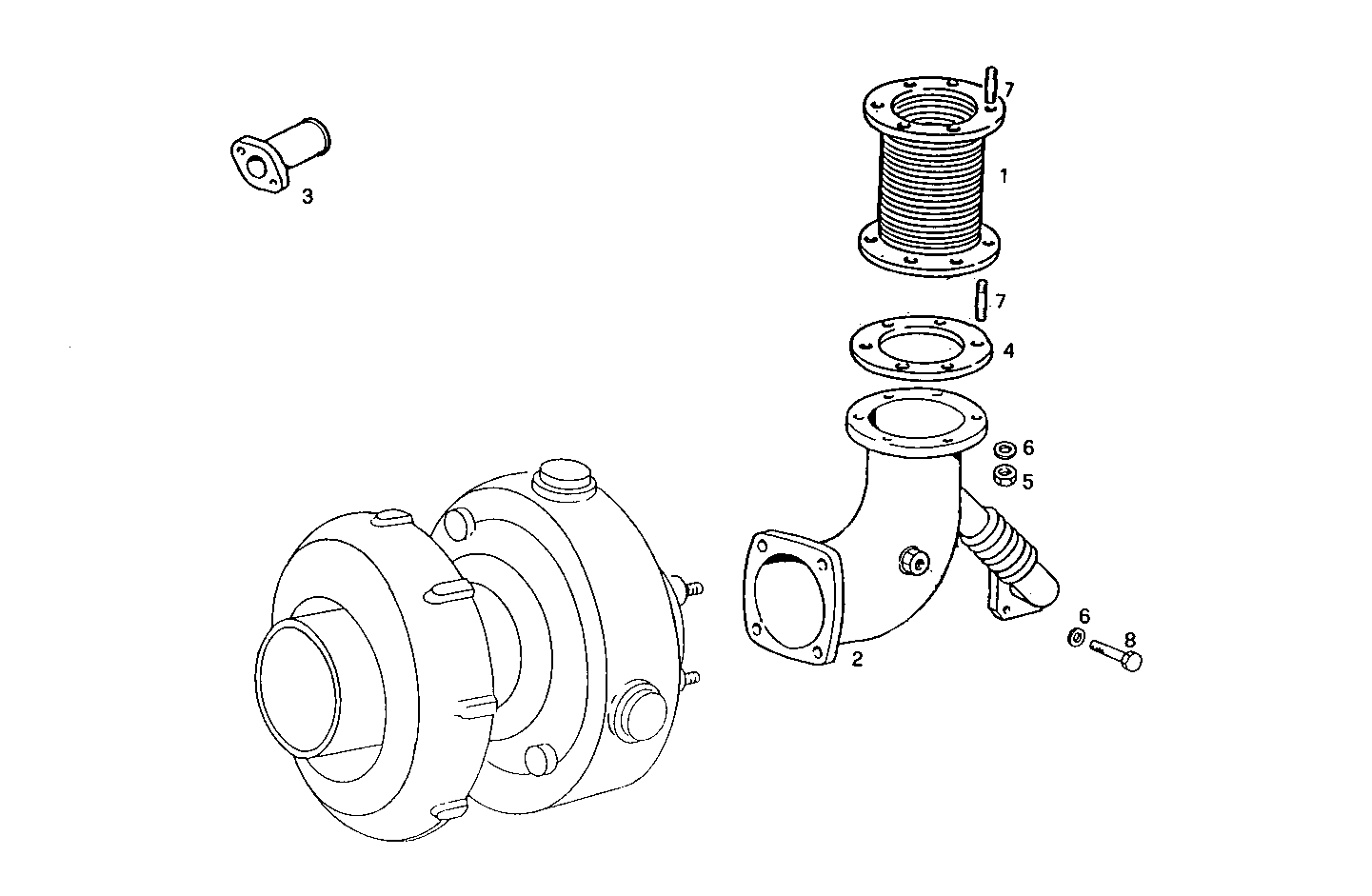

A40030013 UPWARD REAR EXHAUST ELBOW
| Item | Part number | Description |
|---|---|---|
| 1 | 4935594 | EXHAUST BELLOWS |
| 2 | 8011025 | EXHAUST ELBOW |
| 3 | 8112744 | WATER PIPE |
| 4 | 8009606 | GASKET |
| 5 | 17037931 | HEXAGON NUT M8X1,25 |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 13516921 | STUD M8X12X22 MM |
| 8 | 16605524 | HEXAGON BOLT M8X20 MM |
