8060SRM33.10

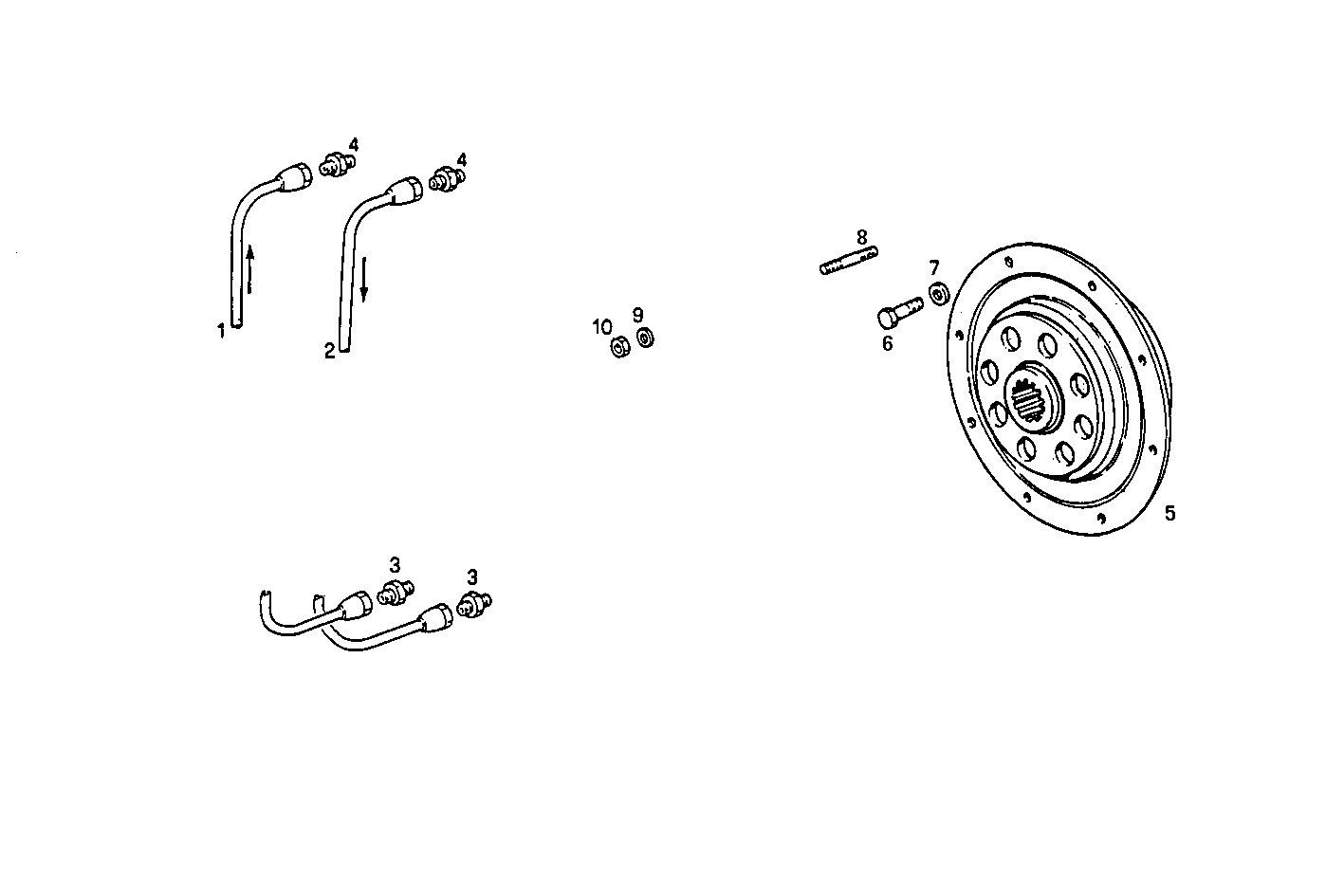

A13570001 ARRANGED FOR GEAR TECHNODRIVE ZF 220 A
| Item | Part number | Description |
|---|---|---|
| 1 | 8105620 | HOSE |
| 2 | 4935490 | OIL LINE |
| 3 | 8101073 | PIPE SOCKET |
| 4 | 4935465 | PIPE SOCKET |
| 5 | 8018850 | FLEXPLATE |
| 6 | 15970721 | SCREW M10X1,25X25 |
| 7 | 17095004 | WASHER Ø10X18X2 MM |
| 8 | 13449521 | STUD M10X15X25 |
| 9 | 17090174 | SPRING WASHER Ø10X20 MM |
| 10 | 17038221 | HEXAGON NUT M10 |
