8060SRM33.10A002

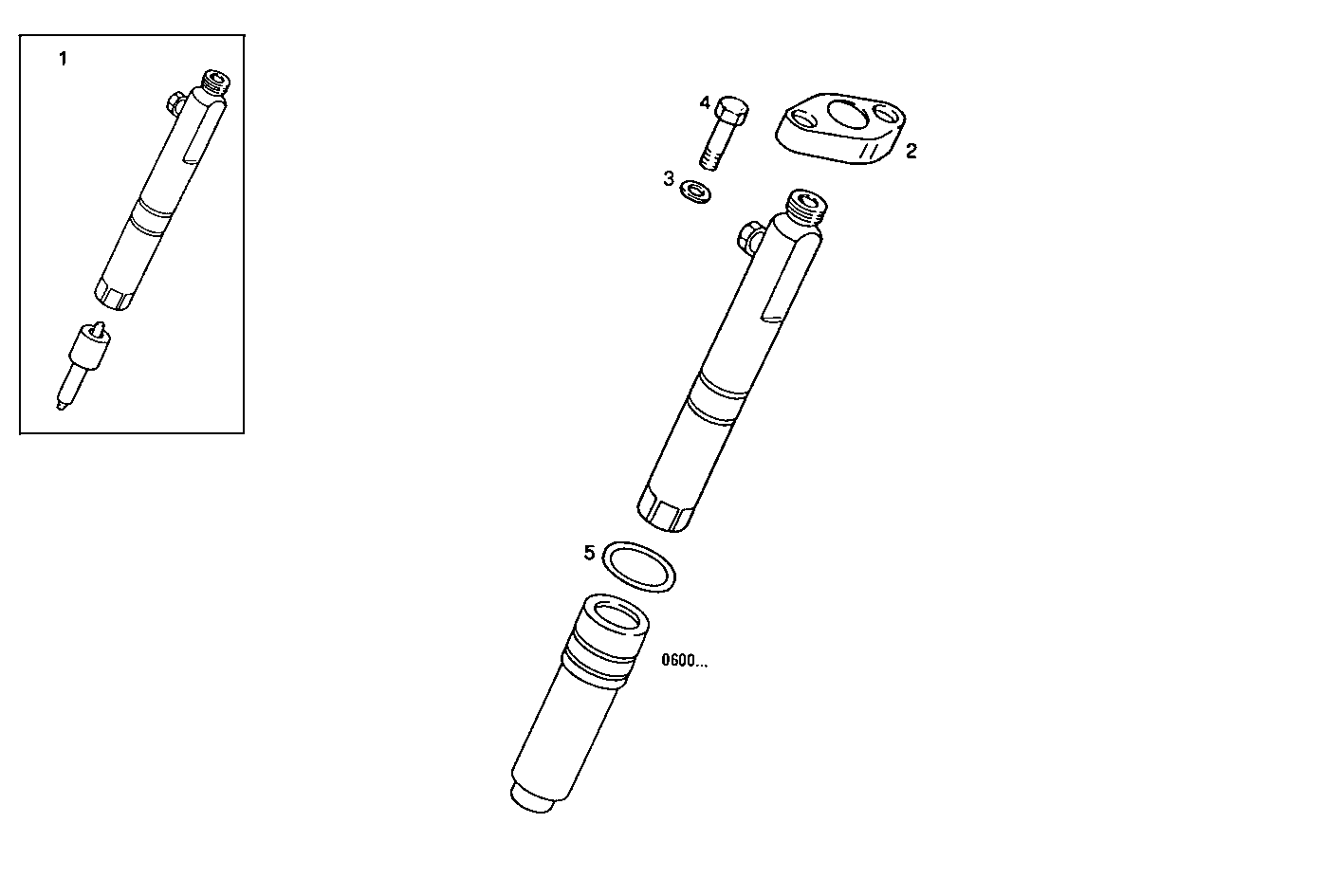

1420.113 INJECTORS
| Item | Part number | Description |
|---|---|---|
| 1 | 98451597 | NOZZLE |
| 2 | 4780612 | FASTENING BRACKET |
| 3 | 771326 | WASHER Ø11,5 MM |
| 4 | 8023383 | SCREW M10X45 |
| 5 | 17278589 | O-RING Ø18,77 MM SP=1,78 MM |
