8060SRM33.10A002

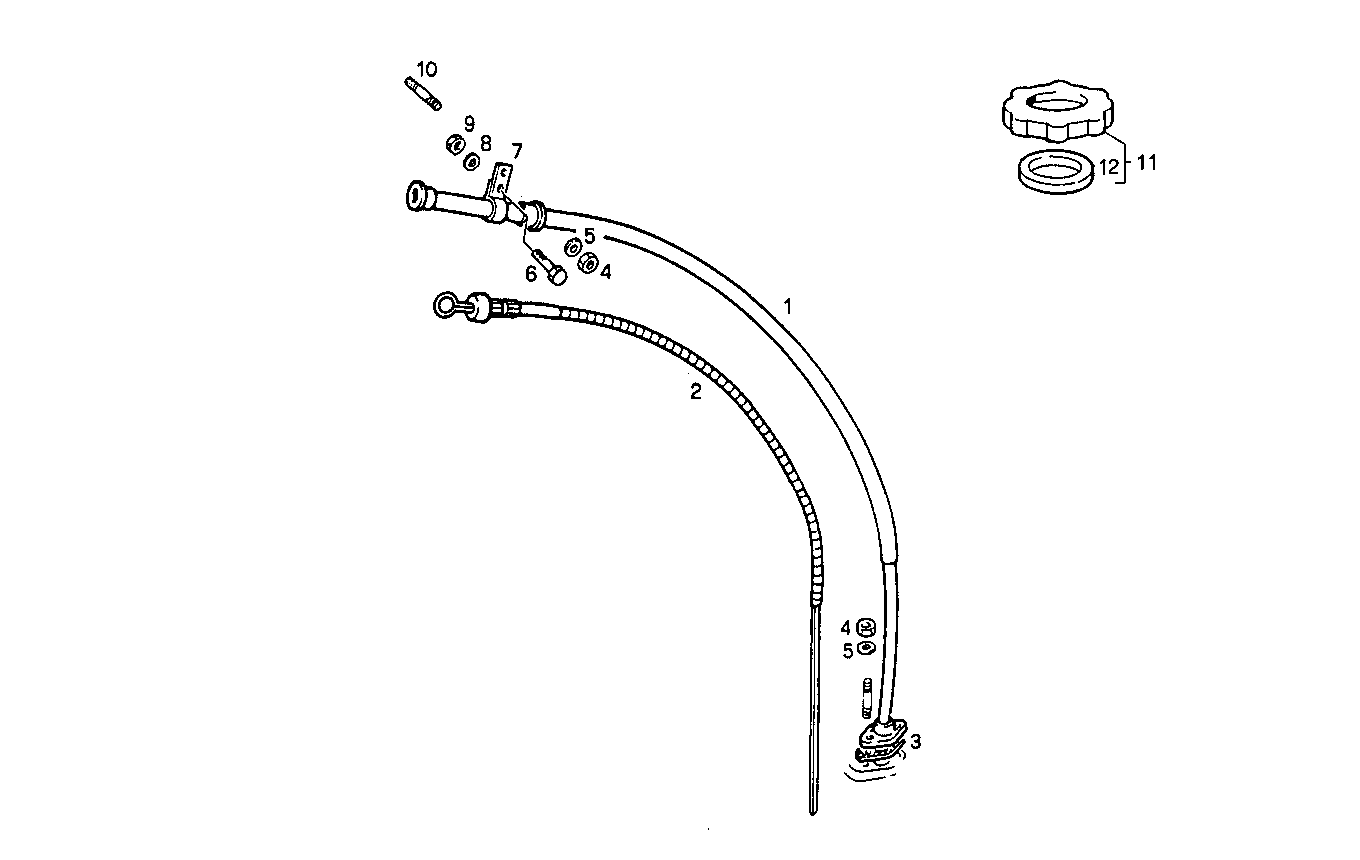

2710.000 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 8006370 | ROD GUIDE |
| 2 | 8006372 | OIL DIPSTICK |
| 3 | 98418621 | GASKET |
| 4 | 17037931 | HEXAGON NUT M8X1,25 |
| 5 | 11194074 | WASHER Ø8,4 MM |
| 6 | 16603524 | SCREW M6X12 MM (8.8) |
| 7 | 8006649 | CLIP |
| 8 | 11194379 | SPRING WASHER Ø6X12 MM |
| 9 | 15896211 | HEXAGON NUT M6 |
| 10 | 16729224 | STUD M8X16 MM |
| 11 | 98418980 | OIL FILLER PLUG ASSY |
| 12 | 98418978 | GASKET |
