8060SRM33.10A002

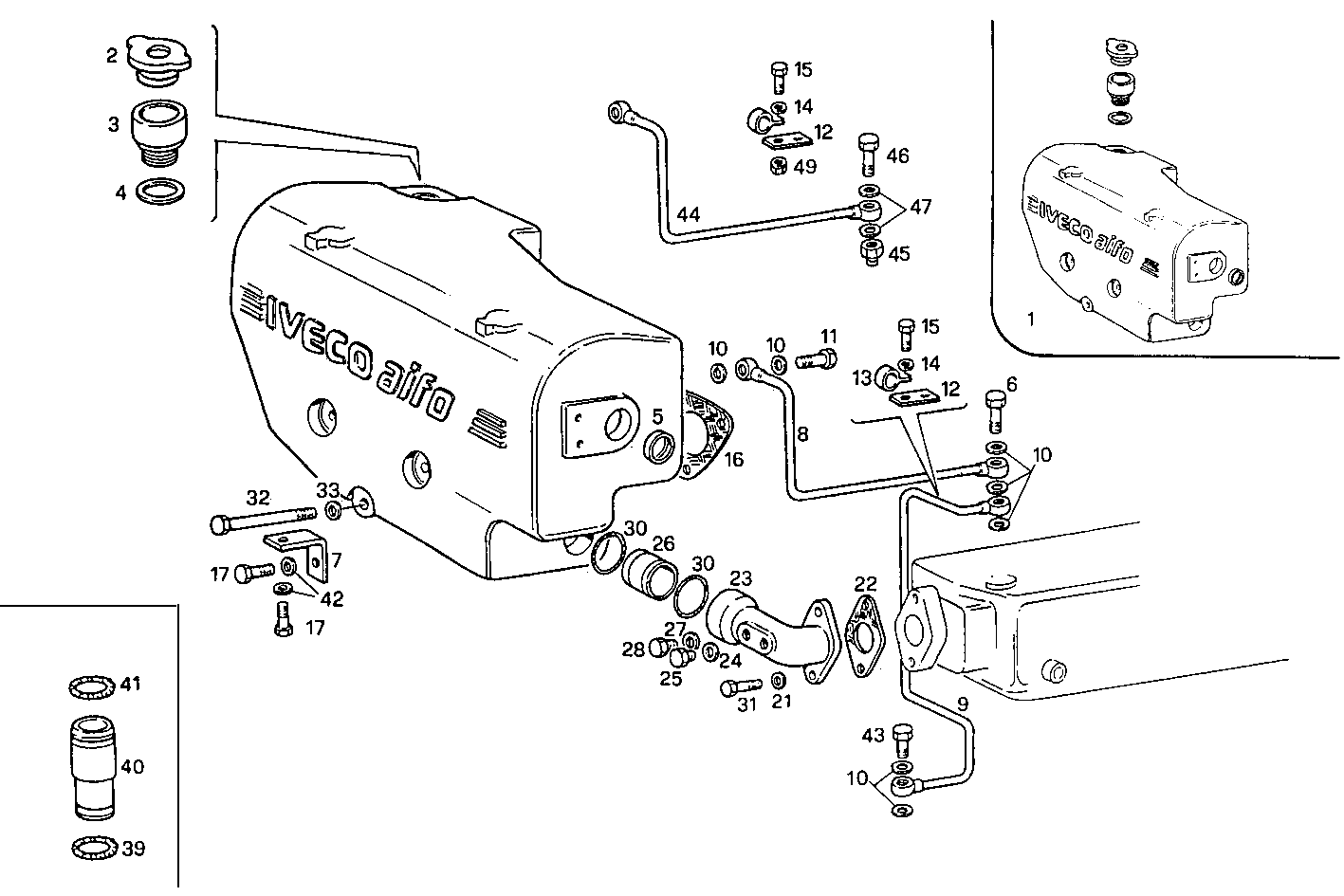

3210.233/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8007139 WATER EXPANSION TANK ASSY
2 4930462 PLUG
3 8102030 FILLER NECK
4 10265360 SEAL GASKET Ø40X48 MM SP=1,5 MM
5 16991170 LOCK PLUG Ø36 MM
6 8012607 SCREW CONNECTOR
7 8007133 RETAINER
8 8011617 WATER PIPE
9 8011618 WATER PIPE
10 98474306 WASHER Ø12X20 MM SP=1,9 MM
11 8016191 BANJO BOLT M12X1,5
12 8107203 RETAINER
13 4936741 CLIP
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 16605424 SCREW M8X16 MM (8.8)
16 4851926 FLAT ENGINE GASKET
17 16043324 HEXAGON BOLT M8X18 MM
21 17094914 WASHER 8x16
22 8009640 GASKET
23 8007096 WATER PIPE
24 4858608 SEAL GASKET dia.14x19,5x1,5
25 16992340 THREADED PLUG M14X1,5
26 8007092 FLEXIBLE COUPLING
27 4858609 WASHER Ø16X22 MM SP=1,5 MM
28 16992440 THREADED PLUG M16X1,5
30 17289581 O-RING Ø40,87X3,53 MM
31 16605624 HEXAGON BOLT M8X25 MM (8.8)
32 15972621 HEXAGON BOLT M10X1,25X140 MM
33 17095014 WASHER Ø10X18 MM
39 17288681 O-RING Ø24,9 MM SP=3,5 MM
40 98415712 PIPE SOCKET [from 657424]
41 17282281 O-RING 2,62x23,47
42 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
43 8009696 SCREW CONNECTOR M12X1,5X25
44 8019571 WATER PIPE
45 4927358 PIPE SOCKET
46 4864080 SCREW CONNECTOR M10X1,25
47 98474305 WASHER Ø10X17 MM SP=2,3
48 4804122 CLIP
49 16979431 NUT M8
