8060SRM33.10A002

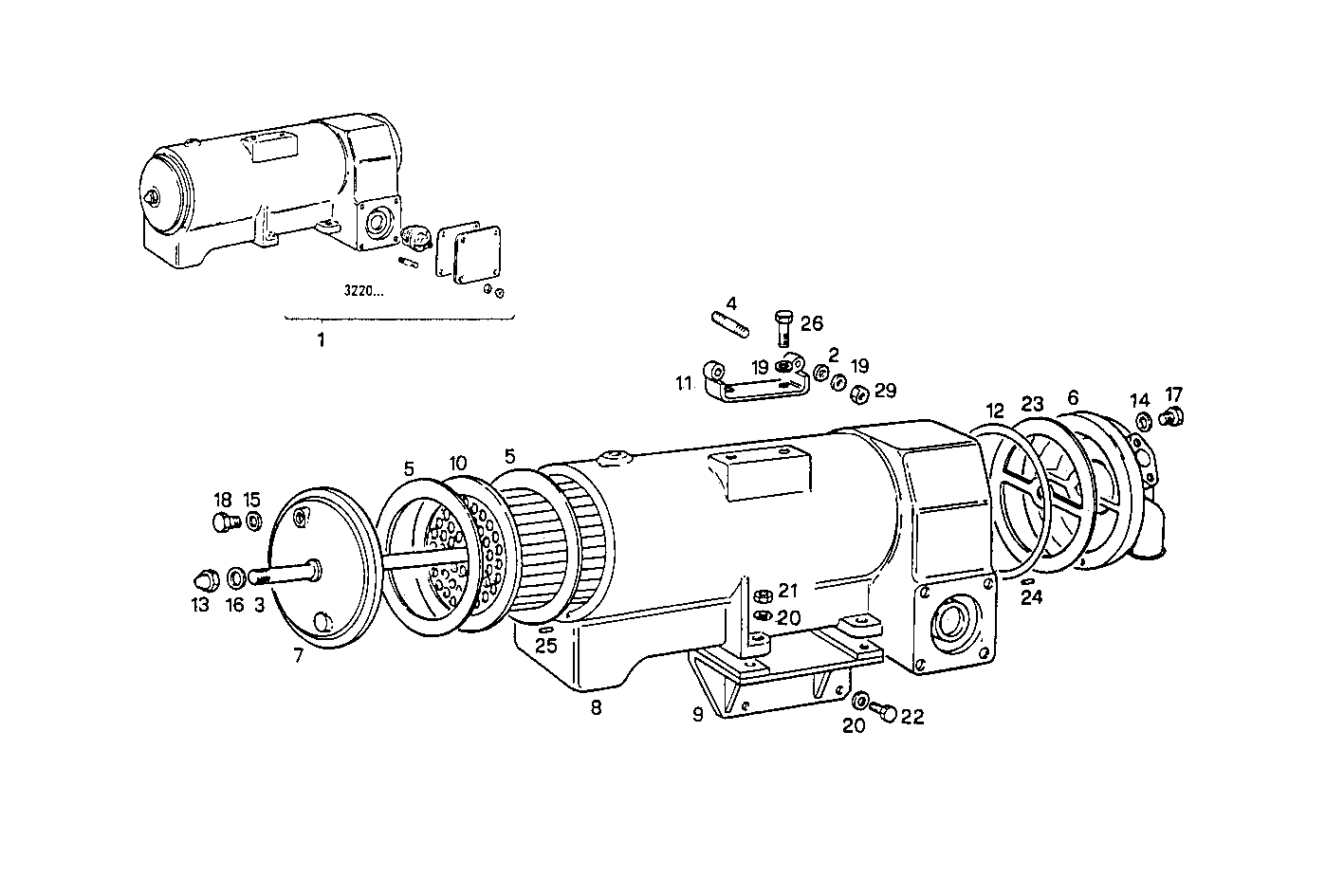

3370.041 FRESH WATER - SEA WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8019069 | HEAT EXCHANGER ASSY |
| 2 | 4930157 | GASKET |
| 3 | 4918908 | TIE ROD |
| 4 | 16665514 | WASHER Ø8 MM |
| 6 | 8005450 | HEAT EXCHANG.COVER REAR |
| 7 | 8005424 | HEAT EXCHANG.COVER FRONT |
| 8 | 8006666 | HEAT EXANGER BODY |
| 9 | 8100252 | SUPPORT |
| 10 | 8014890 | TUBE STACK |
| 11 | 8006075 | RETAINER |
| 12 | 4918846 | O-RING |
| 13 | 14056240 | NUT M12X1,25 |
| 14 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 15 | 4858606 | GASKET Ø10X14X1 MM |
| 16 | 10284460 | SEAL GASKET Ø10X16 MM |
| 17 | 16992440 | THREADED PLUG M16X1,5 |
| 18 | 11903140 | PLUG M10X1,25 |
| 19 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 20 | 17090174 | SPRING WASHER Ø10X20 MM |
| 21 | 17038221 | HEXAGON NUT M10 |
| 22 | 15970524 | HEXAGON BOLT M10X1,25X20 |
| 23 | 4927193 | GASKET |
| 24 | 17253670 | PIN Ø4X14 MM |
| 25 | 17253870 | PIN Ø4X18 MM |
| 26 | 16605424 | SCREW M8X16 MM (8.8) |
| 27 | 13516921 | STUD M8X12X22 MM |
| 28 | 13517630 | STUD M8X1,25X50 MM |
| 29 | 17787327 | HEXAGON NUT |
