8060SRM33.10A002

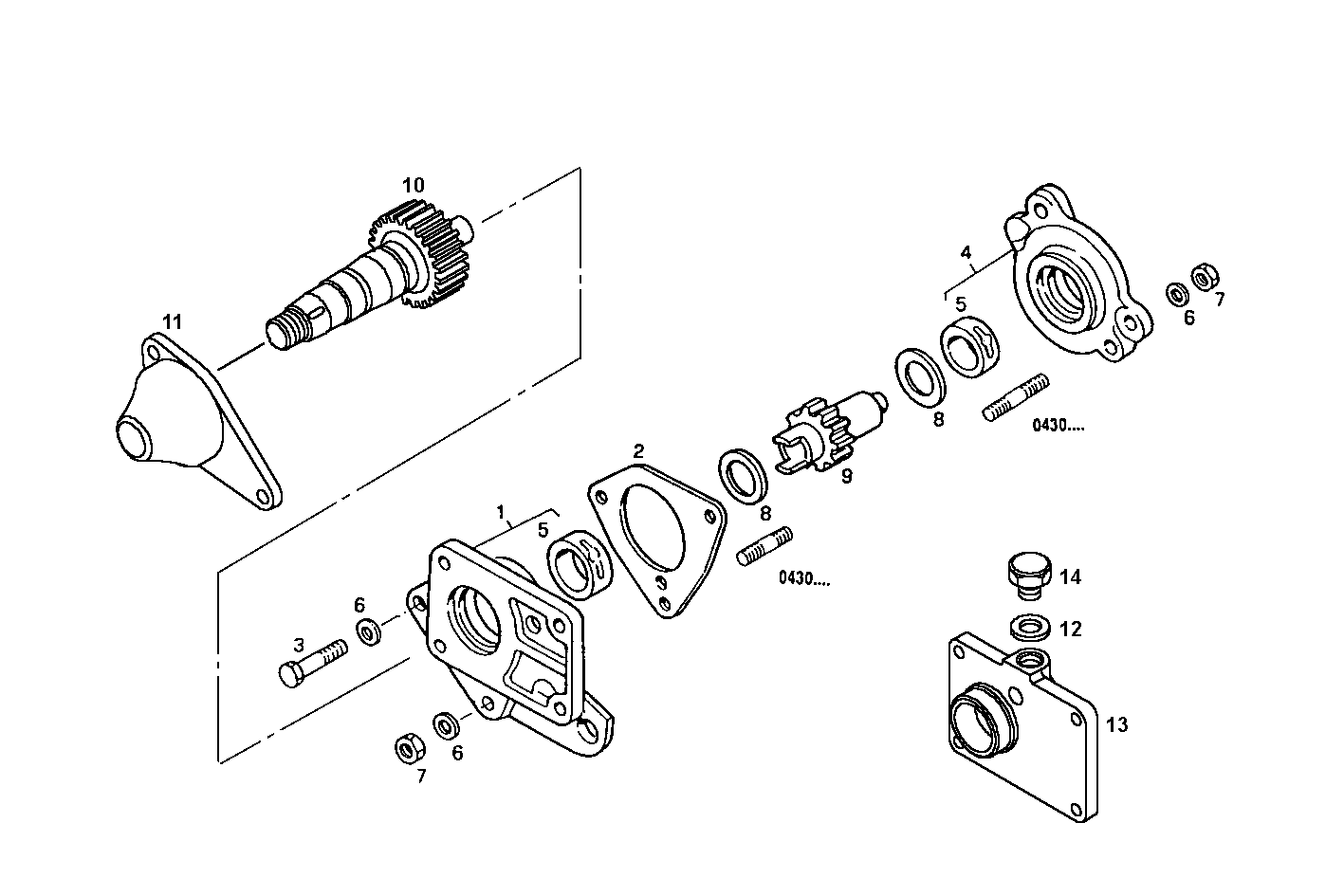

3500.037 POWER TAKE OFF
| Item | Part number | Description |
|---|---|---|
| 1 | 4755239 | SUPPORT ASSY REAR |
| 2 | 4851004 | FLAT ENGINE GASKET |
| 3 | 16606424 | HEXAGON BOLT M8X65 MM |
| 4 | 4769593 | SUPPORT ASSY |
| 5 | 4788087 | BUSH VANDERVELL |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 4667452 | SUPPORT RING |
| 9 | 99474061 | SHAFT |
| 10 | 8020303 | POWER TAKE OFF SHAFT |
| 11 | 4919290 | PROTECTION |
| 12 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 13 | 4607687 | SUPPORT |
| 14 | 16992411 | THREADED PLUG M16X1,5 |
