8061.25.462

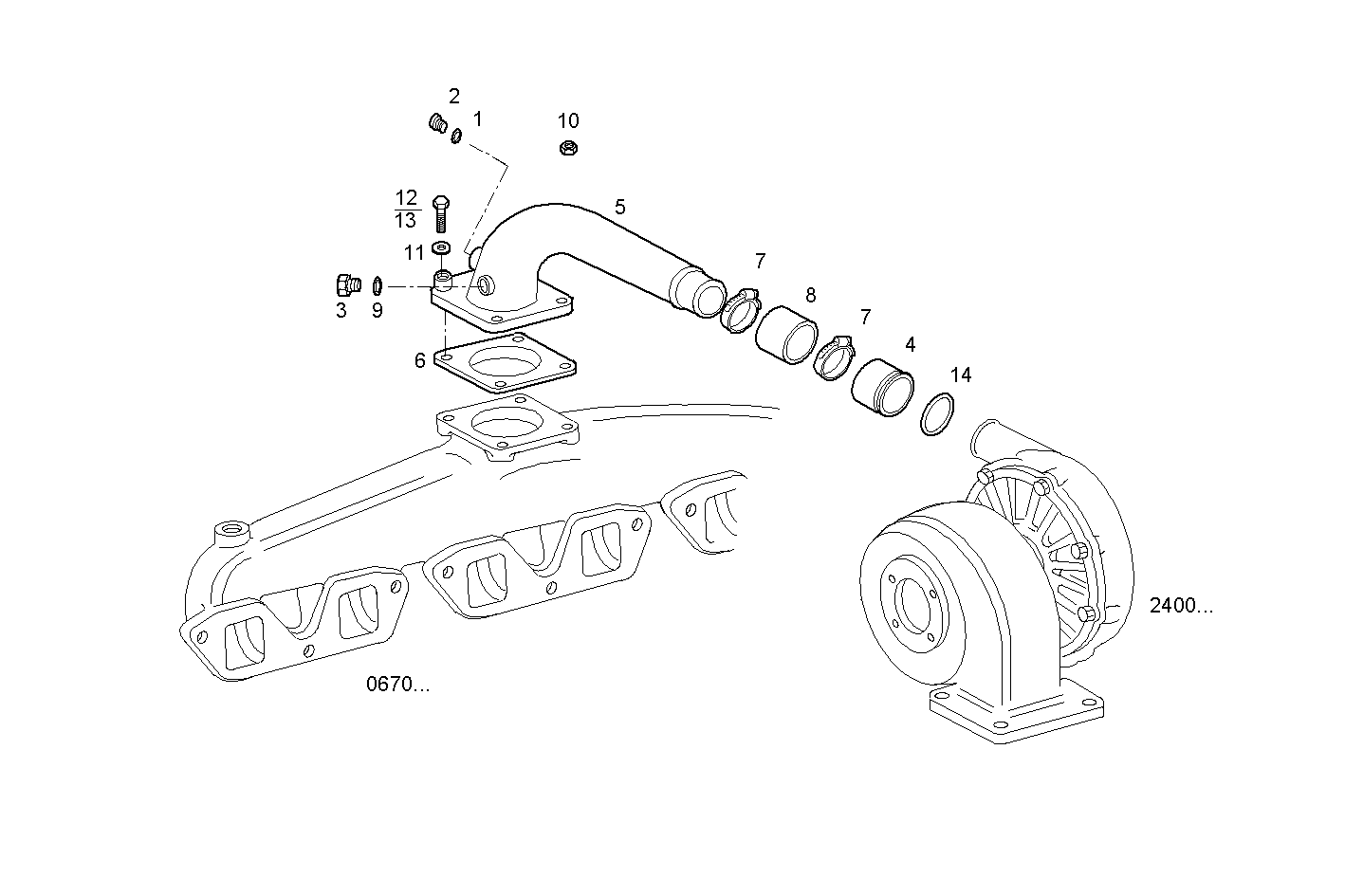

2420.224 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 10260160 | SEAL GASKET Ø10X14 MM SP=1 MM |
| 2 | 11903111 | LOCK PLUG M10X1,25 |
| 3 | 16992671 | PLUG |
| 4 | 504120282 | TURBOCHARGER HOSE |
| 5 | 4754495 | INTAKE ELBOW |
| 6 | 98400790 | FLAT ENGINE GASKET |
| 7 | 17764991 | CLIP Ø50/70 MM |
| 8 | 99444733 | RUBBER SLEEVE |
| 9 | 10279560 | SEAL GASKET Ø22,2 MM |
| 10 | 17037925 | HEXAGON NUT M8X1,25 |
| 11 | 17094914 | WASHER 8x16 |
| 12 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 13 | 16605824 | HEXAGON BOLT M8X35 MM |
| 14 | 17295681 | O-RING |
