8061.25.462

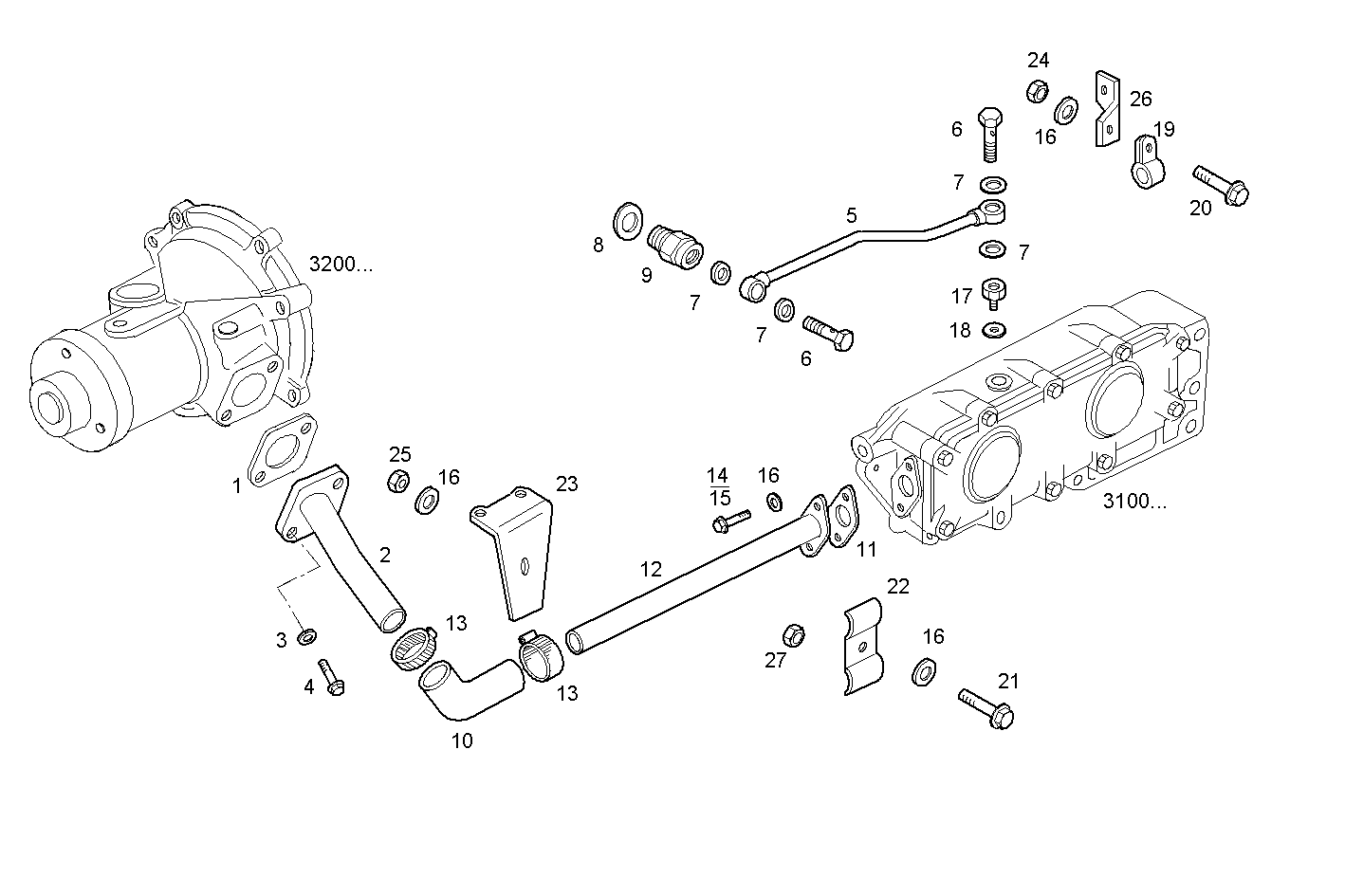

3210.304 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4852556 FLAT ENGINE GASKET
2 500329882 WATER PIPE
3 17094914 WASHER 8x16
4 98401723 HEXAGON BOLT M8X1,25X12 MM
5 98445356 WATER PIPE
6 4864080 SCREW CONNECTOR M10X1,25
7 10284460 SEAL GASKET Ø10X16 MM
8 16508460 WASHER 22x27x1,5
9 98445134 THREADED UNION SP=7 MM
10 500331119 WATER HOSE
11 8021305 GASKET
12 500326779 WATER PIPE
13 17764892 PIPE CLIP Ø40-60 MM
14 16606424 HEXAGON BOLT M8X65 MM
15 16605624 HEXAGON BOLT M8X25 MM (8.8)
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 98446813 THREADED UNION
18 4858609 WASHER Ø16X22 MM SP=1,5 MM
19 17316190 PIPE CLIP Ø6 MM
20 16605424 SCREW M8X16 MM (8.8)
21 16606224 HEXAGON BOLT M8X55 MM
22 4801128 RETAINER
23 500329889 RETAINER
24 17042531 HEXAGON NUT M8
25 500322677 HEXAGON NUT M8
26 4795309 RETAINER
27 17037925 HEXAGON NUT M8X1,25
