8061C05.01

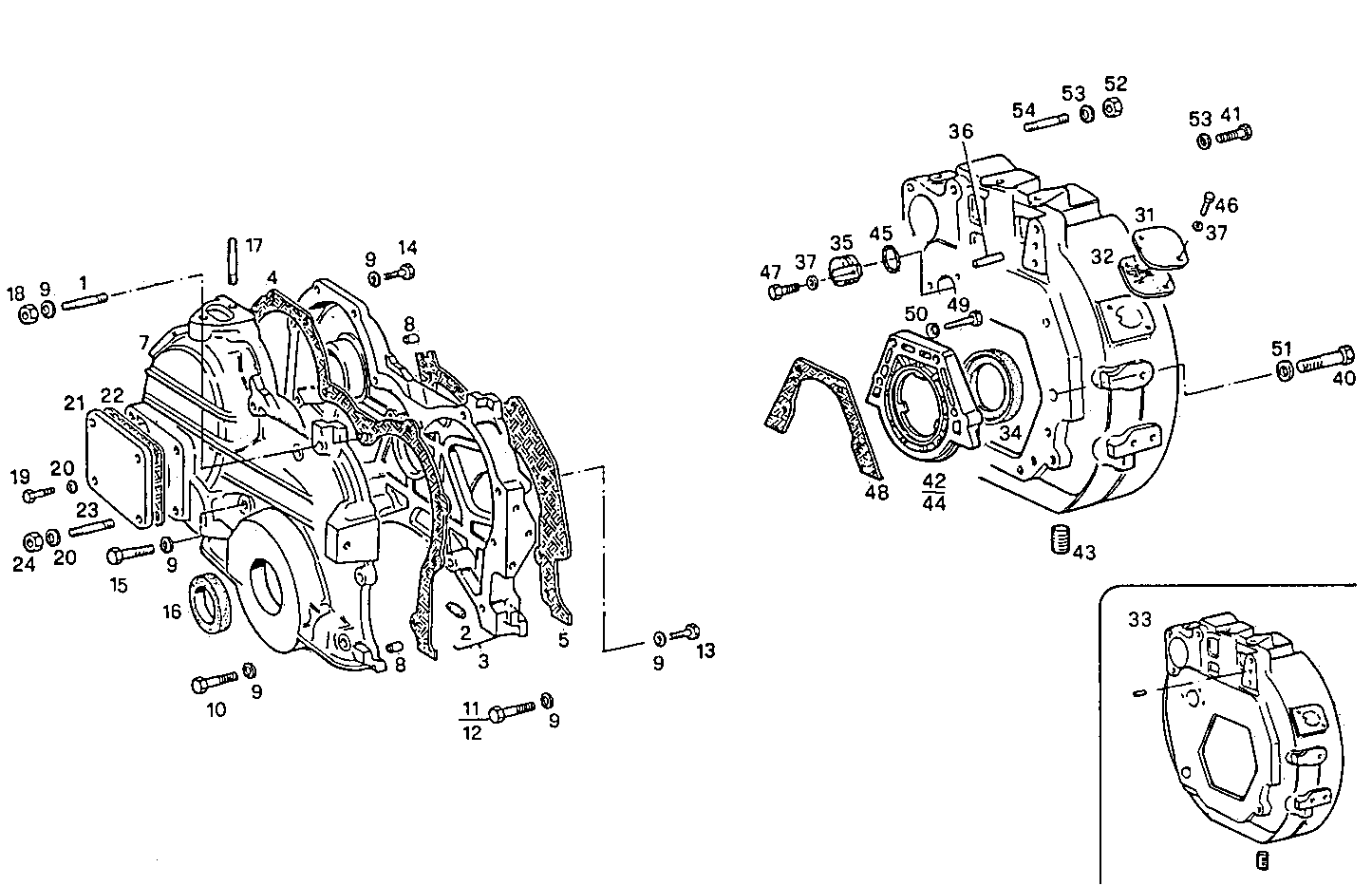

0430.079 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 13543621 STUD M8X16X30 MM
2 4605220 OIL NOZZLE
3 4766126 FRONT C.CASE COVER ASSY
4 98424045 FLAT ENGINE GASKET
5 98424046 FLAT ENGINE GASKET
7 4800486 FRONT C.CASE COVER ASSY [from ...]
8 10839610 DOWEL PIN Ø8 MM
9 17094914 WASHER 8x16
10 16605824 HEXAGON BOLT M8X35 MM
11 16043521 SCREW M8X22
12 16605734 HEXAGON BOLT M8X30 MM
13 16606524 HEXAGON BOLT M8X70 MM
14 16606124 HEXAGON BOLT M8X50 MM
15 16044921 HEXAGON BOLT M8X1,25X85 MM
16 99469265 SHAFT SEAL CORCOS
17 13516821 STUD M8X12X20 MM
18 17037931 HEXAGON NUT M8X1,25
19 16603724 HEXAGON BOLT M6X20 MM (8.8)
20 17088474 WASHER Ø6X12 MM
21 564530 COVER
22 4850986 FLAT ENGINE GASKET
23 4615276 STUD M8X20
24 17037821 HEXAGON NUT M6X1
31 98417985 COVER
32 98417986 FLAT ENGINE GASKET
33 4806862 FLYWHEEL HOUSING ASSY
34 99457401 SHAFT SEAL CORCOS
35 4718740 PLUG
36 17275510 DOWEL PIN Ø10 MM
37 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
38 11198379 SPRING WASHER Ø10X20 MM SP=2,6
39 11200171 SPRING WASHER Ø15 MM
40 11306921 SCREW M10X1,25X30
41 11408321 HEXAGON BOLT M14X1,5X35 MM [up to ...]
42 17038821 HEXAGON NUT M14
43 16998011 PLUG M35X1,5
44 98489586 REAR C.CASE COVER
45 17289281 O-RING Ø34,5 MM SP=3,53 MM
47 16605424 SCREW M8X16 MM (8.8)
48 4849994 FLAT ENGINE GASKET
51 17090274 WASHER Ø10X20 MM
52 17038721 NUT M14X2 [from ...]
53 17091974 SPRING WASHER Ø14X32 MM SP=3,4 MM
54 16735724 STUD M14X20X55 [from ...]
