8061C05.01

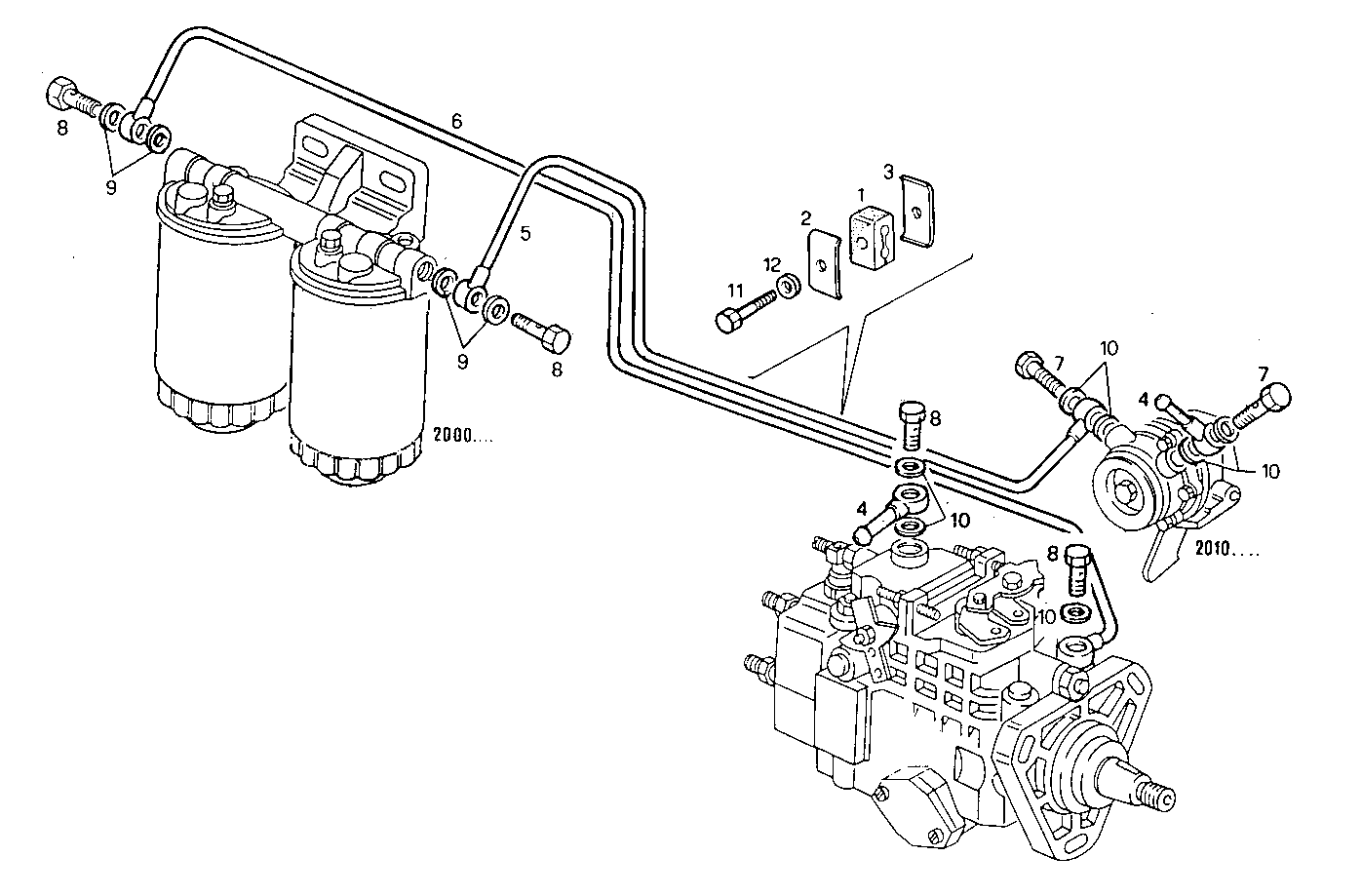

2030.081 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4659217 | DOWEL |
| 2 | 4659218 | CLIP |
| 3 | 4659219 | PLATE |
| 4 | 98416591 | SWIVEL COUPLING |
| 5 | 98419940 | FUEL LINE |
| 6 | 98419873 | FUEL LINE |
| 7 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 8 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 9 | 98474308 | SEAL GASKET Ø14X22 MM |
| 10 | 4858606 | GASKET Ø10X14X1 MM |
| 11 | 10978221 | HEXAGON BOLT M5X25 MM |
| 12 | 11195470 | SPRING WASHER Ø5,3 MM |
