8061C05.01

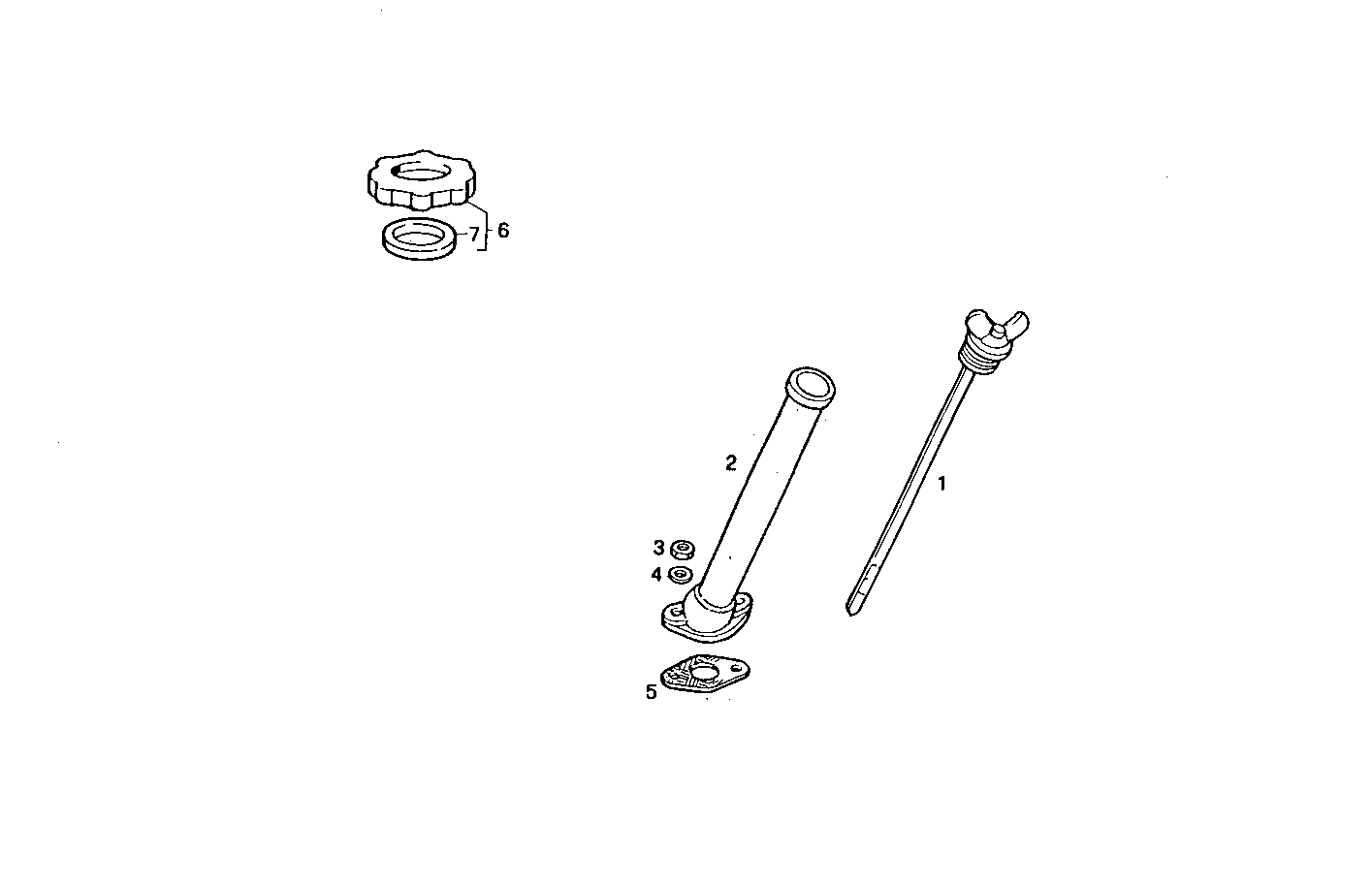

2710.044 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 8104382 | OIL DIPSTICK |
| 2 | 8106663 | OIL LINE |
| 3 | 17037931 | HEXAGON NUT M8X1,25 |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 4852556 | FLAT ENGINE GASKET |
| 6 | 4232606 | OIL FILLER PLUG ASSY |
| 7 | 98418978 | GASKET |
