8061C05.01

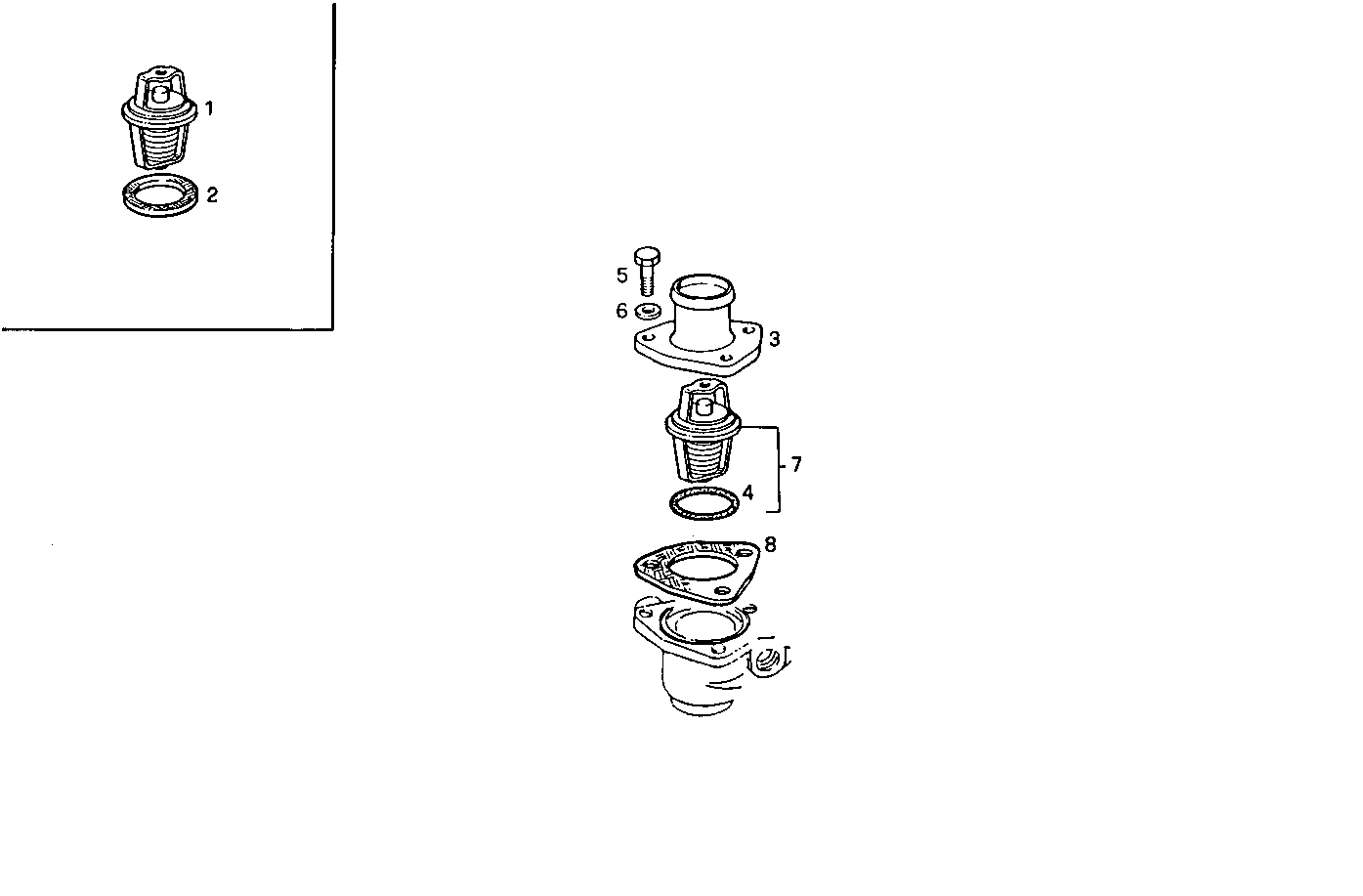

3220.050 THERMOSTAT
| Item | Part number | Description |
|---|---|---|
| 1 | 4804321 | THERMOSTAT ASSY [up to 545609] |
| 2 | 4807494 | GASKET |
| 3 | 4767569 | THERM.BODY COVER |
| 4 | 98465113 | O-RING Ø60 MM |
| 5 | 16043821 | HEXAGON BOLT M8X30 MM |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 98432310 | THERMOSTAT ASSY |
| 8 | 98420754 | FLAT ENGINE GASKET SP=0,5 MM |
