8061C05.01

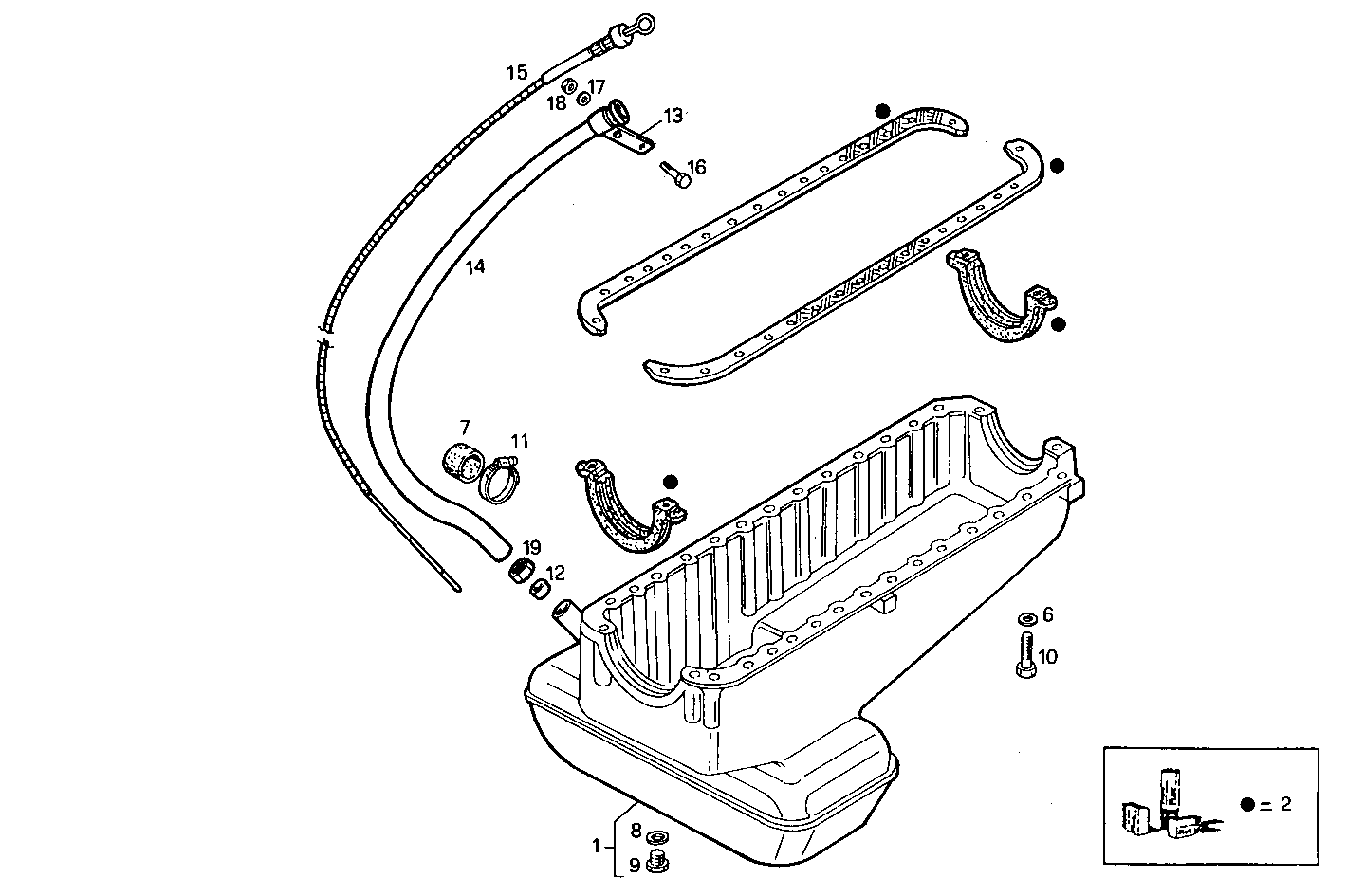

A01000001/01 OIL SUMP - max longitudinal inclination 14°
| Item | Part number | Description |
|---|---|---|
| 1 | 98418325 | OIL SUMP ASSY |
| 2 | 1907561 | KIT-OILSUMP GASKET |
| 6 | 17095007 | WASHER |
| 7 | 4695740 | RUBBER SLEEVE |
| 8 | 16508460 | WASHER 22x27x1,5 |
| 9 | 16992611 | THREADED PLUG M22X1,5 |
| 10 | 10923021 | HEXAGON BOLT |
| 11 | 17764791 | CLIP Ø32/50 MM |
| 12 | 4641221 | RING |
| 13 | 4930515 | CLIP |
| 14 | 8108162 | OIL LEVEL TUBE |
| 15 | 8108163 | OIL DIPSTICK |
| 16 | 10902221 | HEXAGON BOLT M6X16 MM |
| 17 | 17088474 | WASHER Ø6X12 MM |
| 18 | 15896211 | HEXAGON NUT M6 |
| 19 | 4641220 | NUT |
