8061C05.01

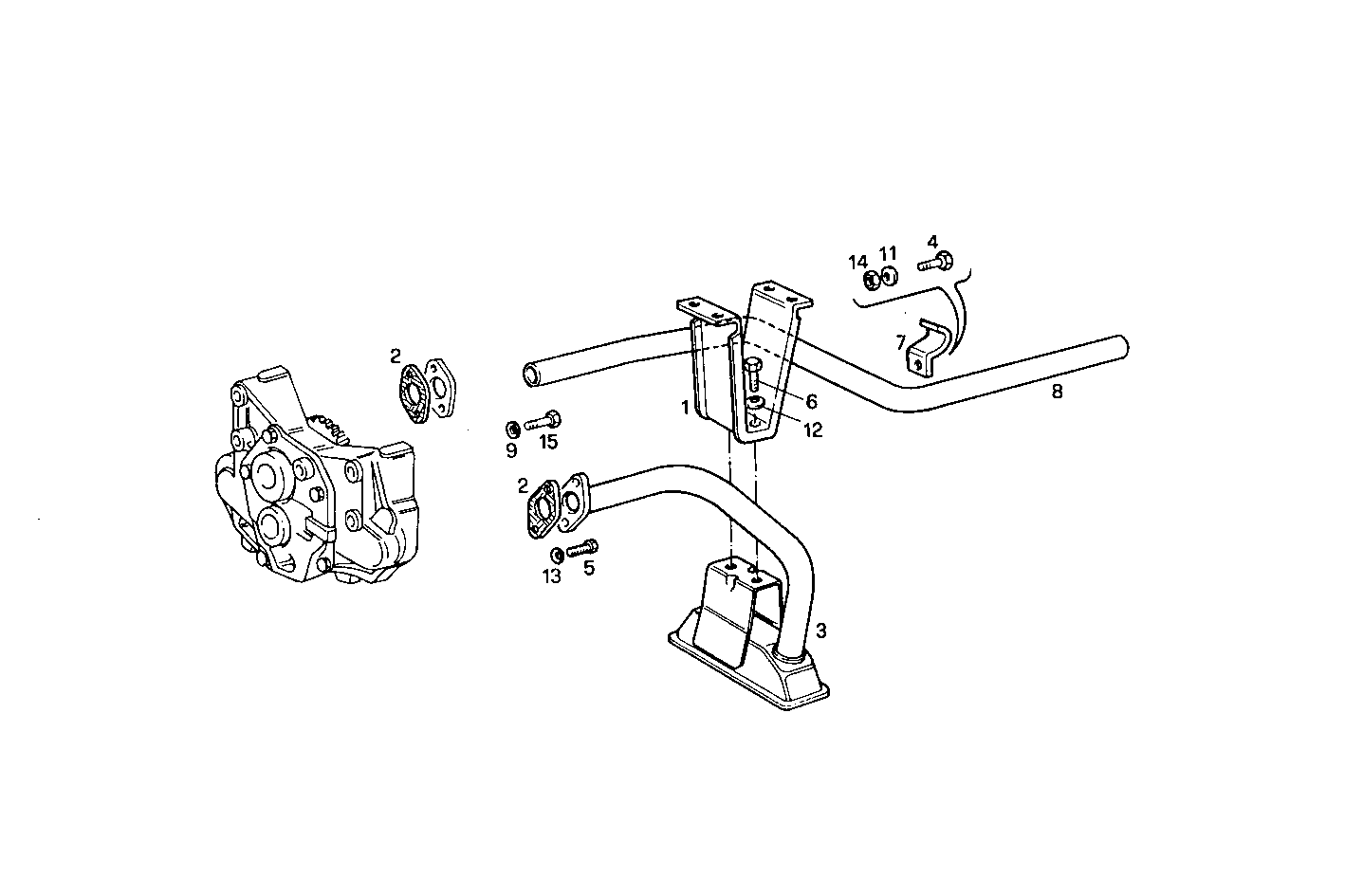

A01000001/02 OIL SUMP - max longitudinal inclination 14°
| Item | Part number | Description |
|---|---|---|
| 1 | 4614106 | FASTENING BRACKET |
| 2 | 4852561 | FLAT ENGINE GASKET |
| 3 | 4780390 | SUCTION STRAINER |
| 4 | 16043224 | SCREW M8X16 MM |
| 5 | 16043524 | SCREW M8X22 MM |
| 6 | 16605424 | SCREW M8X16 MM (8.8) |
| 7 | 98470418 | RETAINER |
| 8 | 4807308 | DELIVERY LINE |
| 9 | 17090274 | WASHER Ø10X20 MM |
| 11 | 10519601 | WASHER Ø8X17 MM |
| 12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 13 | 11193871 | WASHER Ø8X16X1,4 MM |
| 14 | 14048217 | HEXAGON NUT M8 |
| 15 | 16625734 | HEXAGON BOLT M8X35 |
