8061C05.01

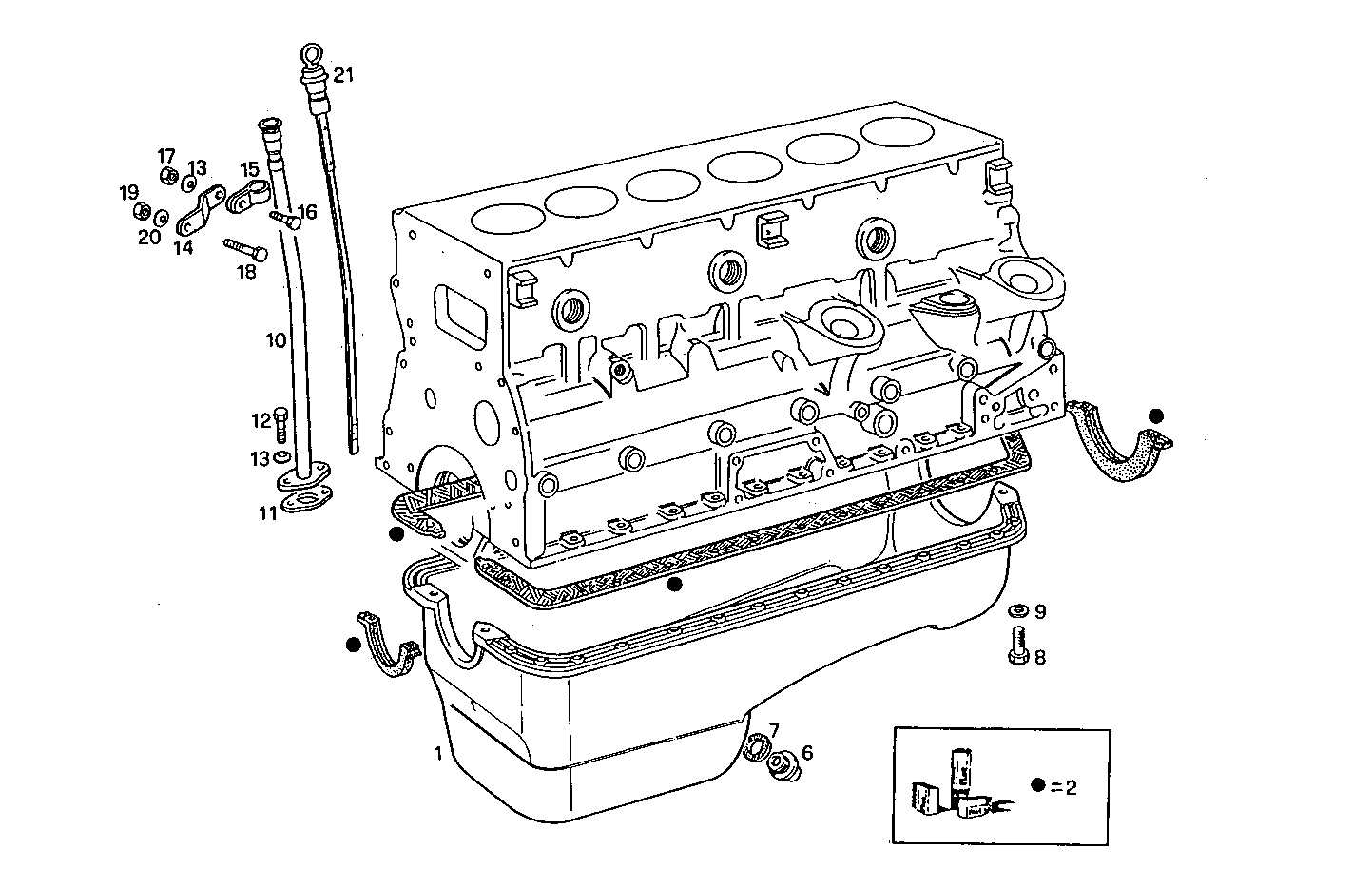

A01050010/01 OIL SUMP - max longitudinal inclination 45�
| Item | Part number | Description |
|---|---|---|
| 1 | 8112361 | OIL SUMP ASSY |
| 2 | 1907561 | KIT-OILSUMP GASKET |
| 6 | 16992611 | THREADED PLUG M22X1,5 |
| 7 | 16508460 | WASHER 22x27x1,5 |
| 8 | 10933021 | SCREW |
| 9 | 17095004 | WASHER �10X18X2 MM |
| 10 | 8112429 | OIL LEVEL TUBE |
| 11 | 98401052 | FLAT ENGINE GASKET |
| 12 | 16043421 | HEXAGON BOLT M8X20 MM |
| 13 | 17089474 | SPRING WASHER �8X16 MM SP=1,4 MM |
| 14 | 4929562 | RETAINER |
| 15 | 4930515 | CLIP |
| 16 | 16043521 | SCREW M8X22 |
| 17 | 17037931 | HEXAGON NUT M8X1,25 |
| 18 | 10902221 | HEXAGON BOLT M6X16 MM |
| 19 | 15896211 | HEXAGON NUT M6 |
| 20 | 17088474 | WASHER �6X12 MM |
| 21 | 8112430 | OIL DIPSTICK |
