8061C05.01

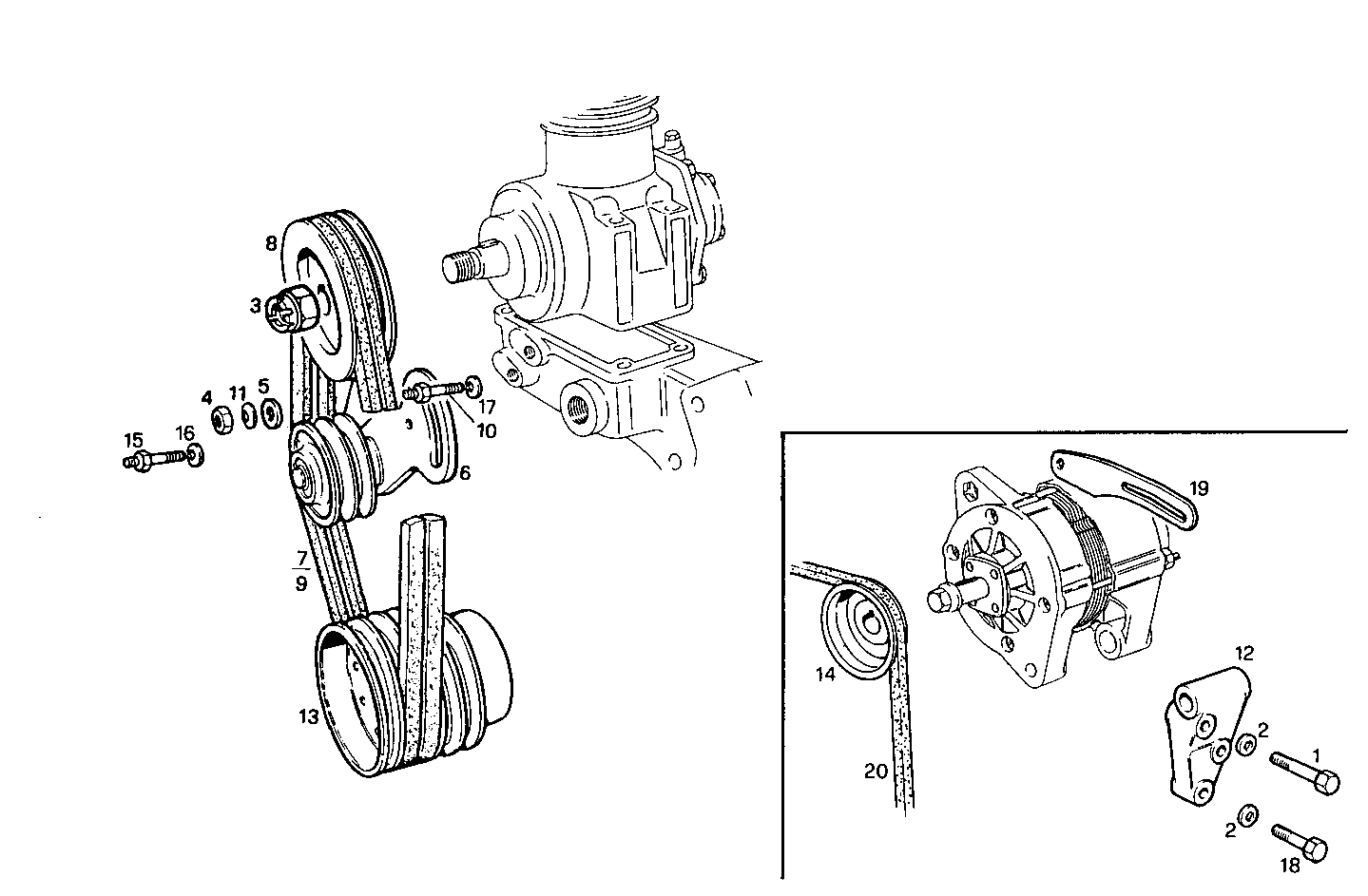

A18020017/02 AIR COMPRESSOR - if hydraulic pump not fitted - 165cc
| Item | Part number | Description |
|---|---|---|
| 1 | 16044321 | HEXAGON BOLT M8X1,25X55 MM |
| 2 | 17089474 | SPRING WASHER �8X16 MM SP=1,4 MM |
| 3 | 13598411 | CASTLE NUT M18X1,5 |
| 4 | 17038221 | HEXAGON NUT M10 |
| 5 | 759850 | WASHER �10X21X2 MM |
| 6 | 4803462 | BELT TENSIONER ASSY |
| 7 | 4803429 | SET OF V-BELTS KIT |
| 8 | 4803401 | PULLEY |
| 9 | 4803428 | V-BELT |
| 10 | 13449421 | STUD |
| 11 | 17090274 | WASHER �10X20 MM |
| 12 | 4797035 | GENERATOR SUPPORT |
| 13 | 8104952 | PULLEY |
| 14 | 4808603 | GENERATOR PULLEY |
| 15 | 4811843 | STUD |
| 16 | 17090174 | SPRING WASHER �10X20 MM |
| 17 | 12646801 | WASHER �10,2 MM |
| 18 | 16044221 | HEXAGON BOLT M8X50 MM |
| 19 | 4641651 | TURNBUCKLE |
| 20 | 4803951 | V-BELT |
