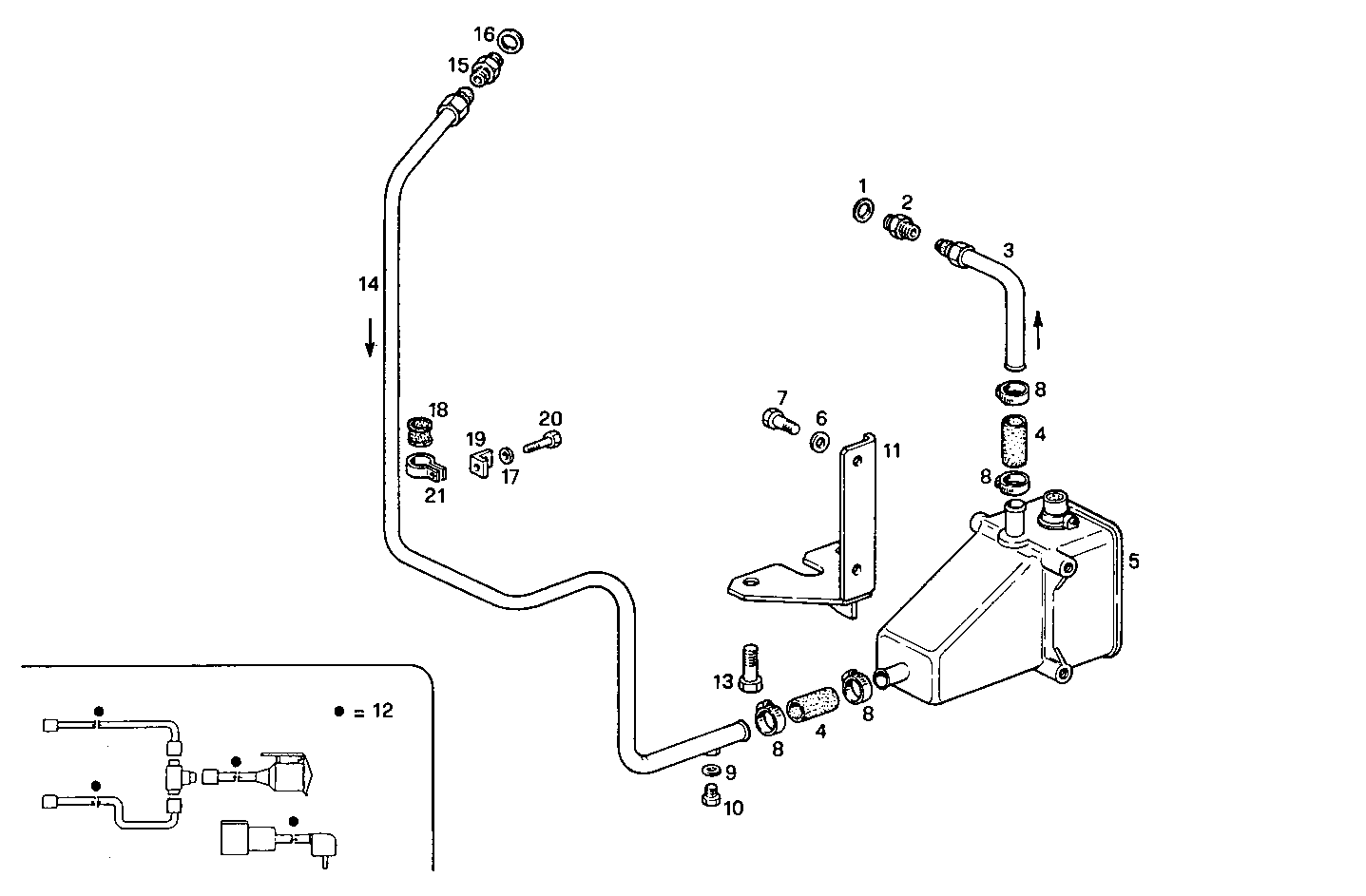

| Item |
Part number |
Description |
|
1 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
|
2 |
4741602 |
THREADED UNION LEFT |
|
3 |
8015108 |
WATER PIPE |
|
4 |
8109346 |
RUBBER SLEEVE |
|
5 |
8008375 |
HEATER 700W |
|
6 |
17088474 |
WASHER Ø6X12 MM |
|
7 |
10902121 |
HEXAGON BOLT M6X14 MM |
|
8 |
17764592 |
CLIP Ø20/32 MM |
|
9 |
4858605 |
WASHER Ø8X12 MM |
|
10 |
10300911 |
PLUG M8 |
|
11 |
8015514 |
RETAINER |
|
12 |
8009376 |
WIRE/CABLE ASSY |
|
13 |
11307024 |
SCREW M10X1,25X40 MM |
|
14 |
8015675 |
WATER PIPE |
|
15 |
4802309 |
PIPE SOCKET |
|
16 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
17 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
18 |
4757122 |
RUBBER PAD |
|
19 |
8112082 |
RETAINER |
|
20 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
21 |
4763804 |
FASTENING BRACKET |
