8061C05.01

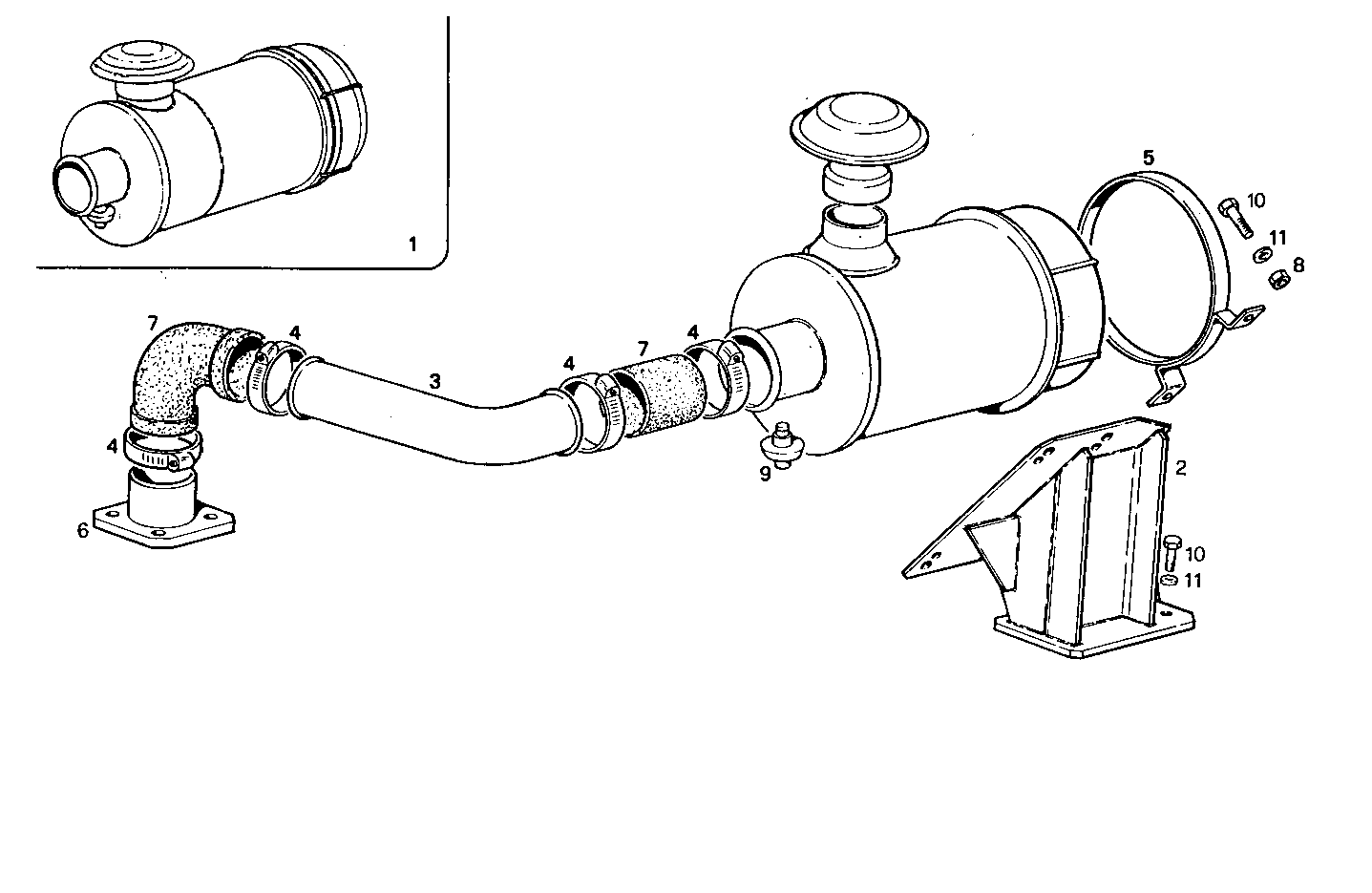

A21170030 DRY AIR CLEANER - with electric clogging gauge
| Item | Part number | Description |
|---|---|---|
| 1 | 8109772 | AIR CLEANER ASSY |
| 2 | 8008125 | SUPPORT |
| 3 | 8111277 | AIR PIPE/DUCT |
| 4 | 17765192 | HOSE CLIP Ø70-90 MM |
| 5 | 8109415 | CLIP |
| 6 | 4936561 | AIR MANIFOLD |
| 7 | 4919166 | FILTER HOSE |
| 8 | 12164711 | HEXAGON NUT M10X1,25 |
| 9 | 4758003 | AIR PRESSURE GAUGE |
| 10 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 11 | 11198371 | SPRING WASHER Ø10X20 MM |
