8061C05.01

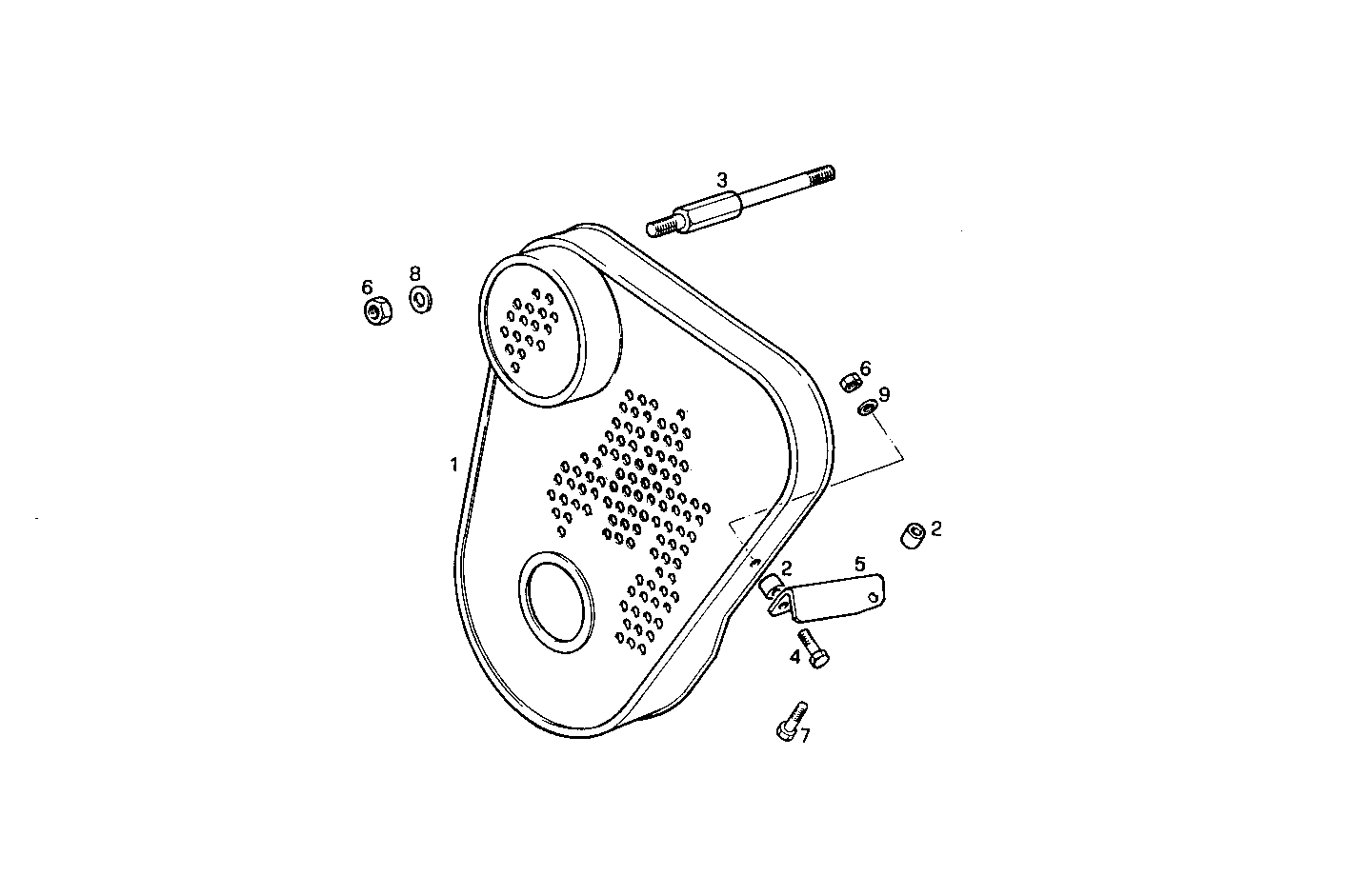

A48020020 GUARD - for pulley/belts
| Item | Part number | Description |
|---|---|---|
| 1 | 8109411 | PROTECTION |
| 2 | 8105618 | SPACING BAR |
| 3 | 8015829 | SPACING BAR |
| 4 | 16605424 | SCREW M8X16 MM (8.8) |
| 5 | 8109407 | RETAINER |
| 6 | 17037931 | HEXAGON NUT M8X1,25 |
| 7 | 16044321 | HEXAGON BOLT M8X1,25X55 MM |
| 8 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
