8061C05.05

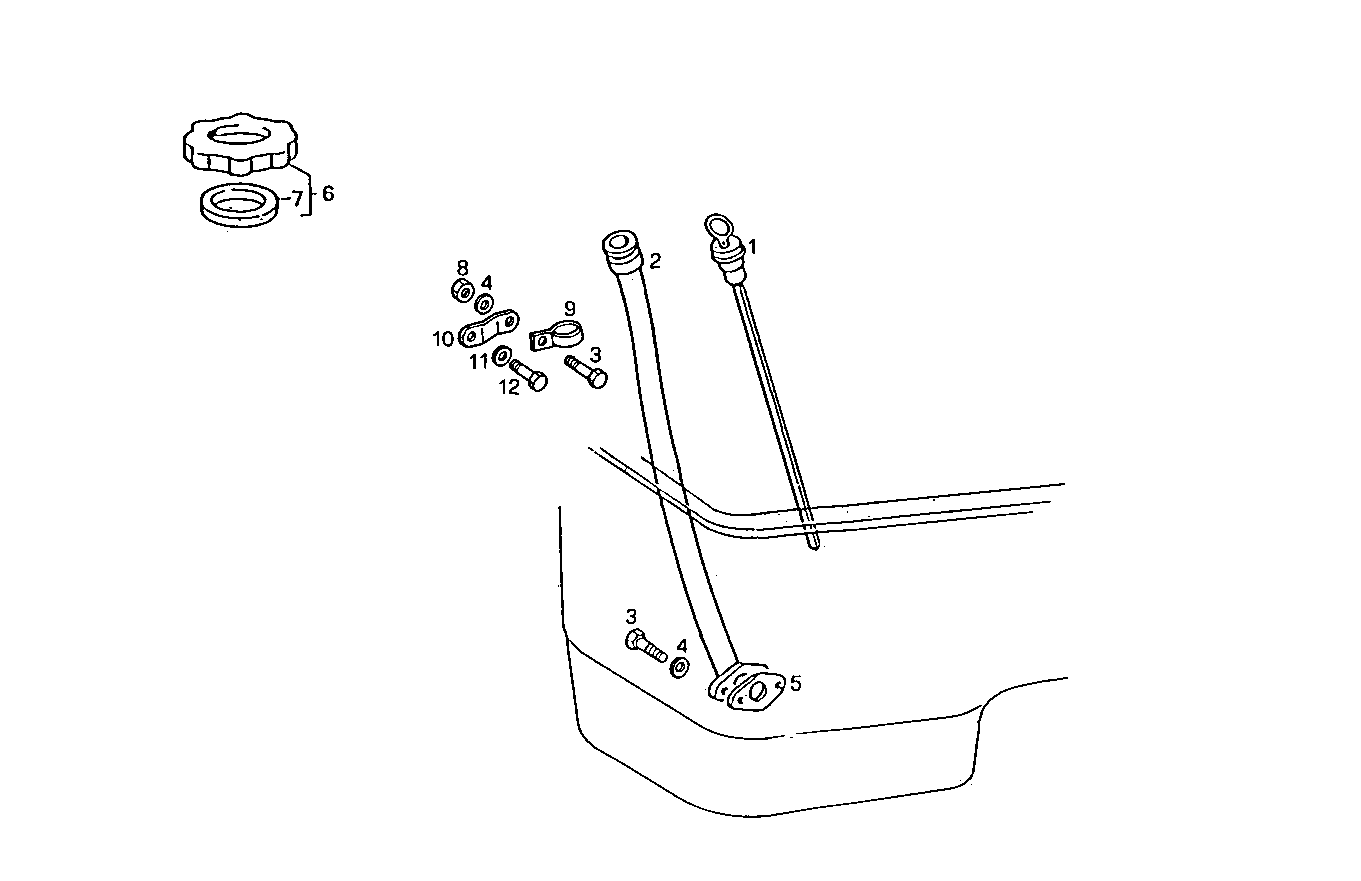

2710.058 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 8024258 | OIL DIPSTICK |
| 2 | 8024206 | ROD GUIDE |
| 3 | 16605524 | HEXAGON BOLT M8X20 MM |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 98401052 | FLAT ENGINE GASKET |
| 6 | 4232606 | OIL FILLER PLUG ASSY |
| 7 | 98418978 | GASKET |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
| 9 | 98437364 | CLIP |
| 10 | 8101336 | RETAINER |
| 11 | 17090174 | SPRING WASHER Ø10X20 MM |
| 12 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
