8061C05.05

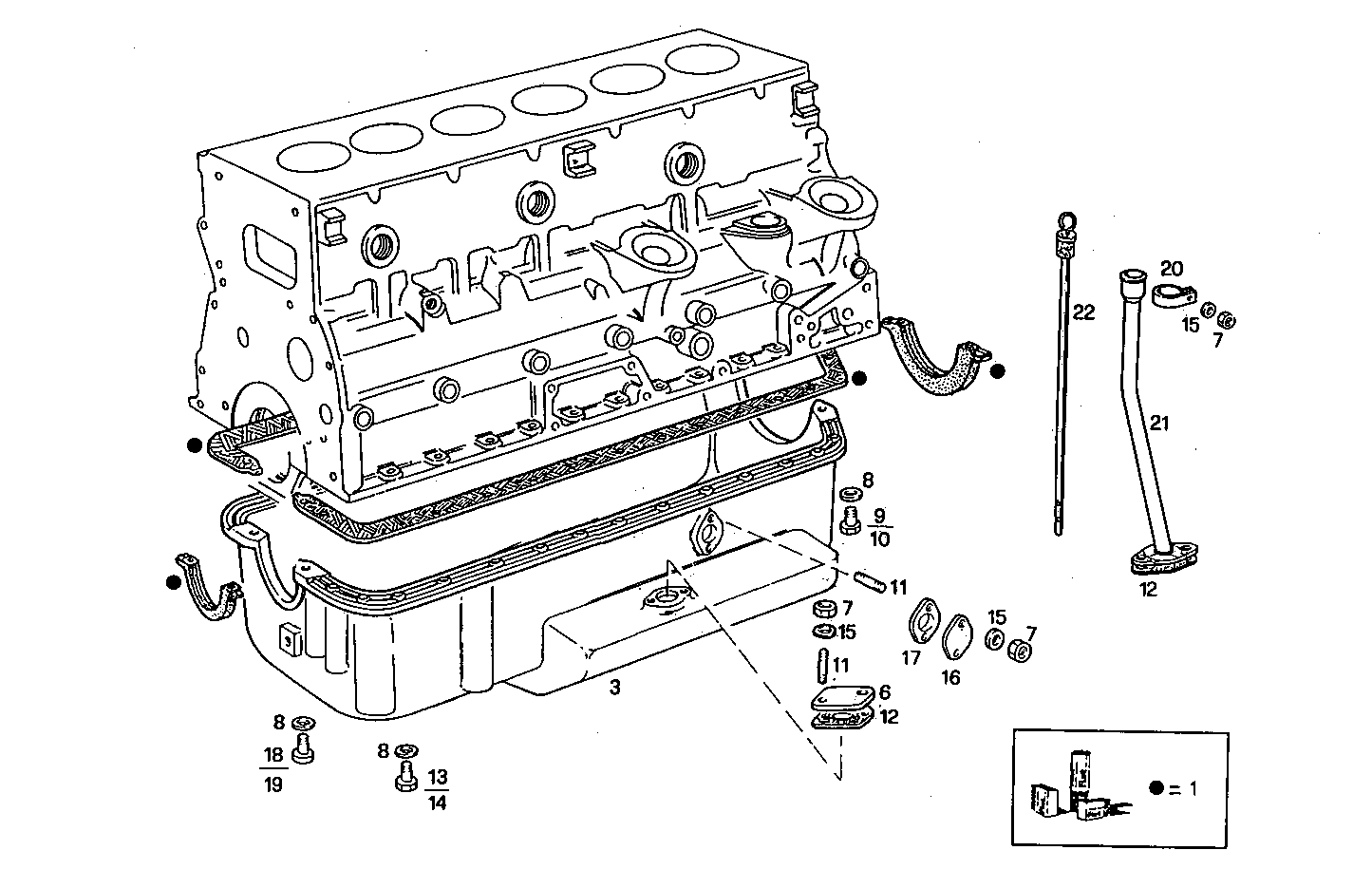

A01010004 OIL SUMP - max longitudinal inclination 17°
| Item | Part number | Description |
|---|---|---|
| 1 | 1907561 | KIT-OILSUMP GASKET |
| 3 | 8018048 | OIL SUMP ASSY |
| 6 | 4798806 | COVER |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 17095004 | WASHER Ø10X18X2 MM |
| 9 | 10923621 | HEXAGON BOLT M10X1,25X35 MM |
| 10 | 99475400 | SCREW M10X1,25X50 |
| 11 | 16744621 | STUD |
| 12 | 98418621 | GASKET |
| 13 | 14308121 | SOCKET-HEAD SCREW |
| 14 | 99475402 | SCREW M10X1,25X70 |
| 15 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 16 | 4798805 | COVER |
| 17 | 98482697 | GASKET |
| 18 | 99475403 | SCREW M10X1,25X130 |
| 19 | 99475401 | SCREW M10X1,25X60 |
| 20 | 8100228 | CLIP |
| 21 | 8106663 | OIL LINE |
| 22 | 8104382 | OIL DIPSTICK |
