8061C05.05

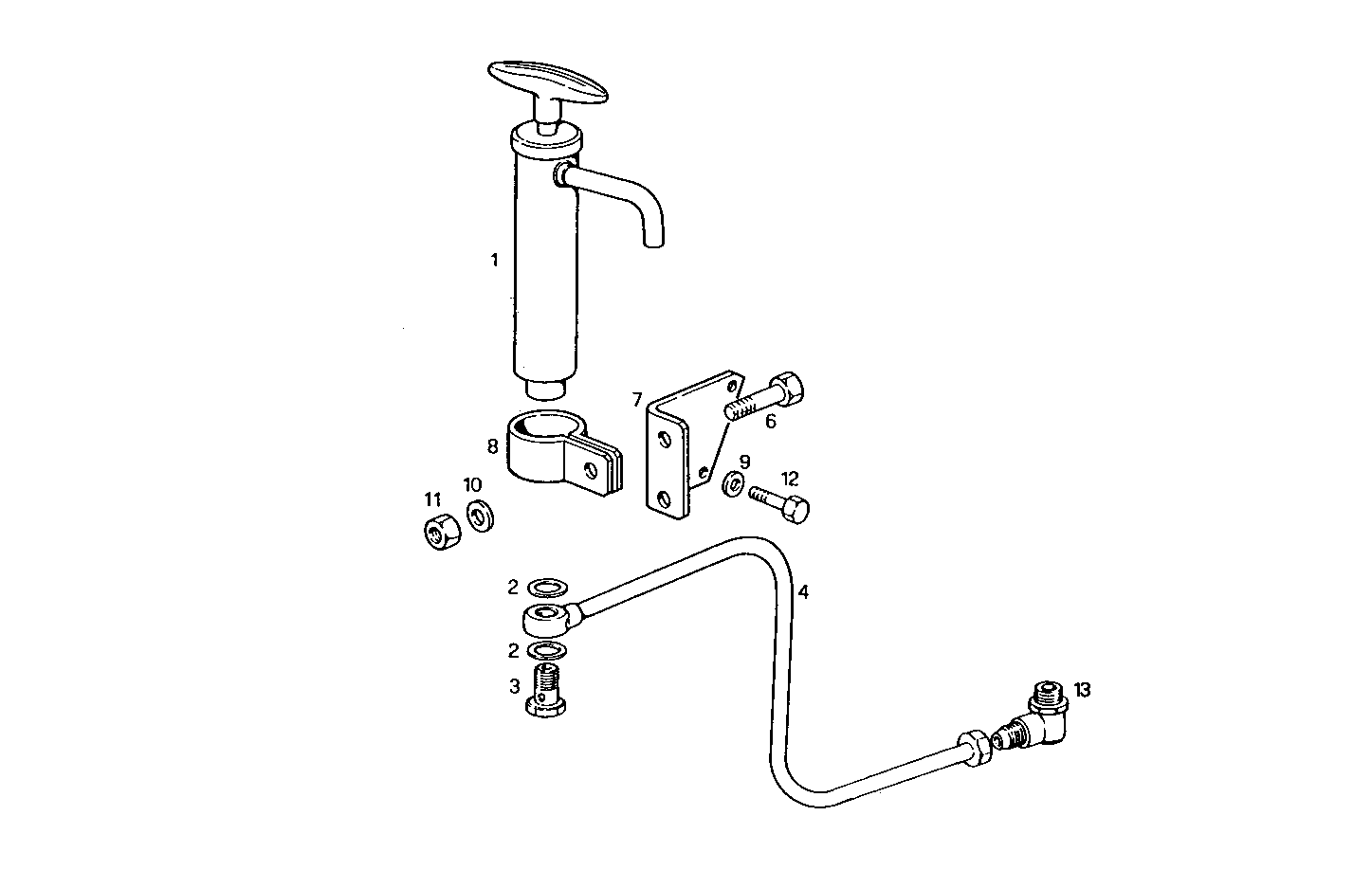

A49010035 OIL DRAIN PUMP - right side
| Item | Part number | Description |
|---|---|---|
| 1 | 8019921 | HAND PUMP |
| 2 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 3 | 4864084 | BANJO BOLT M16X1,5 |
| 4 | 8023144 | OIL HOSE |
| 5 | 4928527 | PIPE SOCKET |
| 6 | 16043421 | HEXAGON BOLT M8X20 MM |
| 7 | 8108253 | RETAINER |
| 8 | 8102910 | CLIP |
| 9 | 17091074 | WASHER Ø12X24X2,8 MM |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 17037931 | HEXAGON NUT M8X1,25 |
| 12 | 16609824 | HEXAGON BOLT M12X1,75X25 MM |
