8061C05.05A001

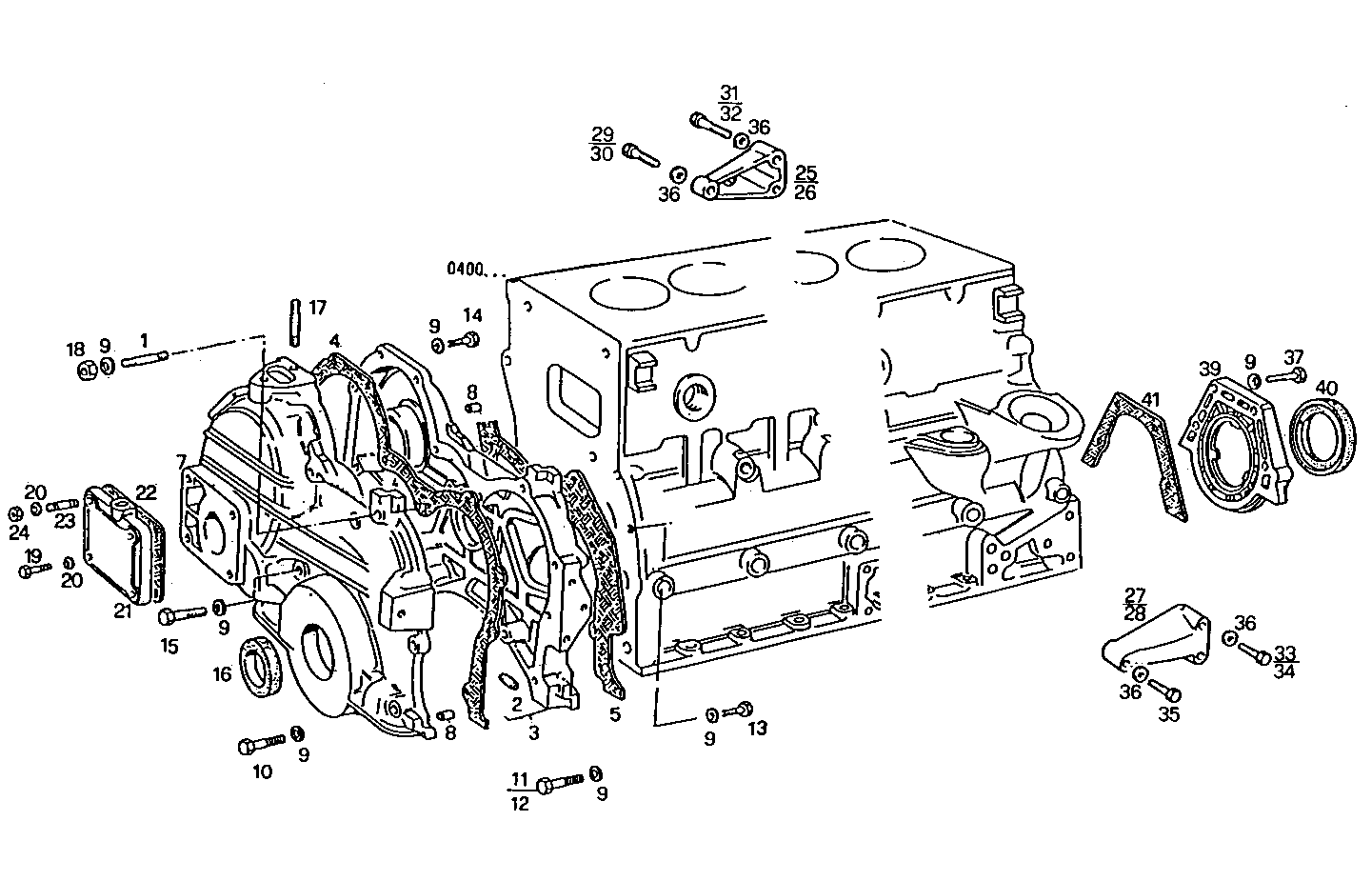

0430.106 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 13543621 STUD M8X16X30 MM
2 4605220 OIL NOZZLE
3 500321670 TIMINGGEAR HOUSIN ASSY REAR
4 98424045 FLAT ENGINE GASKET
5 98424046 FLAT ENGINE GASKET
7 4800486 FRONT C.CASE COVER ASSY [from ...]
8 10839610 DOWEL PIN Ø8 MM
9 17094914 WASHER 8x16
10 16605824 HEXAGON BOLT M8X35 MM
11 16043521 SCREW M8X22
12 16605734 HEXAGON BOLT M8X30 MM
13 16606524 HEXAGON BOLT M8X70 MM
14 16606124 HEXAGON BOLT M8X50 MM
15 16044921 HEXAGON BOLT M8X1,25X85 MM
16 99469265 SHAFT SEAL CORCOS
17 13516821 STUD M8X12X20 MM
18 17037931 HEXAGON NUT M8X1,25
19 16603824 SCREW M6X25
20 17088474 WASHER Ø6X12 MM
21 4765622 COVER
22 4850986 FLAT ENGINE GASKET
23 4615276 STUD M8X20
24 17037821 HEXAGON NUT M6X1
25 4601988 BRACKET RIGHT [up to 565948]
26 4853971 BRACKET RIGHT
27 4776413 BRACKET LEFT [up to 565948]
28 4852643 BRACKET LEFT [from 565949]
29 15541821 HEXAGON BOLT M12X1,25X120 MM [up to 565948]
30 16611224 HEXAGON BOLT M12X120 MM
31 15541221 HEXAGON BOLT M12X1,25X70 MM [up to 565948]
32 16610724 SCREW M12X1,75X70 MM
33 15541521 SCREW M12X1.25X90 [up to 565948]
34 16610924 HEXAGON BOLT M12X90 MM
35 15540821 HEXAGON BOLT M12X1,25X50 MM
36 17095304 WASHER Ø12X24 MM
39 98489586 REAR C.CASE COVER
40 99457401 SHAFT SEAL CORCOS
41 4849994 FLAT ENGINE GASKET
